Home >> Mercedes Benz >> 2008 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Sunroof / Moonroof Track >> Service and Repair >> Procedures >> AP77.20-P-7731A Clean Slide Rails and Slide Blocks For Tilting/Sliding Roof

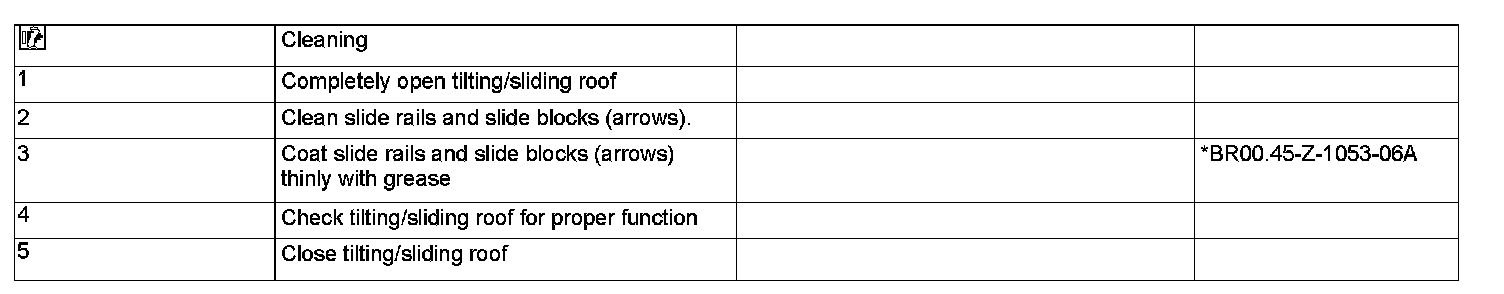

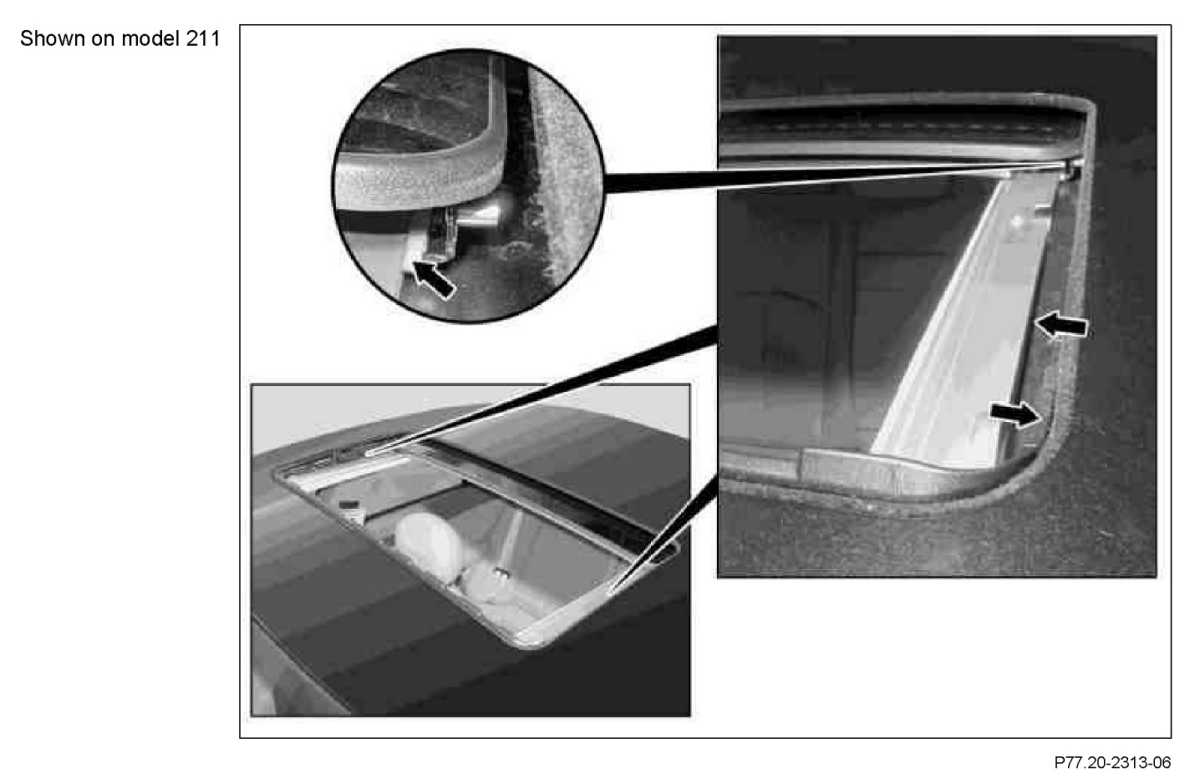

AP77.20-P-7731A Clean Slide Rails and Slide Blocks For Tilting/Sliding Roof



AP77.20-P-7731A Clean Slide Rails and Slide Blocks For Tilting/Sliding Roof
- with CODE (412) Electric tilting/sliding roof
- with CODE (414) Glass electric tilting/sliding roof

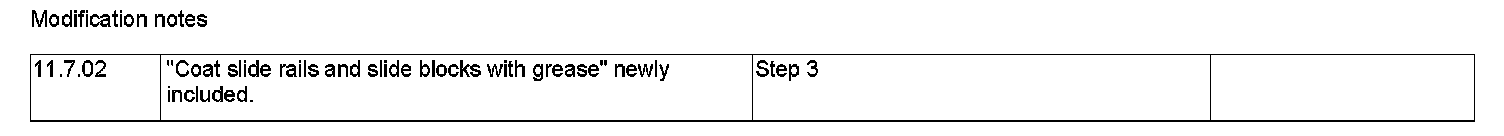

Modification Notes:
