AR77.21-P-0600-01T Cut Rear Glass Roof Out of Panoramic Roof

AR77.21-P-0600-01T Cut Rear Glass Roof Out Of Panoramic Roof*
- with CODE (413) Panoramic glass roof with top sliding roof
- with CODE (419) Solar module for panoramic roof

Special Tool:

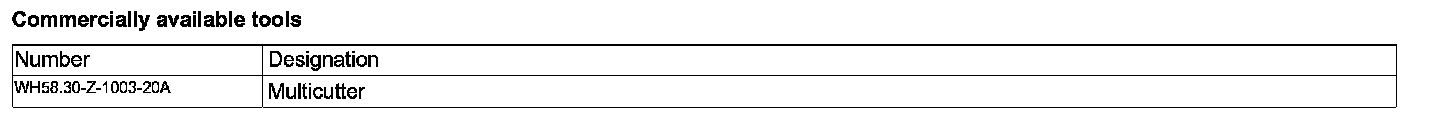

Commercially Available Tools:

1. Press lip (4) on ornamental frame (2) for rear window (3) into gap between rear glass roof (1) and rear window (3).*
2. Cut off ornamental frame (2) on rear glass roof (1) with carpet knife.*

Carpet knife with blade length of approx. 9 mm.*

3. Clamp straight 35 mm long cutting blade into multicutter.*
4. Moisten oil stone and sharpen straight 35 mm long cutting blade on both sides with multicutter switched on.*
5. Cut out rear glass roof (1) in areas "A" from inside.*
6. Cut out rear glass roof (1) in areas "B" from outside.*
7. Clamp cutting blade (50 mm long) into multicutter.*
8. Moisten oil stone and sharpen cutting blade (50 mm long) on both sides with multicutter switched on.*
9. Cut out rear glass roof (1) in area "C" from outside.*

When cutting out in area "C", guide cutting blade (50 mm long) as close as possible along glass roof (1) so that lip on rear window ornamental frame is not damaged.*
