AR77.21-P-0400T Remove/Install Panoramic Roof Drive

AR77.21-P-0400T Remove/Install Panoramic Roof Drive
- with CODE (413) Panoramic sliding roof

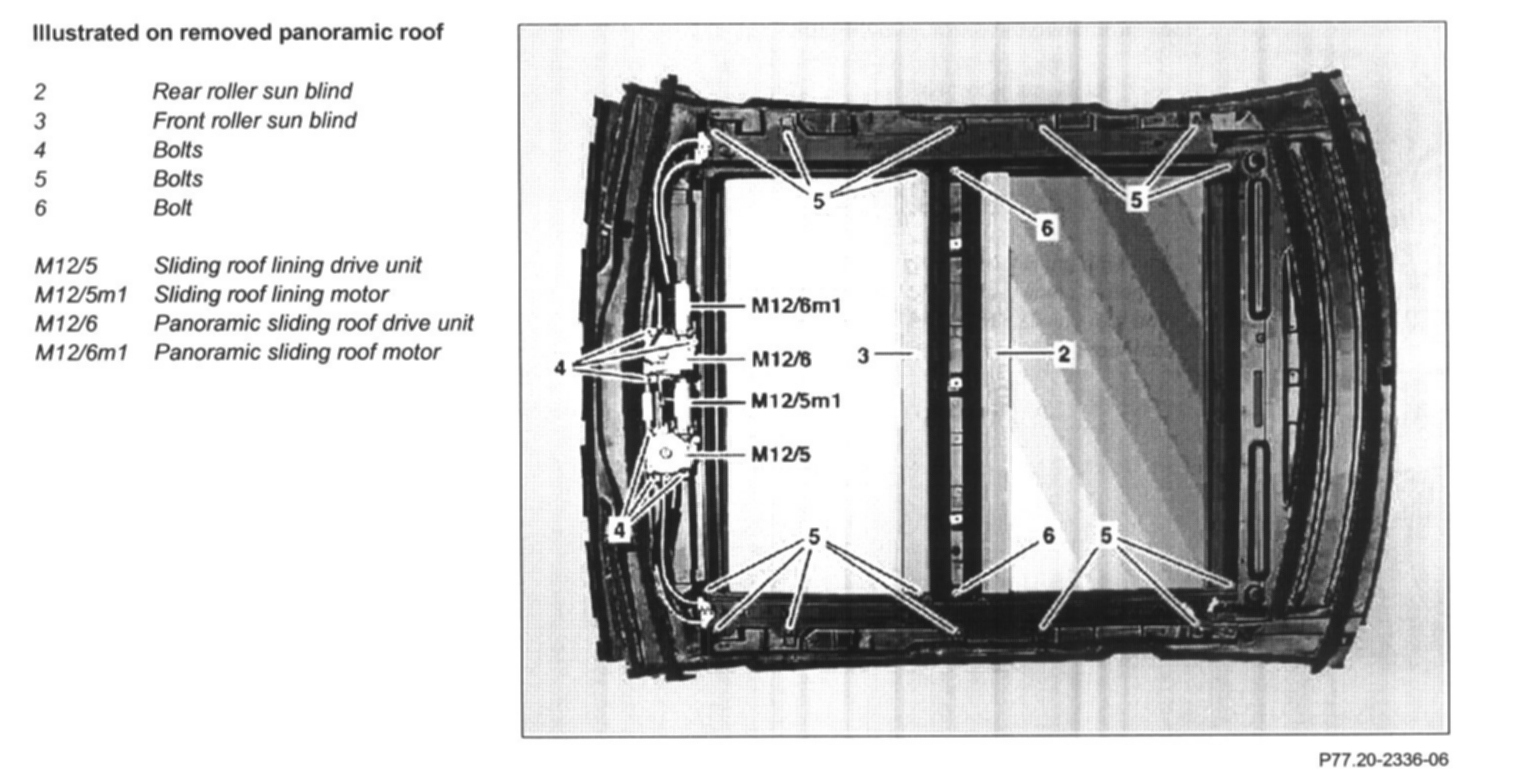

Illustrated On Removed Panoramic Roof:

DANGER:
- Risk of injury to fingers being jammed or squeezed when removing and installing or aligning hoods, doors, trunk lid/tailgate or sliding roof.
- When moving components, ensure that no body parts or limbs are within the operating range of moving parts.

1 Remove front panoramic glass roof
2 Remove front roller sun blind (3) of panoramic roof
3 Remove rear roller sun blind (2) of panoramic roof
4 Remove panoramic sliding roof drive unit (M12/6)
5 Remove sliding roof lining drive unit (M12/5)
6 Unscrew bolts (4, 5, 6)

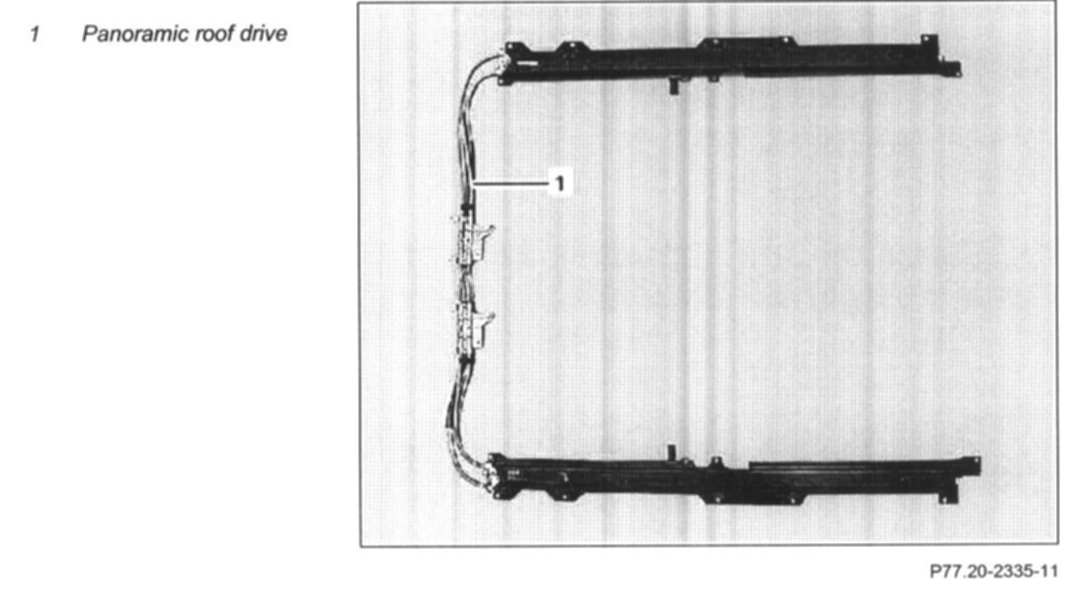

7 Remove panoramic roof drive (1) and take out of vehicle

NOTE: Sun blind couplings can fall out.

8 Take panoramic roof drive (1) into the vehicle and fit on

NOTE: Observe sun blind couplings.

9 Loosely screw in bolts (4, 5, 6)

NOTE: Replace bolts (6).

10 Align panoramic roof drive (1) and tighten bolts (4, 5, 6)
11 Adjust panoramic roof drive (1)
- Screw on sliding roof drive Torx: 4 N.m

See "Special Tools" given below.

12 Install sliding roof lining drive unit (M12/5)
13 Install panoramic sliding roof drive unit (M12/6)
14 Install rear roller sun blind (2) of panoramic roof
15 Install front roller sun blind (3) of panoramic roof
16 Install front panoramic glass roof

Special Tools

Mounting Wedge, P/N # 110 589 03 59 00:
