AR77.20-P-1400T Remove/Install Cable
AR77.20-P-1400T Remove/Install Cable
- with CODE (414) Power glass tilting/sliding roof
Shown On Model 211.0:
1 Remove sliding/pop-up roof panel
2 Remove overhead control panel control module
NOTE: Leave sliding/pop-up roof panel in pop-up position.
3 Remove sliding/pop-up roof motor
NOTE: Installation:Before installing sliding/pop-up roof motor, push pop-up brackets (4) forward as far as the stop.

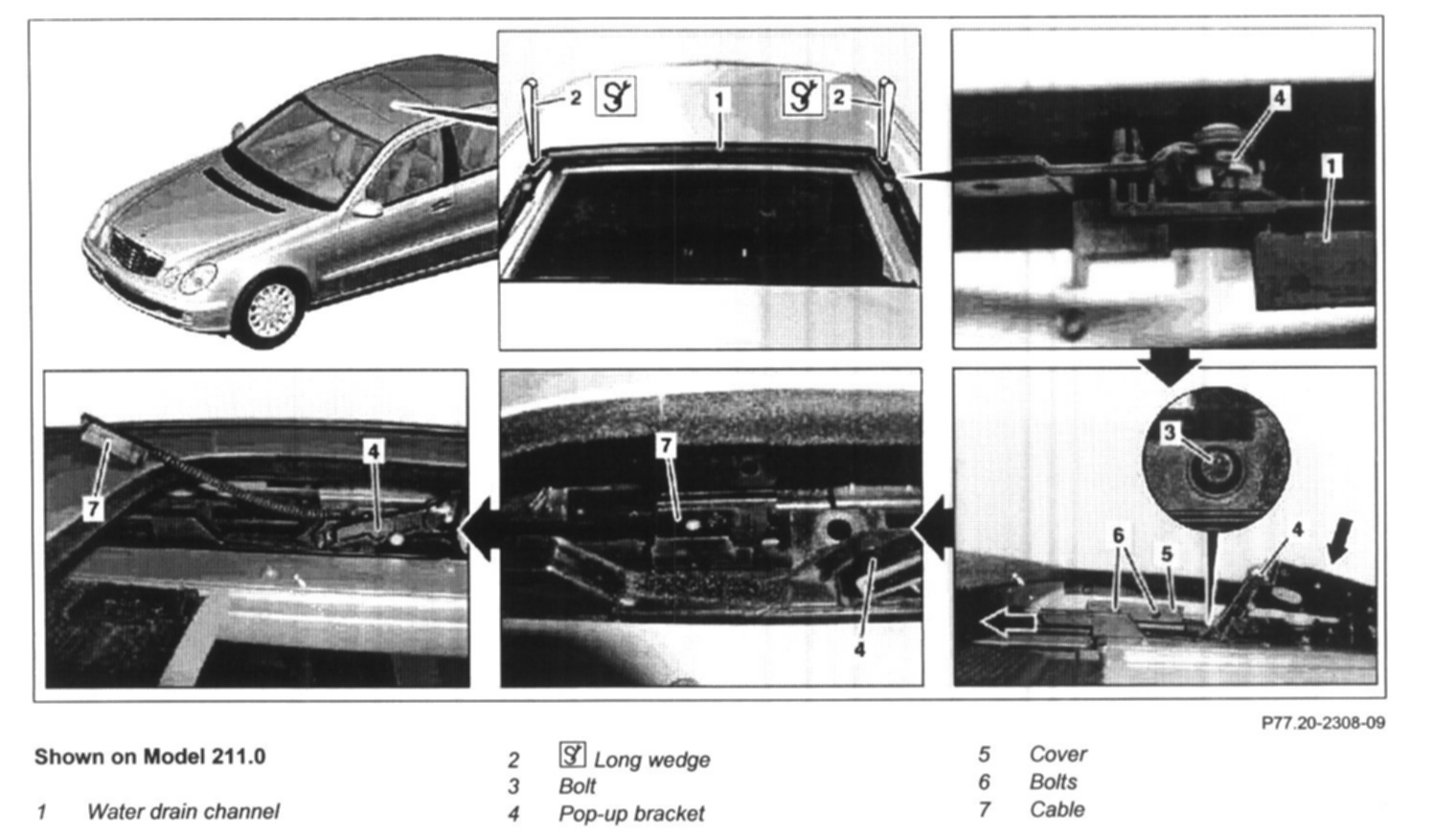

4 Remove water drain channel (1) with long wedge (2)
See "Special Tools" given below.
5 Unscrew bolt (3) on both sides from control cable (7) on pop-up bracket (4)
6 Push pop-up bracket (4) on both sides approx.6 cm toward rear
7 Unscrew bolts (6) on both sides from cover (5), detach cover (5) toward top on both sides
8 Push control cable (7) on both sides approx.10 cm toward rear
9 Remove control cable (7) on both sides from slide rail and pull out toward rear.
CAUTION: Pull out cable (7) carefully, otherwise paintwork could be damaged.
10 Install in the reverse order
