GF98.00-P-4020T Color Range Overview



GF98.00-P-4020T Color Range Overview


Component Identification:





Component Identification:

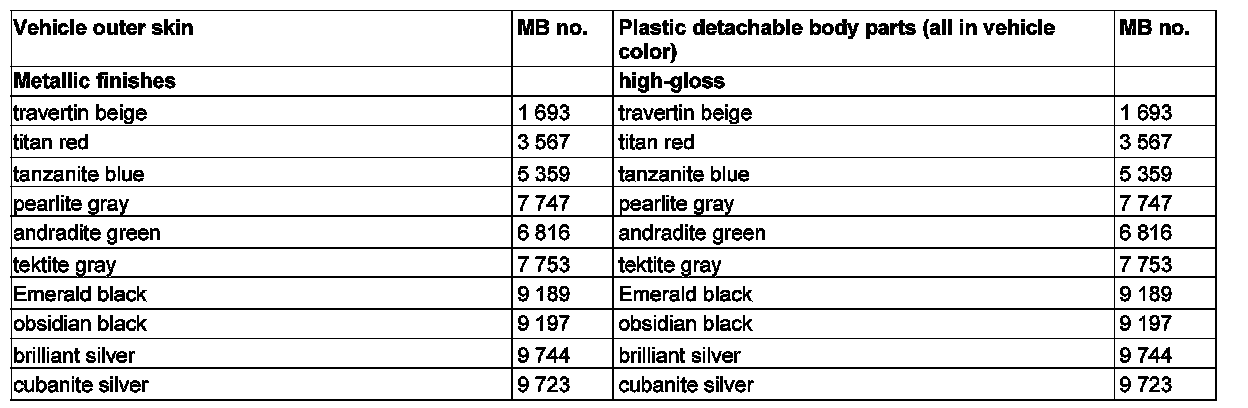

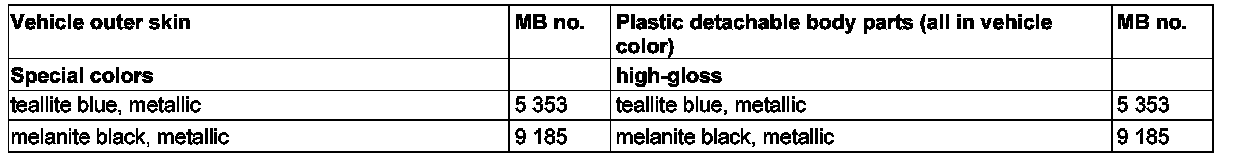

Color collection

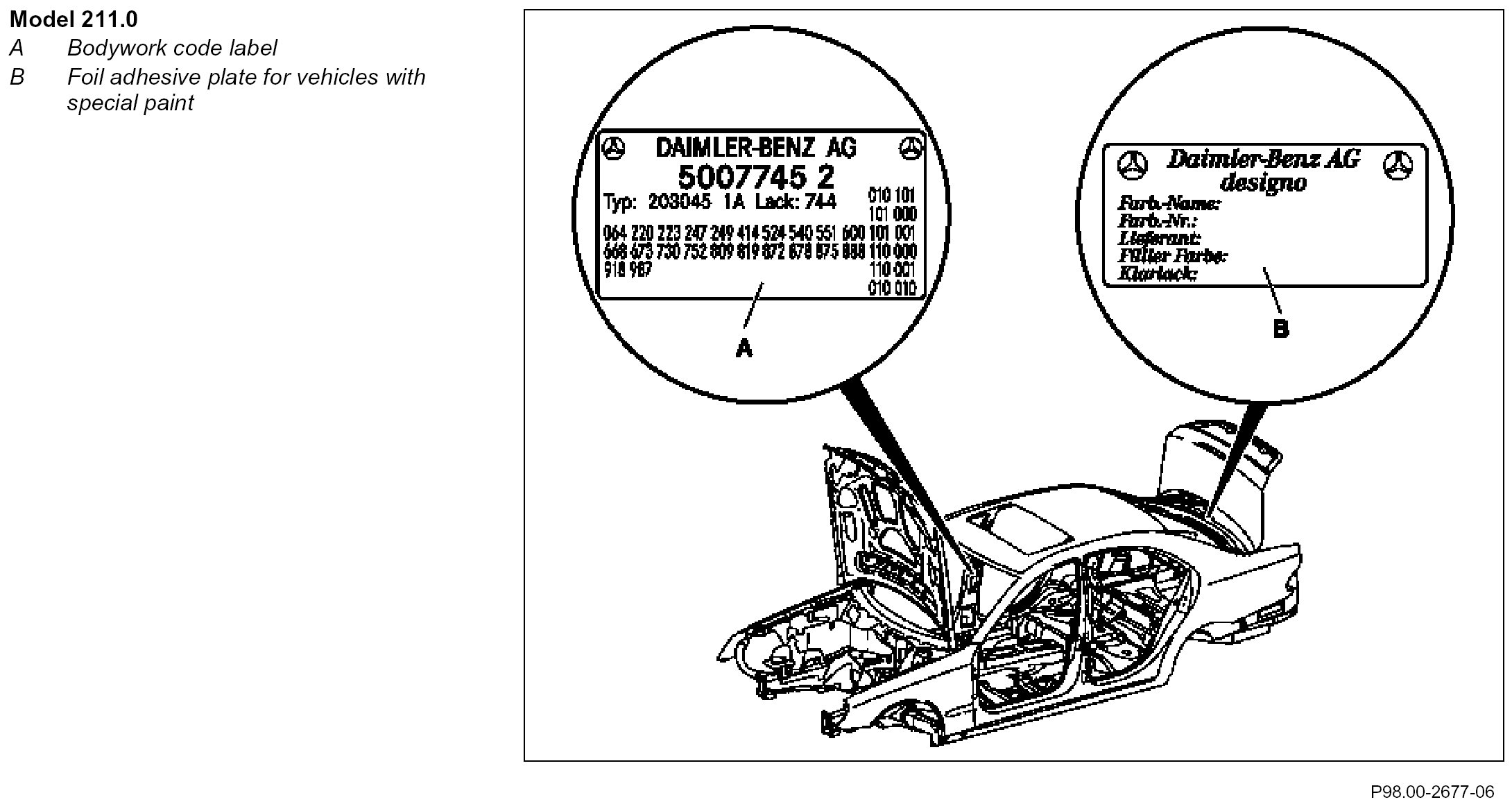

Model 211.0 (E-class as of 3/02)











Avantgrade and Elegance

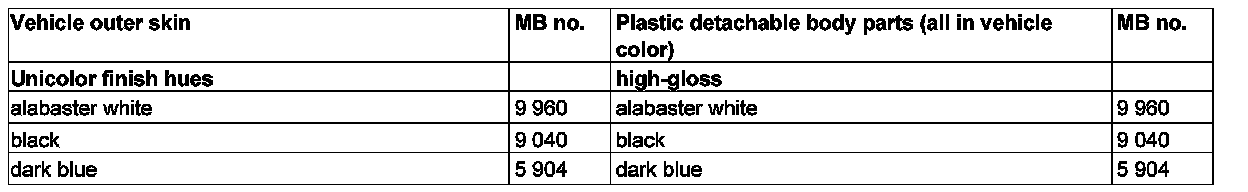

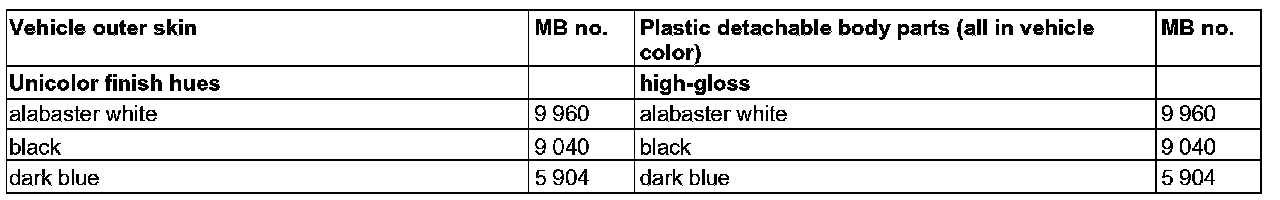

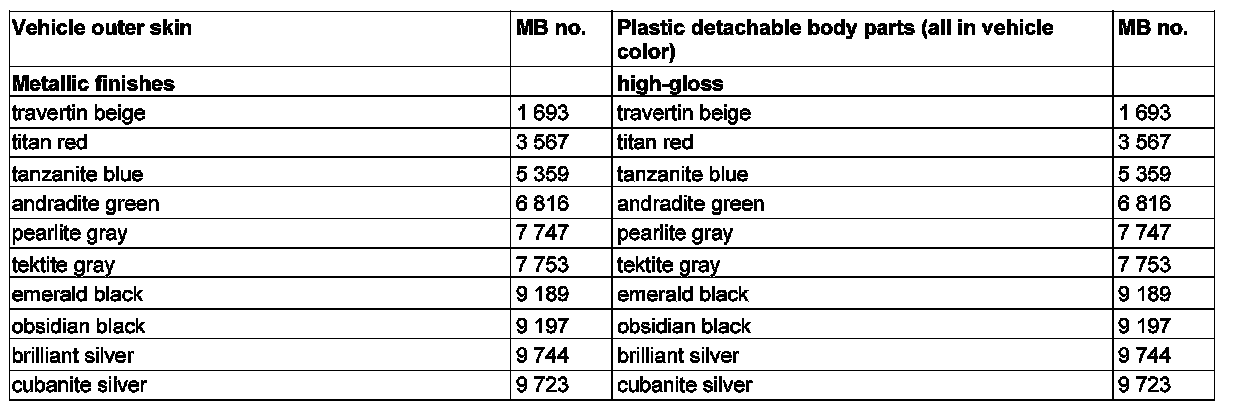

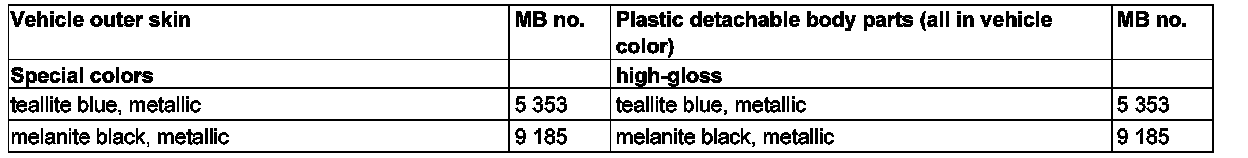

Color collection

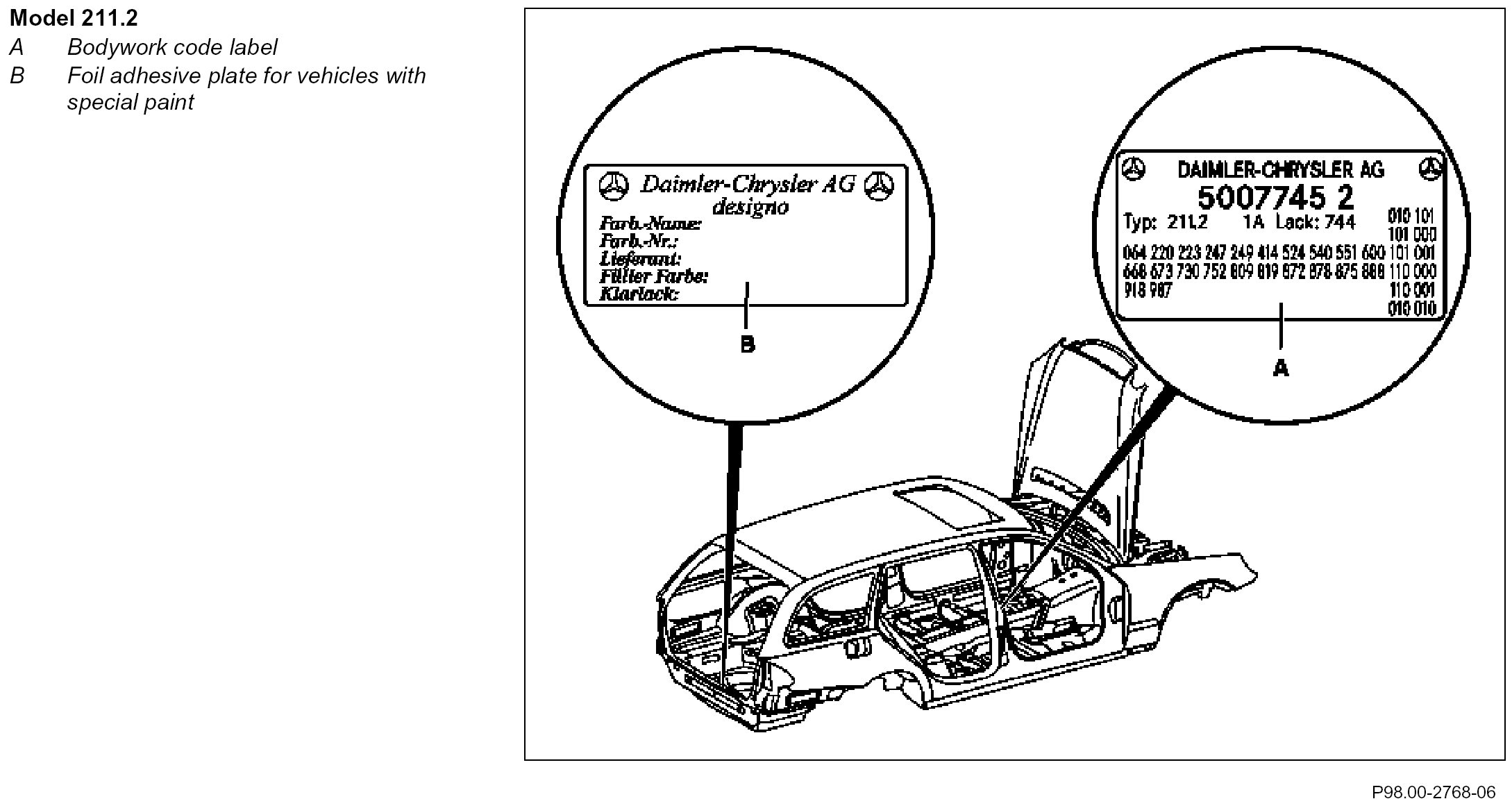

Model 211.2 (E-class as of 3/03)











Avantgrade and Elegance
