AR88.10-P-1200T Remove/Install Paneling on Rear Fender
AR88.10-P-1200T Remove/Install Paneling on Rear Fender
AR88.10-P-1200T Remove/Install Paneling on Rear
Fender

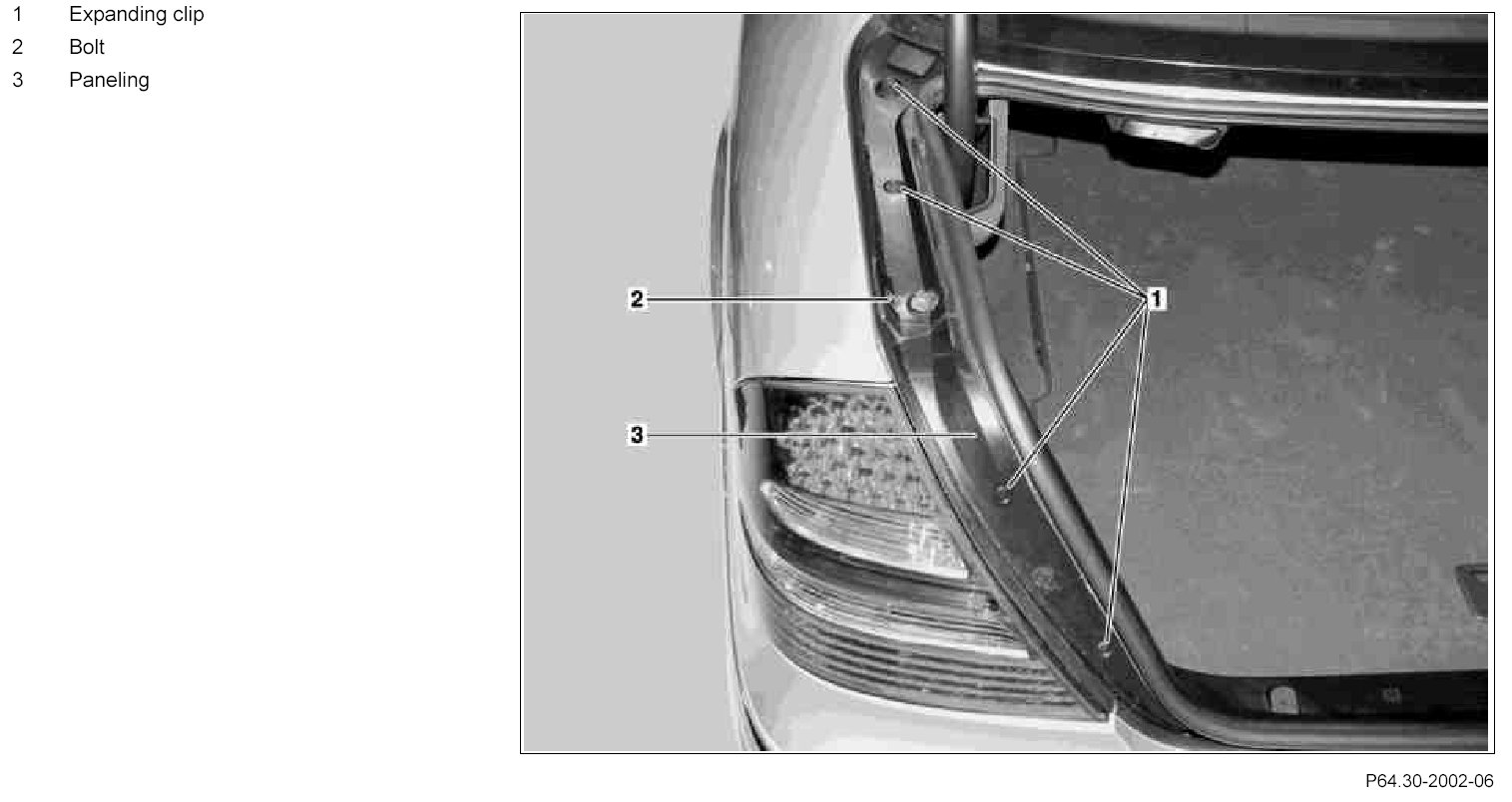

Component Identification:

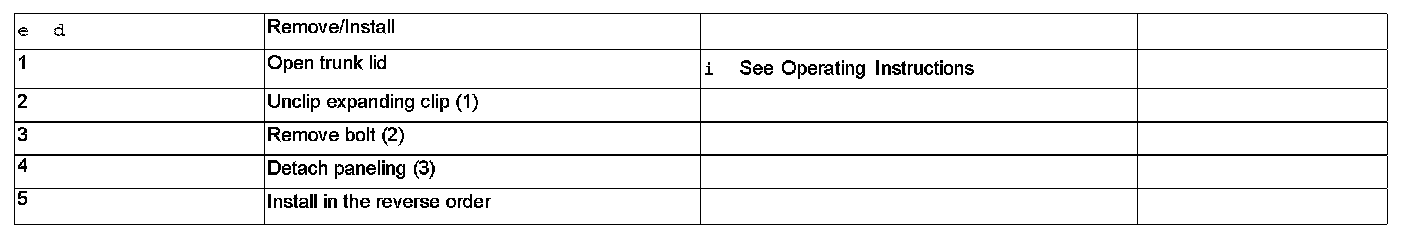

Steps 1 - 5:
