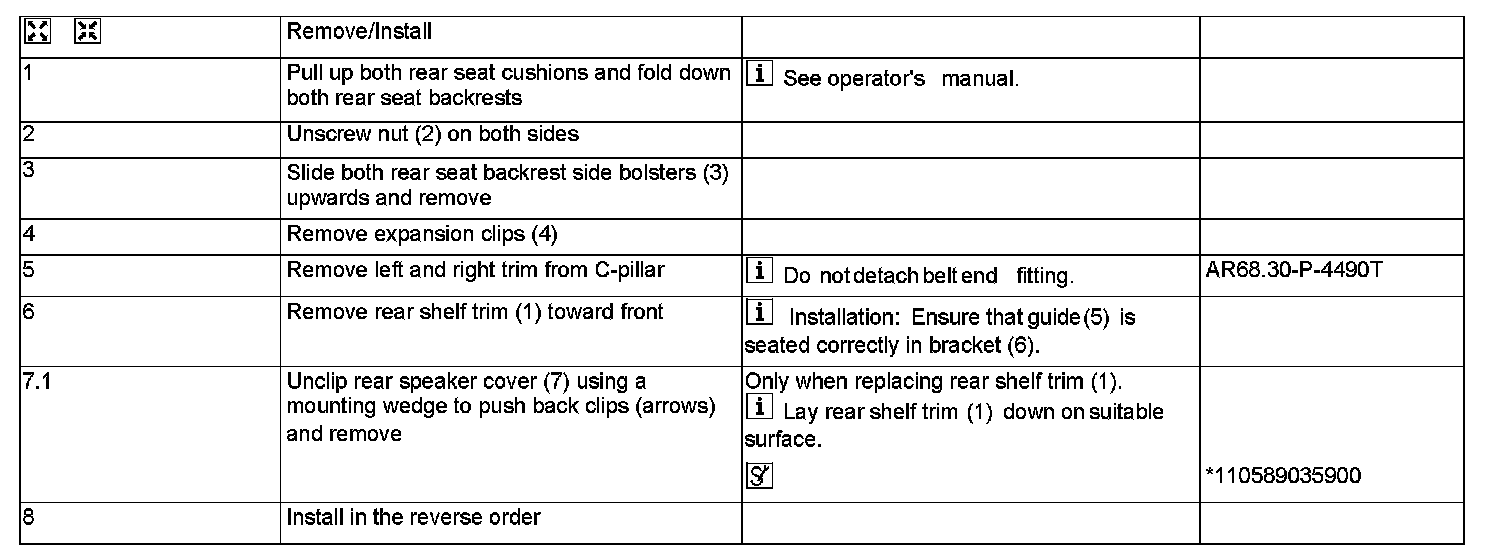

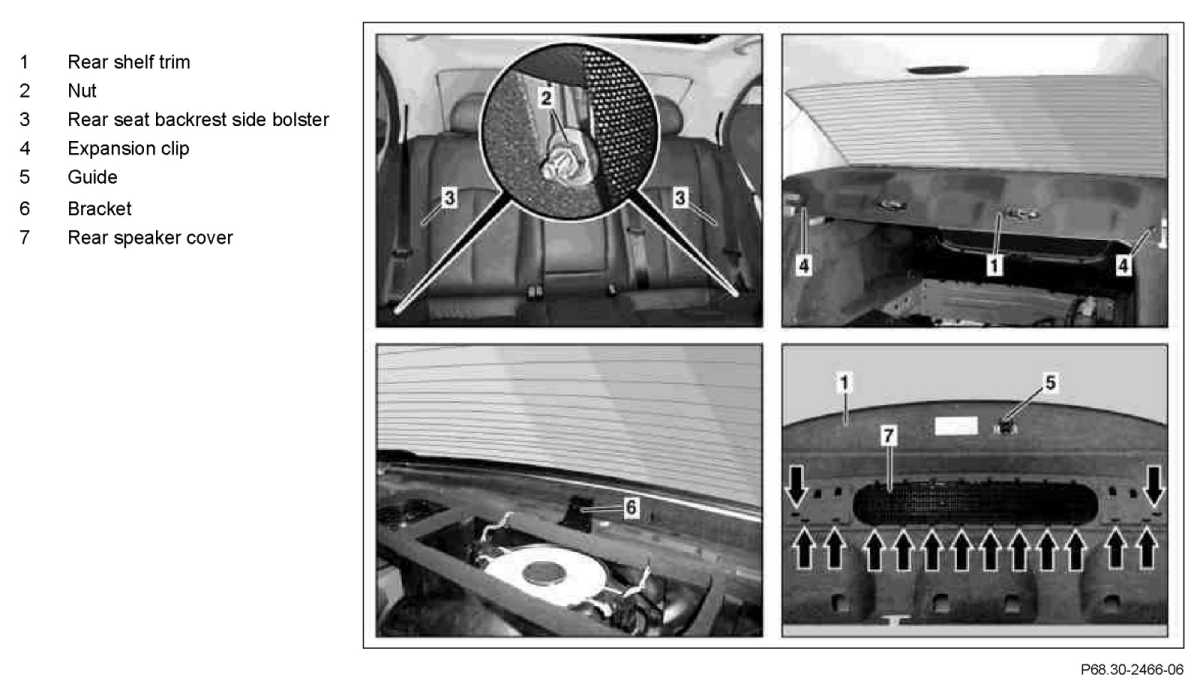

AR68.30-P-4580TA Remove/Install and Disassemble Rear Shelf



AR68.30-P-4580TA Remove/Install and Disassemble Rear Shelf
- with CODE (287a) Through-loading feature
- except CODE (540a) Electric roller blind for rear window
