AR68.30-P-4305-05T Install Vanity Mirror Illumination Wiring Harness In Headliner

AR68.30-P-4305-05T Install Vanity Mirror Illumination Wiring Harness In Headliner
- with CODE (413) Panoramic sliding roof [model 211.0]
- with CODE (543) Sun visors with illuminated mirror [models 211.0/2]

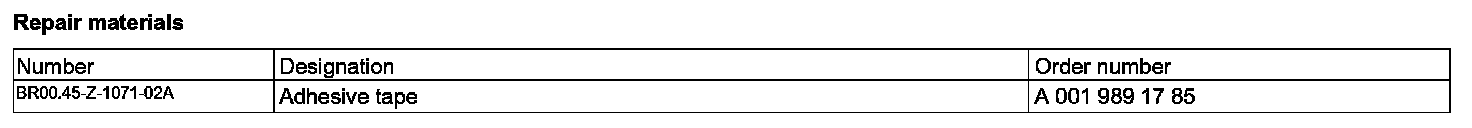

Repair Materials:

1. Clip left front vanity mirror illumination (E14/6) and right front vanity mirror illumination (E14/7) into left and right installation frame (2).
2. Connect vanity mirror illumination wiring harness (1) to left front vanity mirror illumination (E14/6) and right front vanity mirror illumination (E14/7).
3. Clip left and right sun visor pivot bearing (3) into headliner (4).

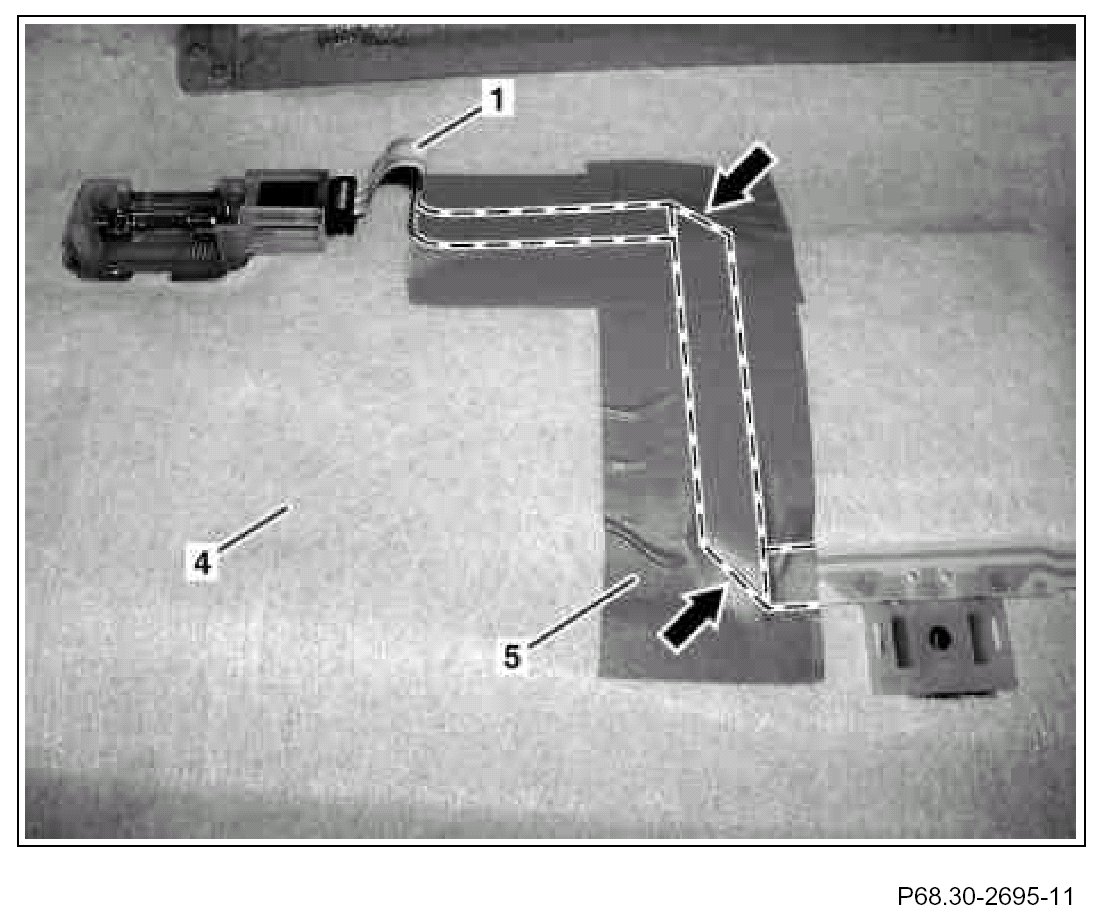

4. Route vanity mirror illumination wiring harness (1) without kinks except at predetermined kink points (arrows) and glue to headliner (4) with adhesive tape (5).
Firmly press on adhesive tape (5), otherwise the adhesive tape (5) can detach itself from the headliner (4).
The routing angle at the intended bending point (arrows) should be 90°.
