AR68.30-P-4300T Remove/Install Headliner



AR68.30-P-4300T Remove/Install Headliner
- except CODE (414) Power glass tilting/sliding roof
- except CODE (413) Panoramic sliding roof
- except CODE (419) Solar module for panoramic roof

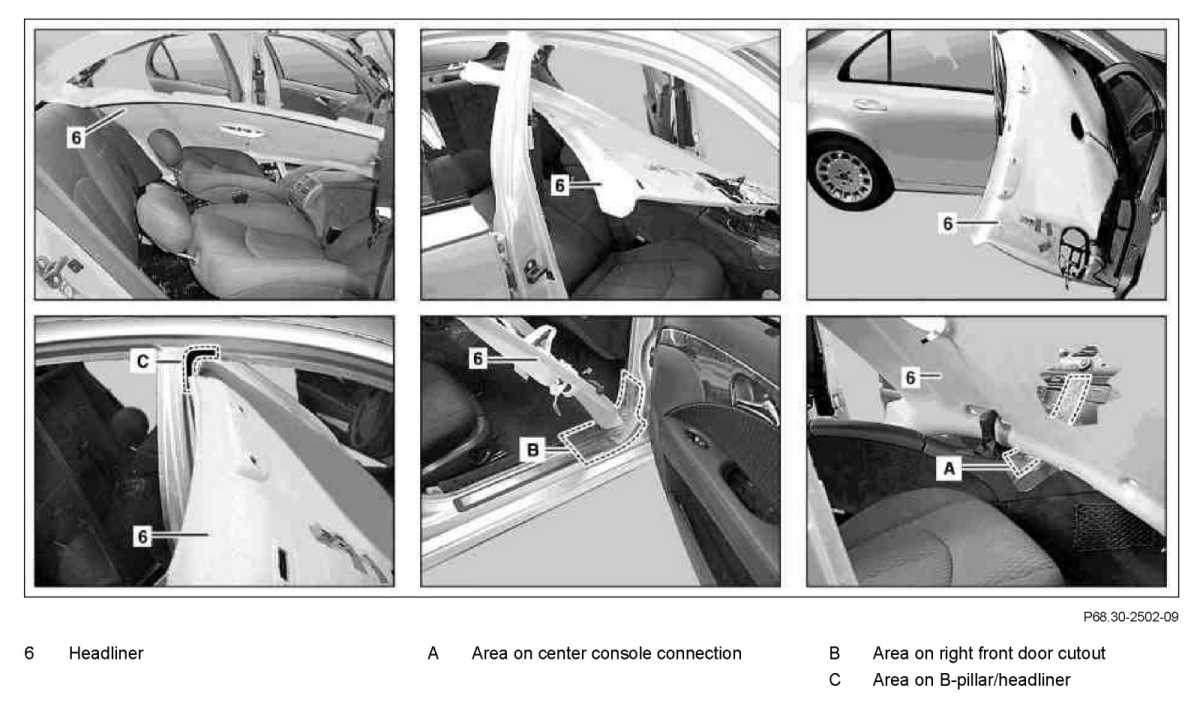

Part 1:

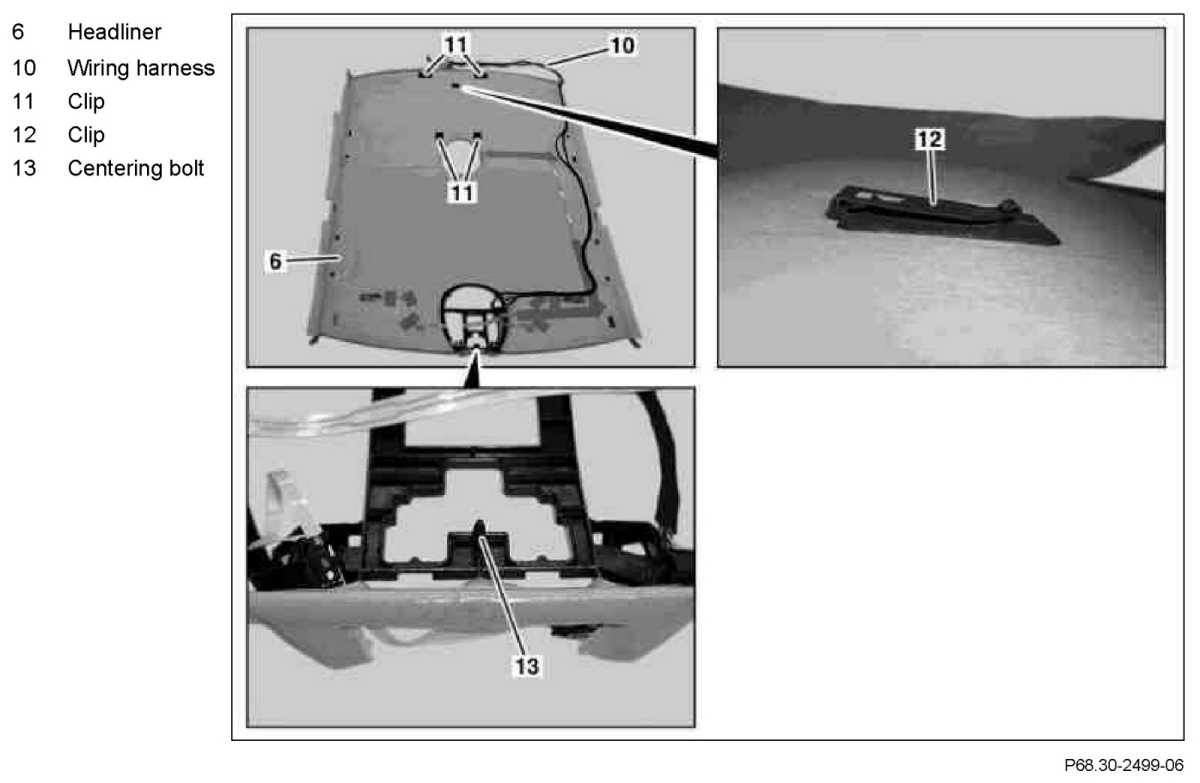

Part 2:
