AR68.10-P-1180T Remove/Install Trim Strip on Instrument Panel

AR68.10-P-1180T Remove/Install Trim Strip on Instrument Panel

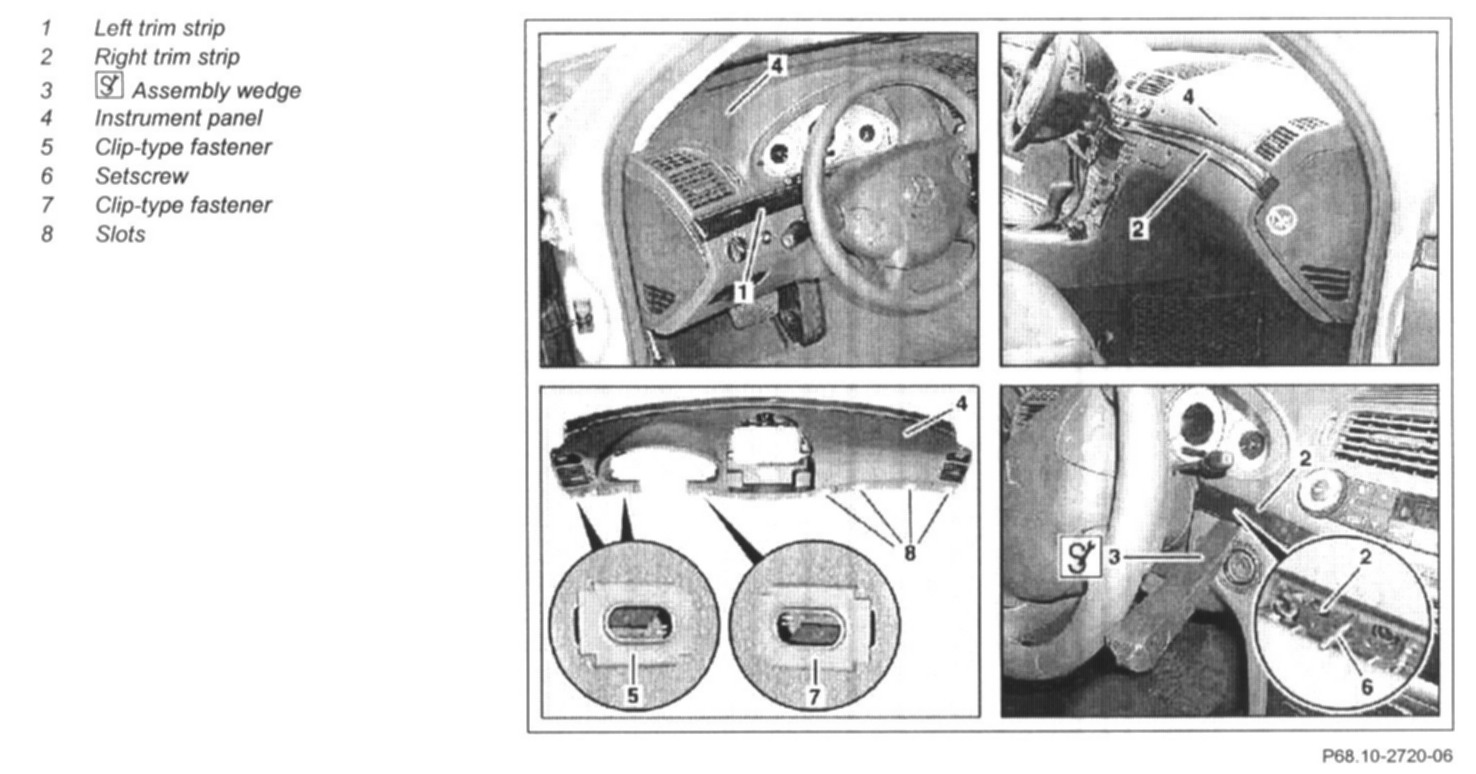

1 Unclip left trim strip (1) with assembly wedge (3) from clip-type fasteners (5) in instrument panel (4)

See "Special Tools" given below.

NOTE: Installation: Replace defective clip-type fasteners (5).

2 Unclip right trim strip (2) at threaded pin (6) out of the clip-type fastener (7) using assembly wedge (3)

See "Special Tools" given below.

3 Slide right trim strip (2) to the right and detach from the instrument panel (4)

NOTE:
- The right trim strip (2) is fixed in the elongated holes (8) in the instrument panel (4).
- Installation: Replace defective clip-type fasteners (5).

4 Install in the reverse order

Special Tools

Assembly Wedge, P/N # 110 589 03 59 00:
