AR68.20-P-2320T Remove/Install Stowage Box

AR68.20-P-2320T Remove/Install Stowage Box

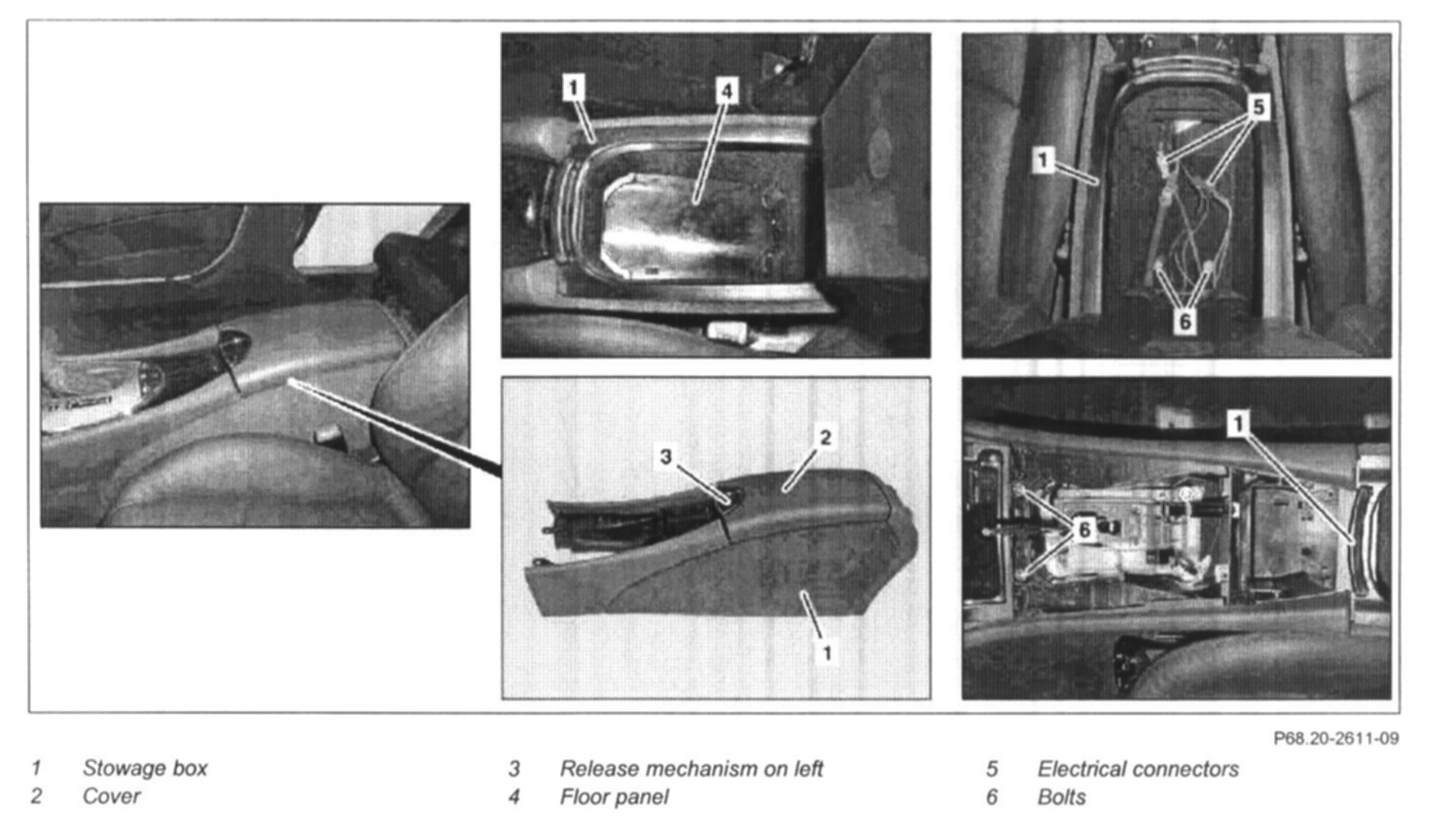

1 Remove ashtray from front center console
2 Remove cover on center console
3 Open cover (2) of stowage box (1)

NOTE: Actuate release mechanism on left (3).

4 Remove liner out of stowage box (1)
5 Pull out baseplate (4) using pulling hook

See "Special Tools" given below.

NOTE: Installation: Floor panel must latch audibly.

6 Separate electrical connectors (5)

NOTE: Number of electrical connectors (5) according to equipment.

7 Unscrew bolts (6)
8 Lift stowage box (1) at front and remove
9 Install in the reverse order

Special Tools

Pulling Hooks, P/N # 140 589 02 33 00:
