AR72.12-P-1041T Remove/Install Ashtray of Rear Door
AR72.12-P-1041T Remove/Install Ashtray of Rear Door
AR72.12-P-1041T Remove/Install Ashtray of Rear Door

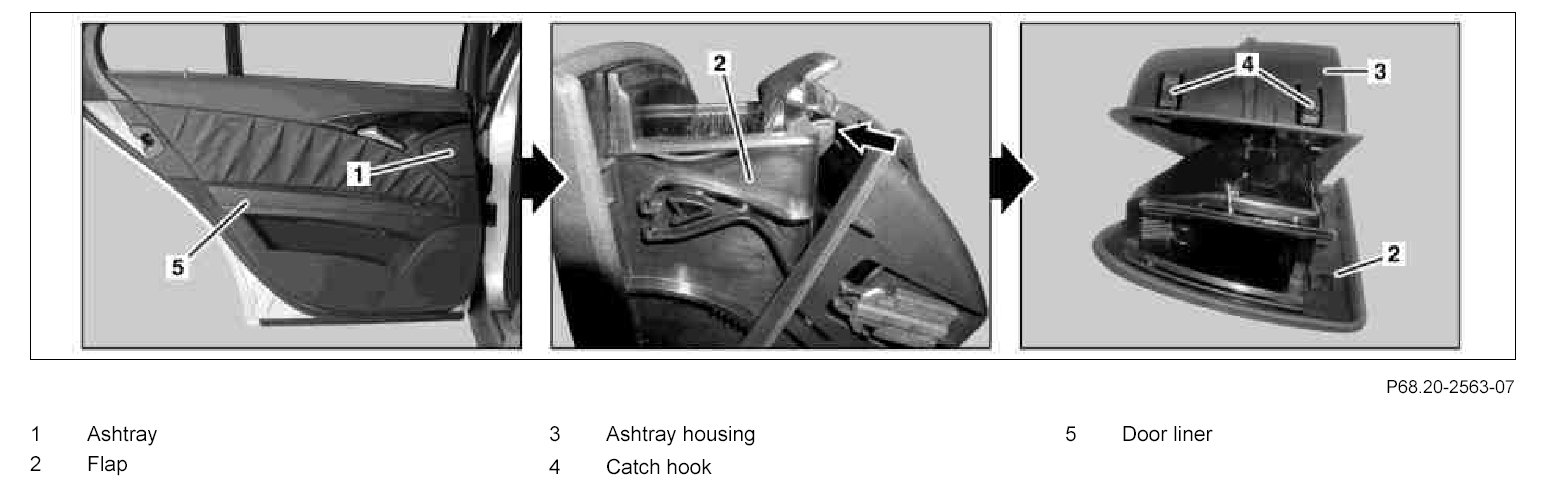

Component Identification:

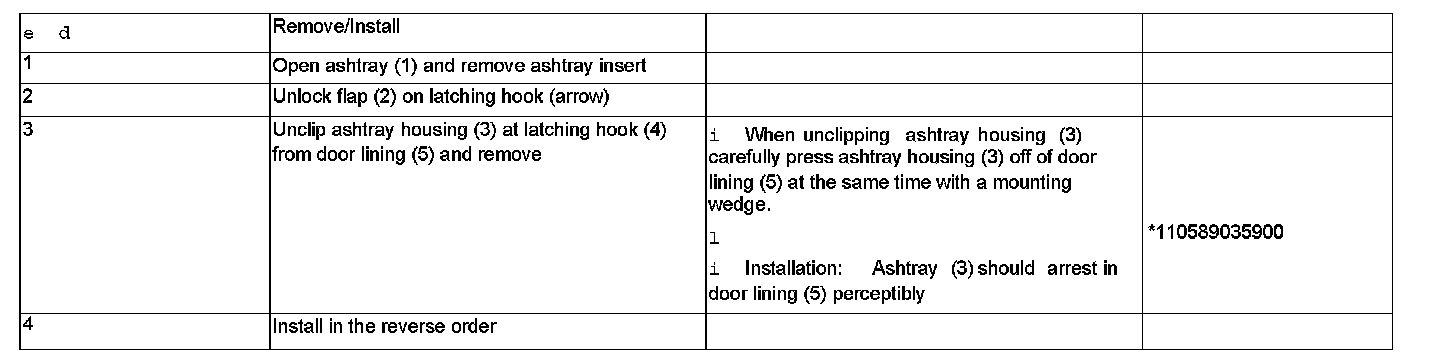

Steps 1 - 4:

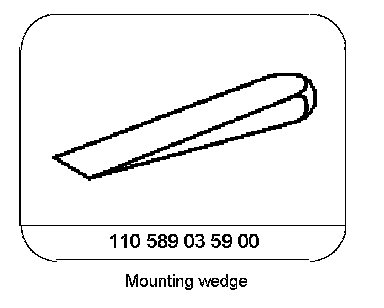

Special Tools:
