Accessory Compartment: Service and Repair

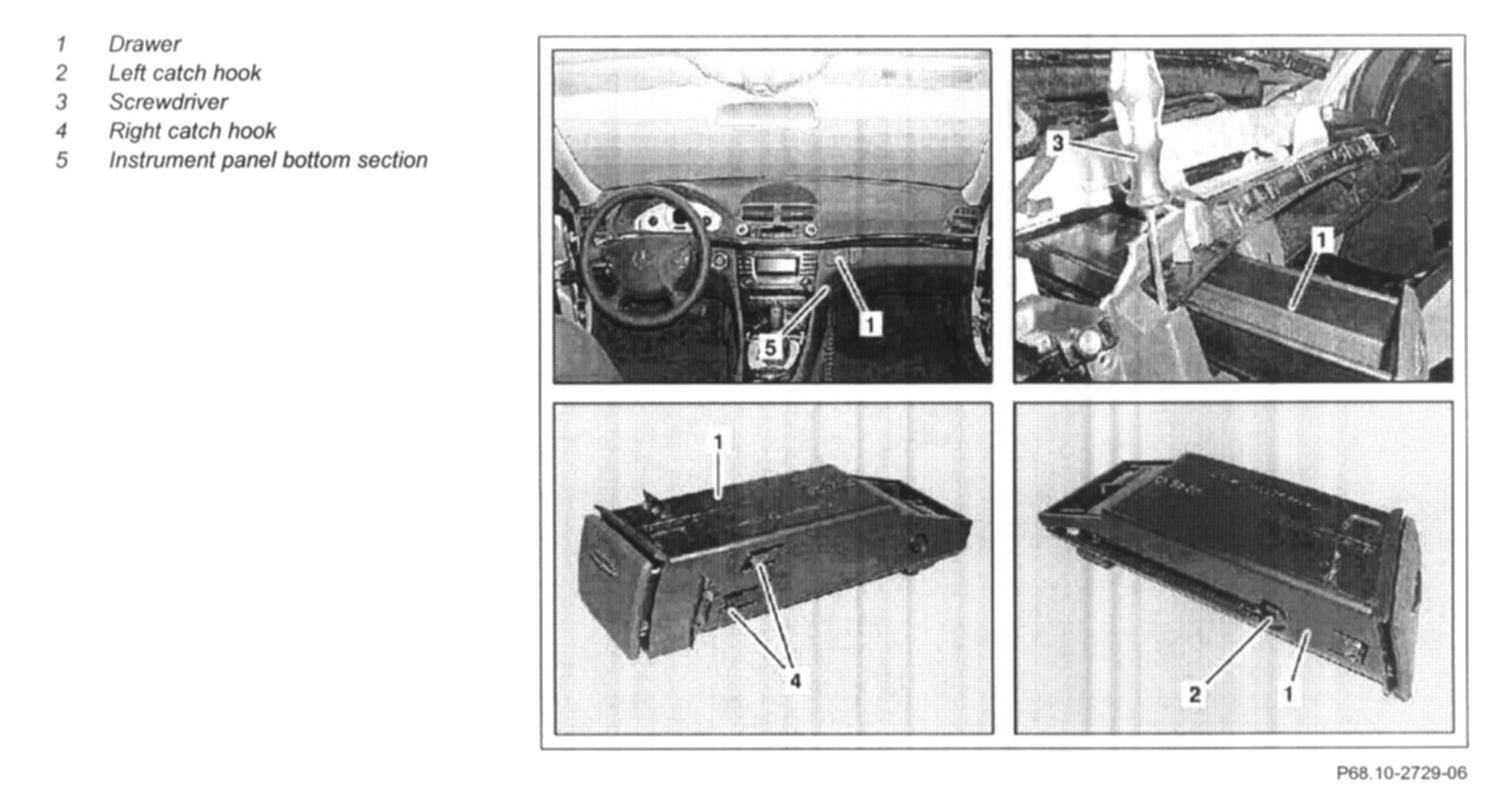

AR68.10-P-1195T Remove/Install Drawer In Instrument Panel







1 Remove top part of instrument panel
2 Open drawer (1)
3 Release left catch hook (2) using suitable screwdriver (3)

NOTE: At the same time slightly pull drawer (1) toward rear, in order to avoid that the left catch hook (2) latches again.

4 Release right catch hook (4) using suitable screwdriver (3)

NOTE: At the same time slightly pull at lid of drawer (1), in order to avoid that the right catch hooks (4) latch again.

5 Pull drawer (1) out of bottom section of instrument panel (5)
6 Insert drawer (1) into bottom section of instrument panel (5)

NOTE: Left catch hook (2) and right catch hook (4) must latch in audibly.

7 Install upper section of instrument panel
