AN88.50-P-0005T Retrofit Hotel Lock (90 Position)



AN88.50-P-0005T Retrofit hotel lock (90� position).

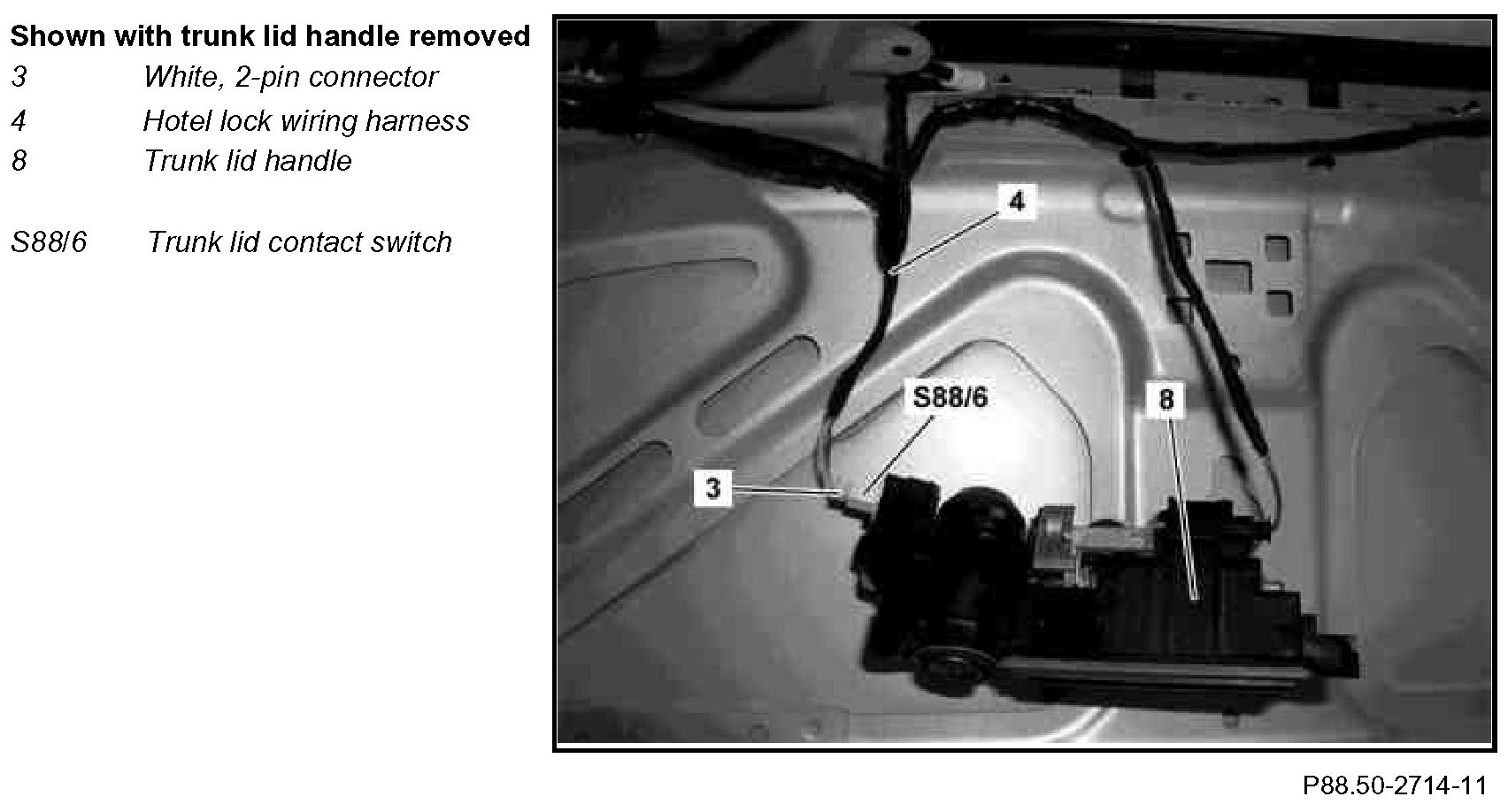

Component Identification:

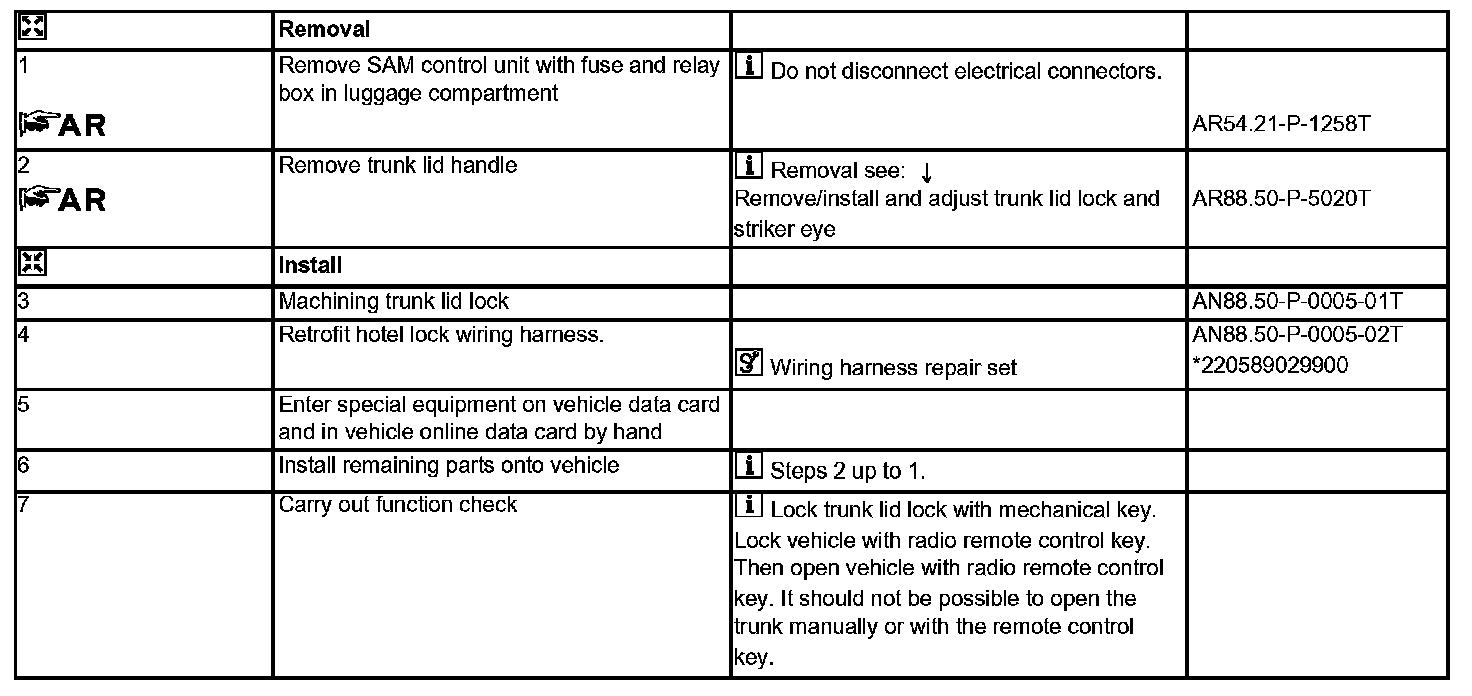

Steps 1 - 7:

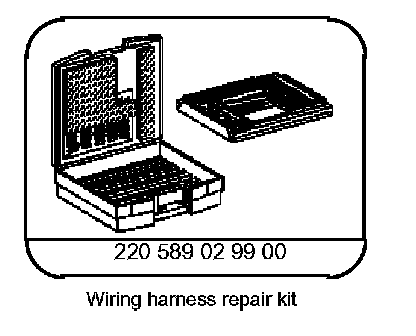

Special Tools:




Parts Ordering Notes:
