Trunk / Liftgate Hinge: Service and Repair
AR88.50-P-5120T Remove/Install Hinge Lever For Trunk Lid

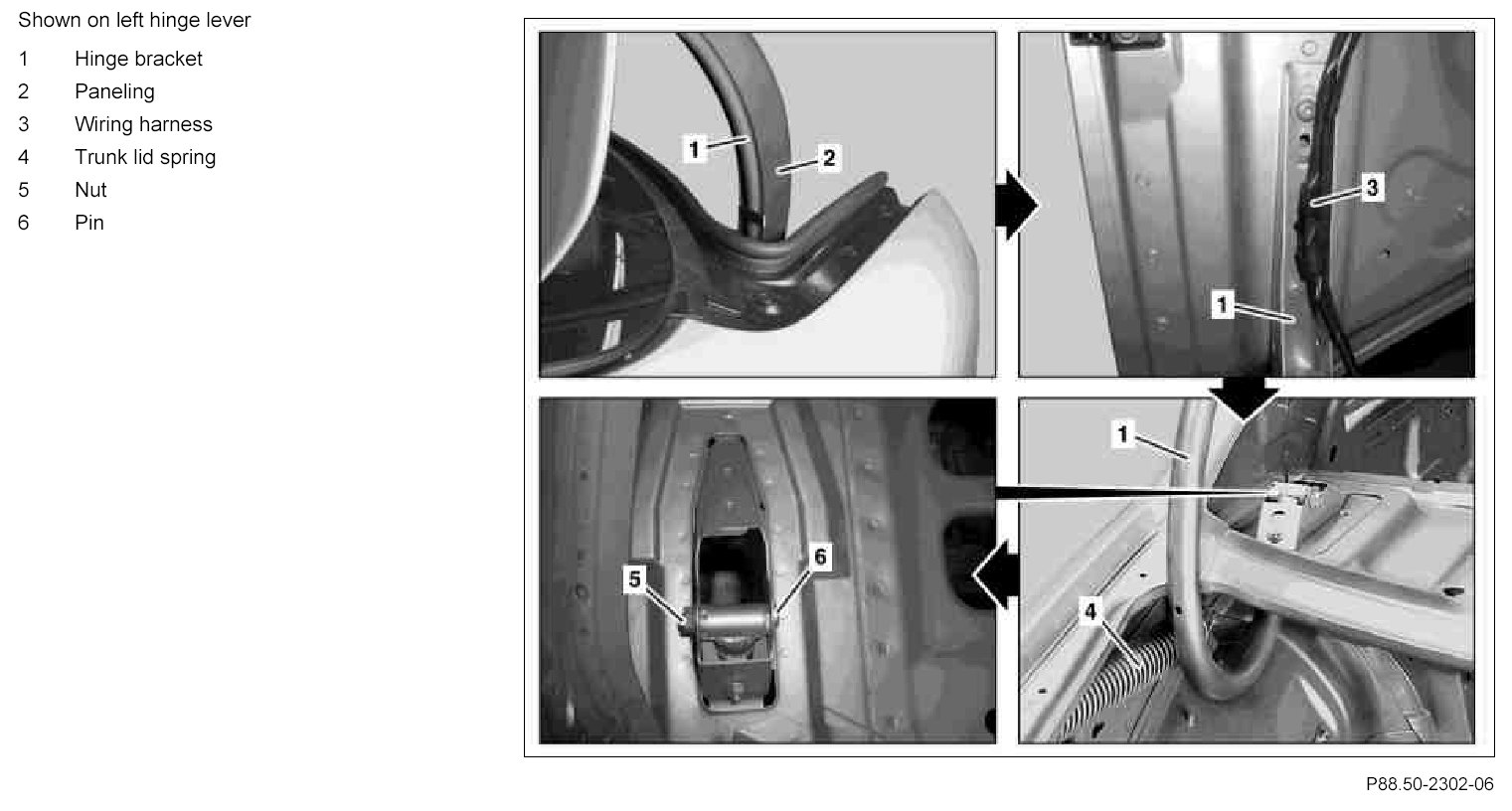

Component Identification:

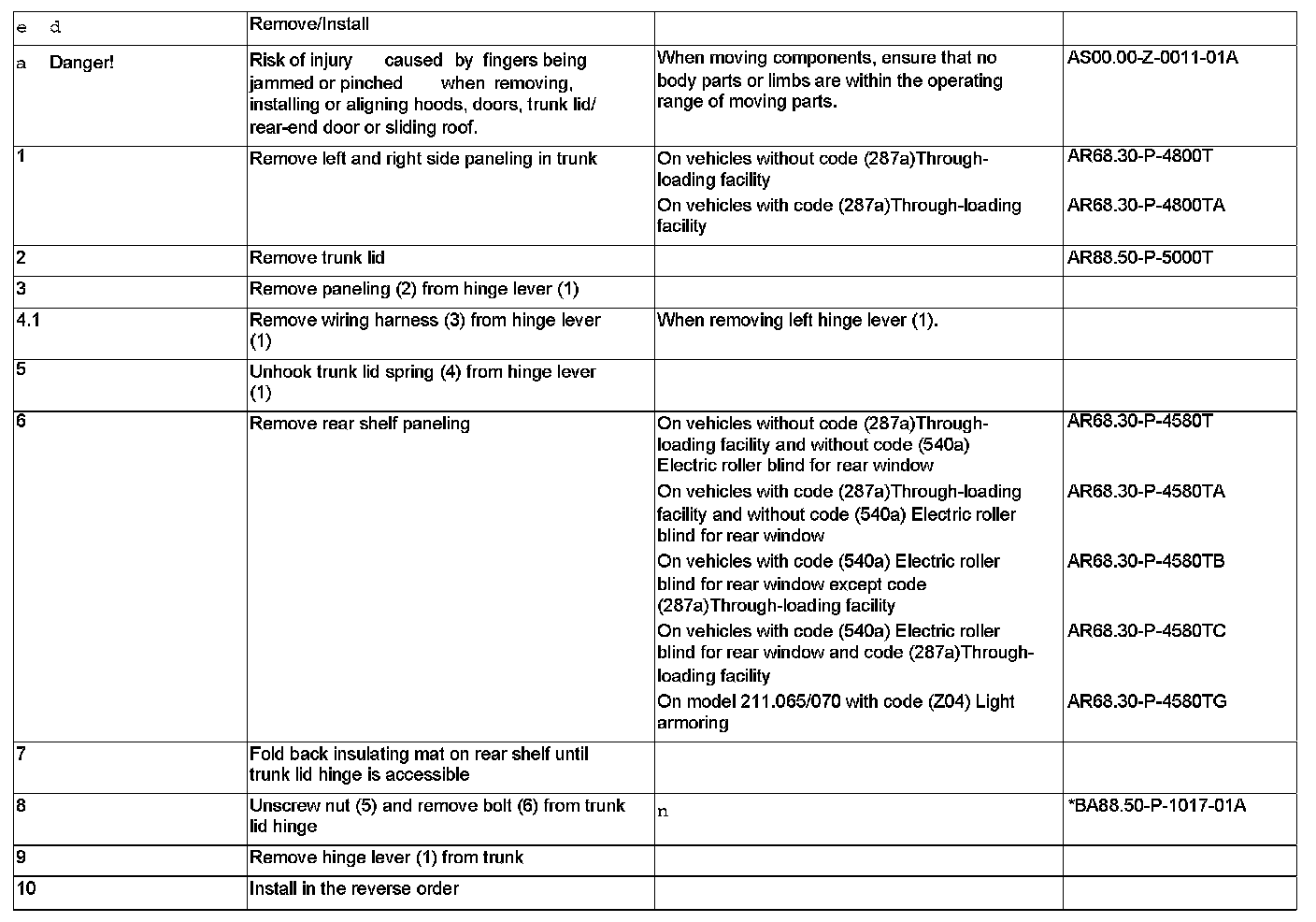

Steps 1 - 10:

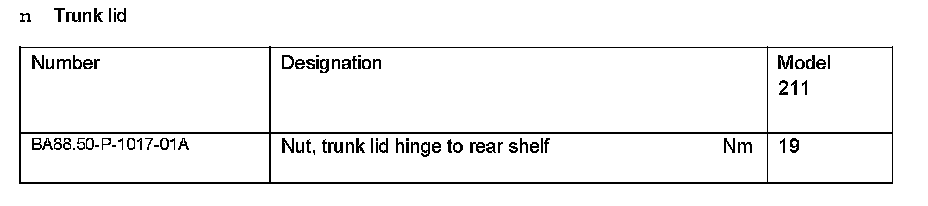

Trunk Lid:
