E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Hood
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR88.40-P-3000T Remove/Install Engine
Hood
Component Identification:
Modification Notes:

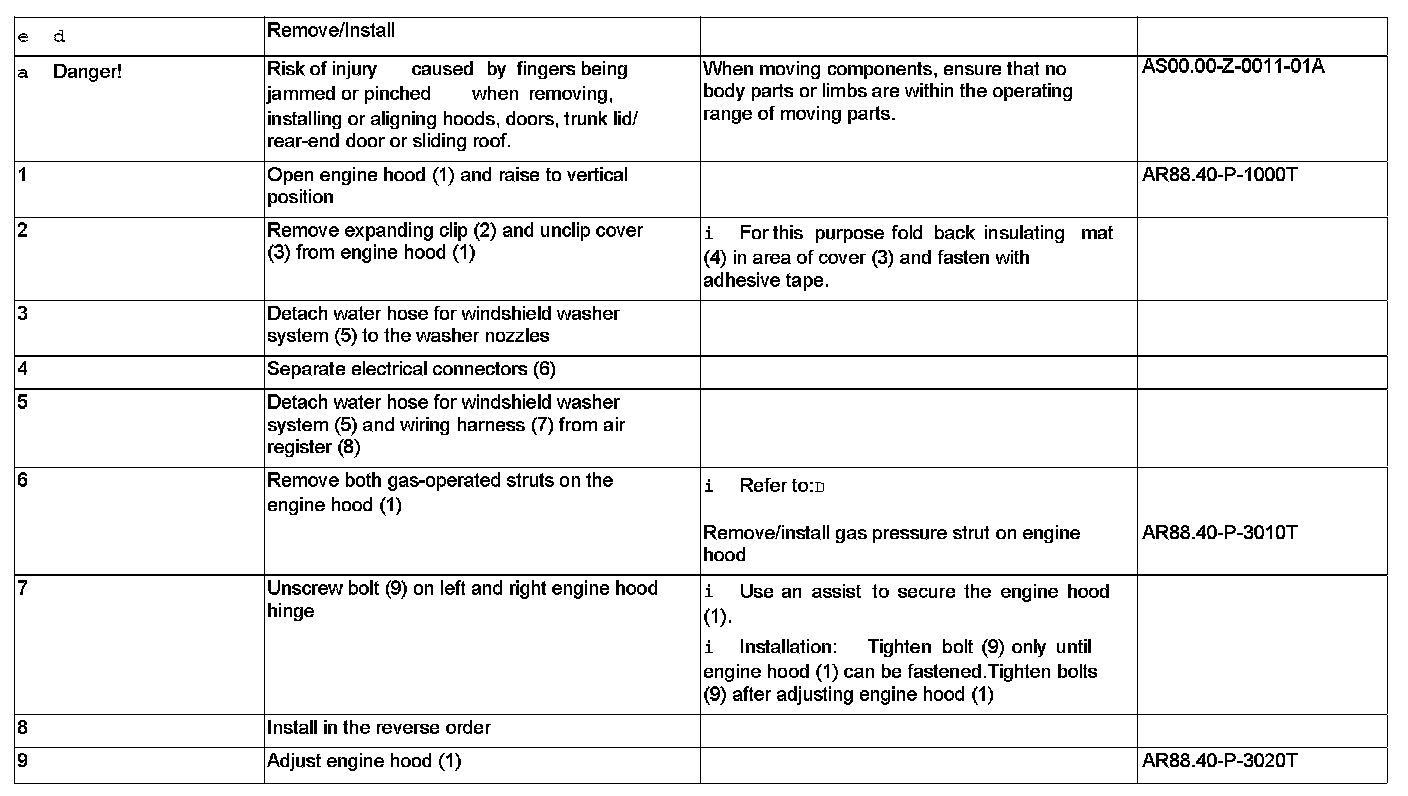

Steps 1 - 9:
