Hood Latch: Testing and Inspection
AP88.40-P-8851T Check Engine Hood Lock and Safety Hook

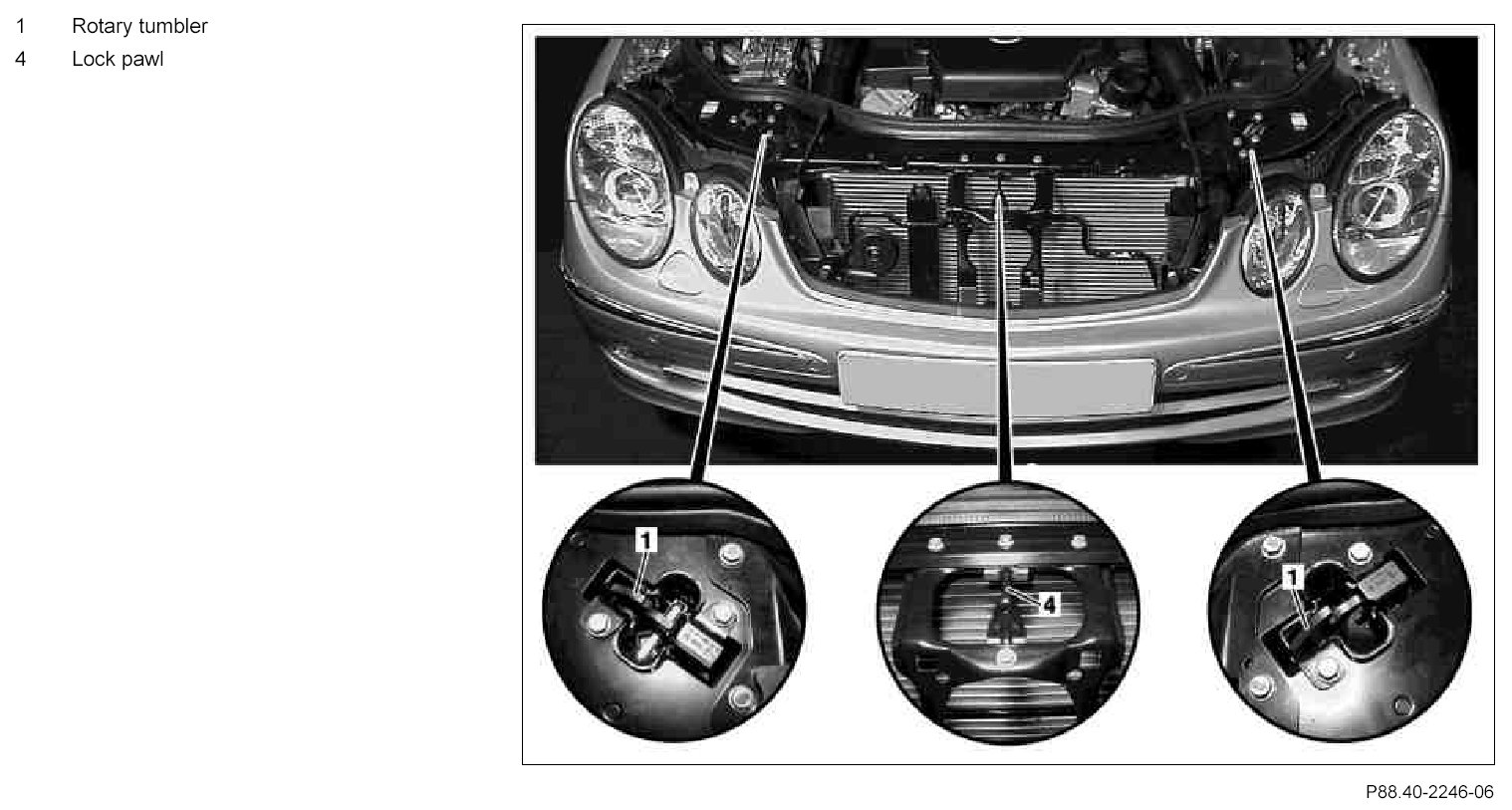

Component Identification:

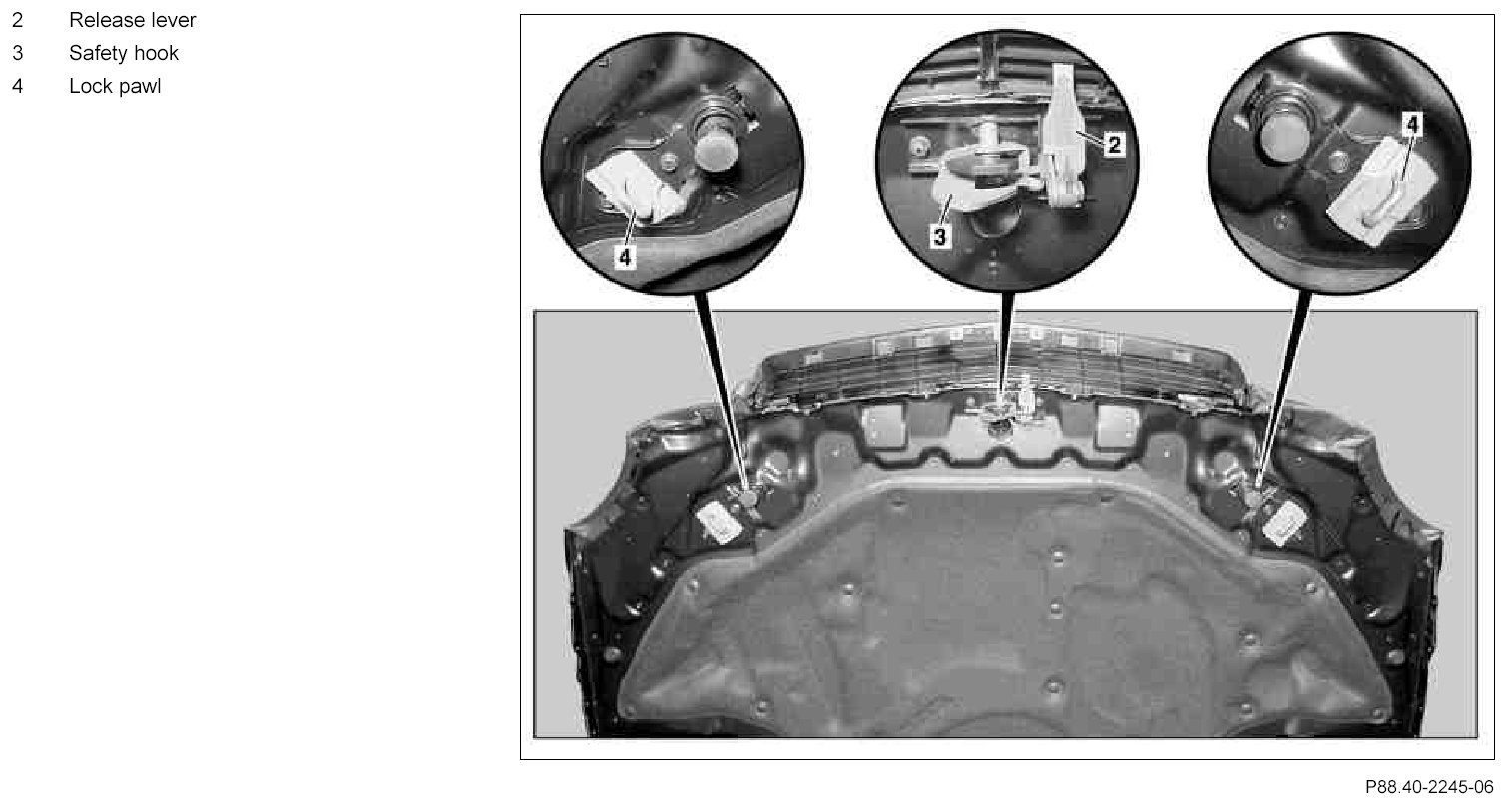

Component Identification:

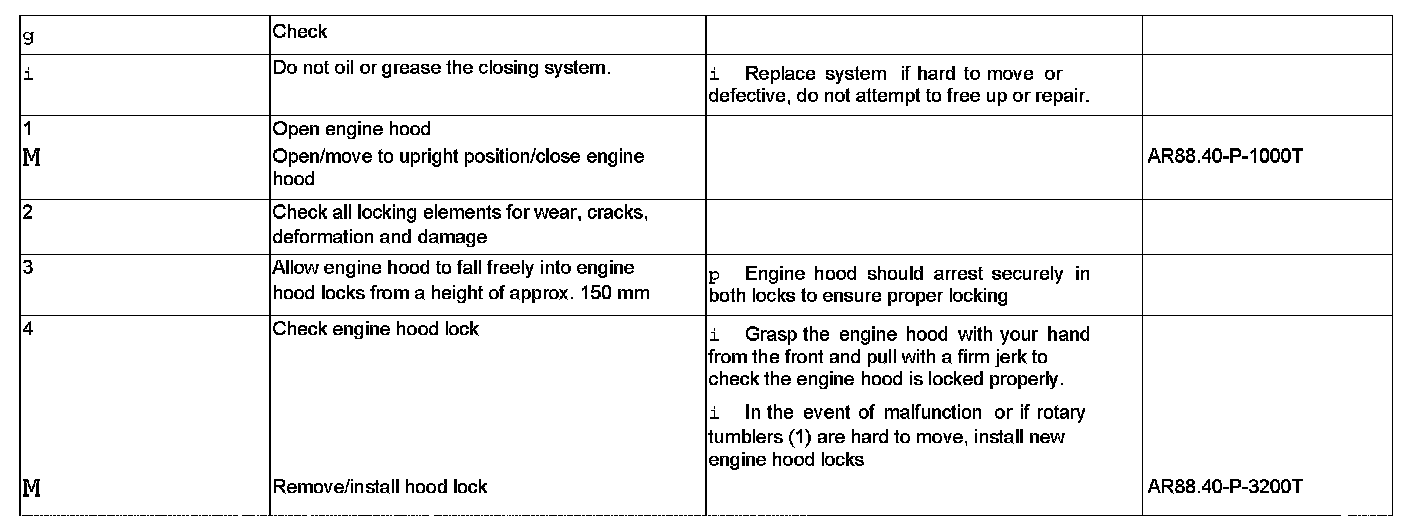

Steps 1 - 4:

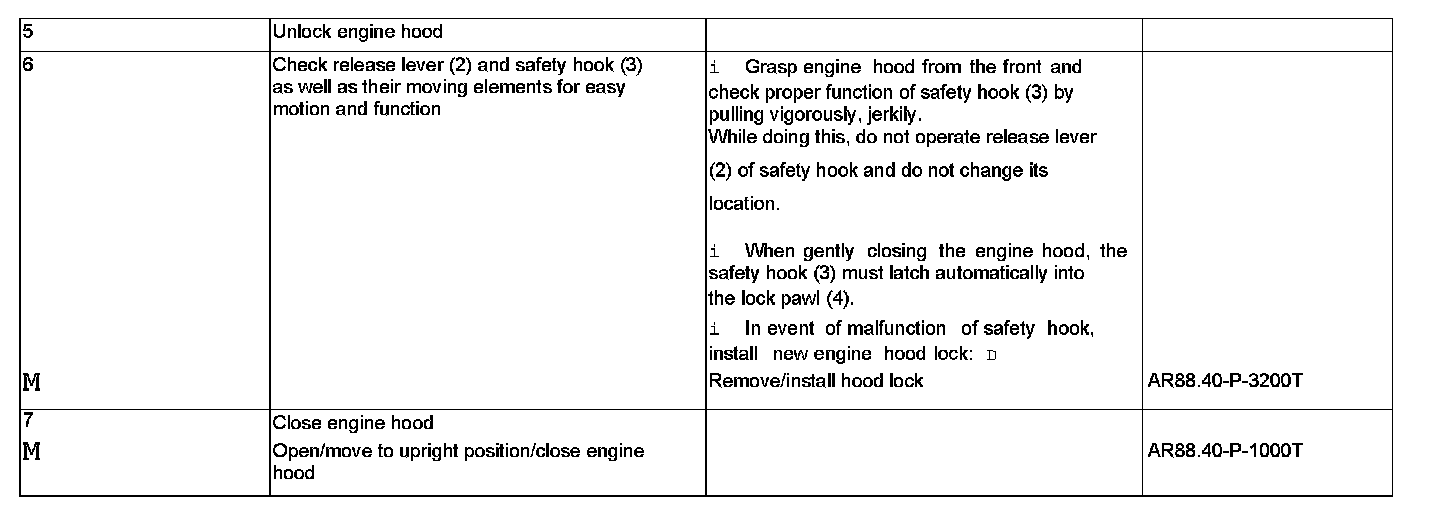

Step 5 - 7:
