Rear Door: Adjustments
AR72.12-P-0650T Adjust Rear Door

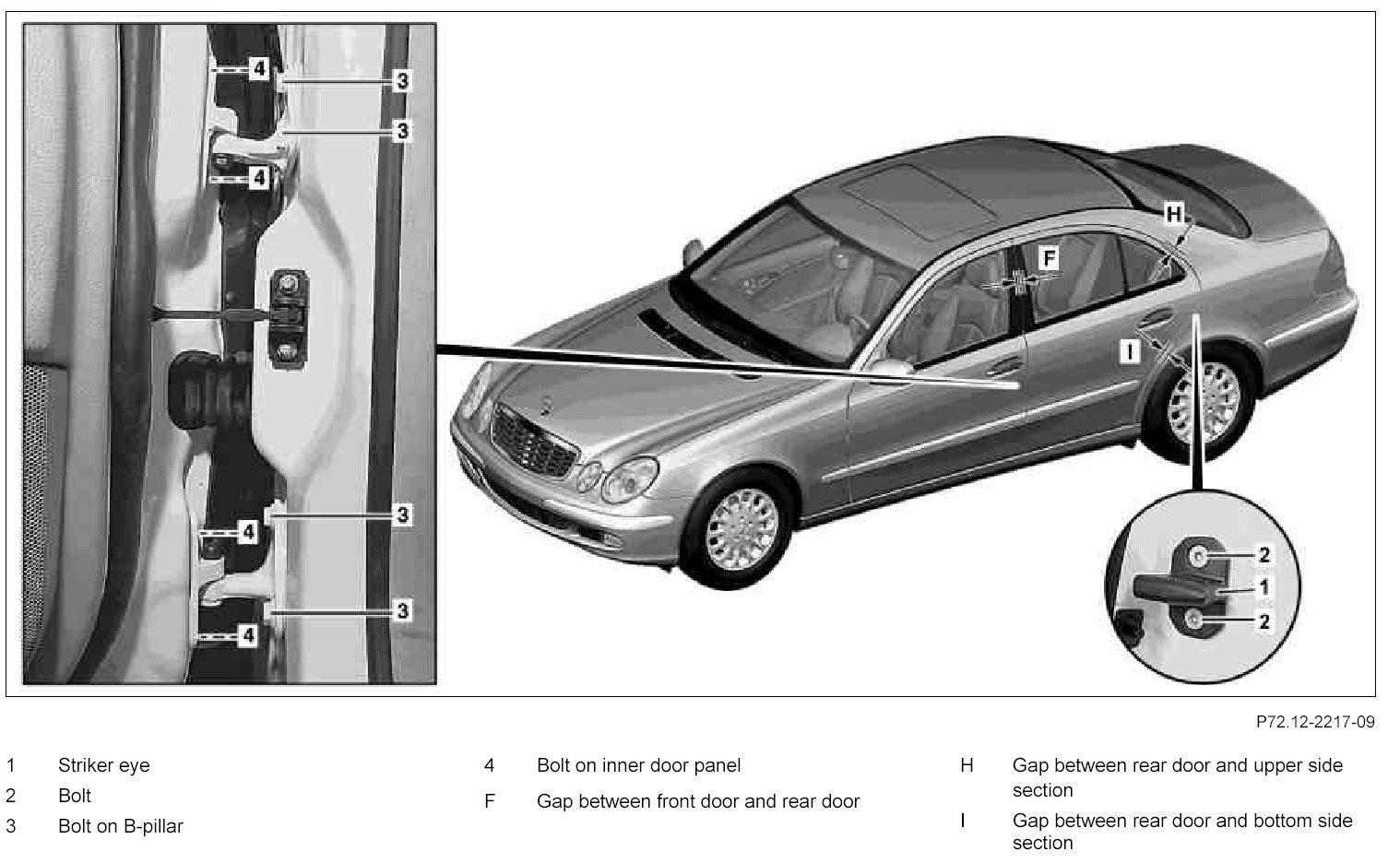

Component Identification:

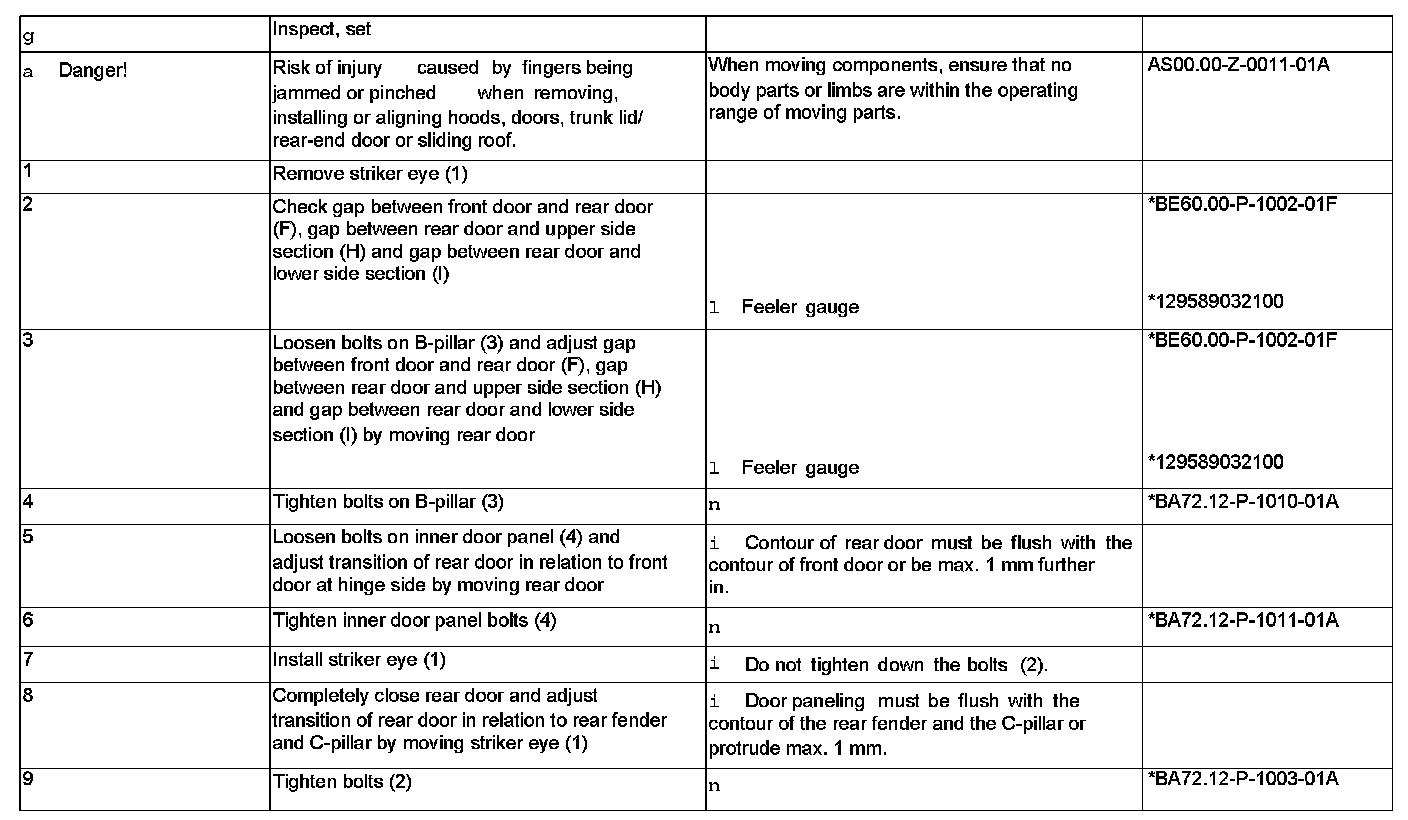

Steps 1 - 9:

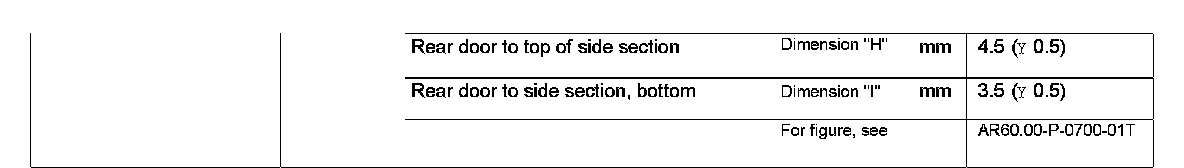

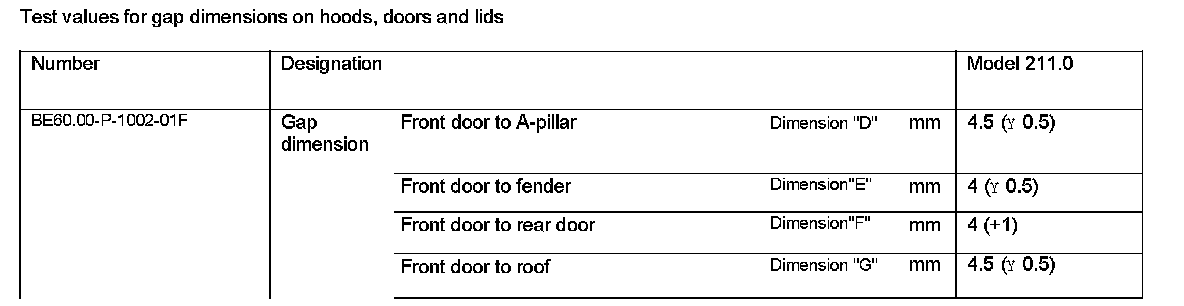

Test Values For Gap Dimension On Hoods, Doors And Lids:

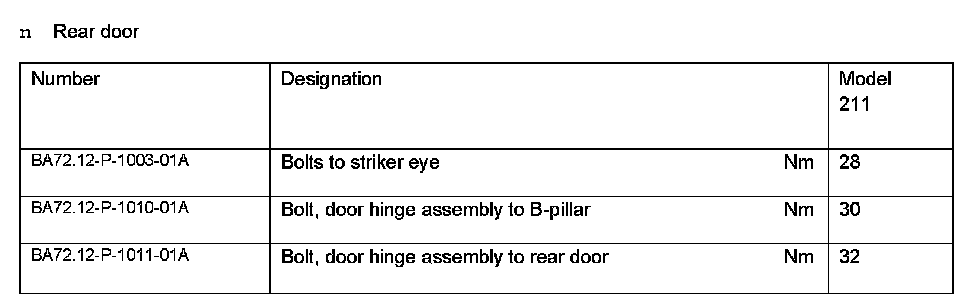

Rear Door:

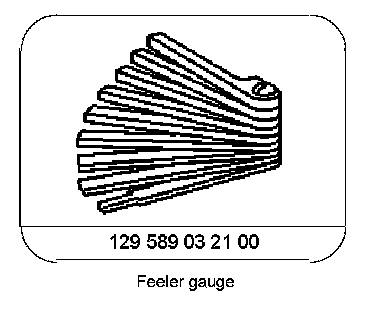

Special Tools:
