Front Door Limiter: Service and Repair
AR72.10-P-2100R Remove/Install Door Holder

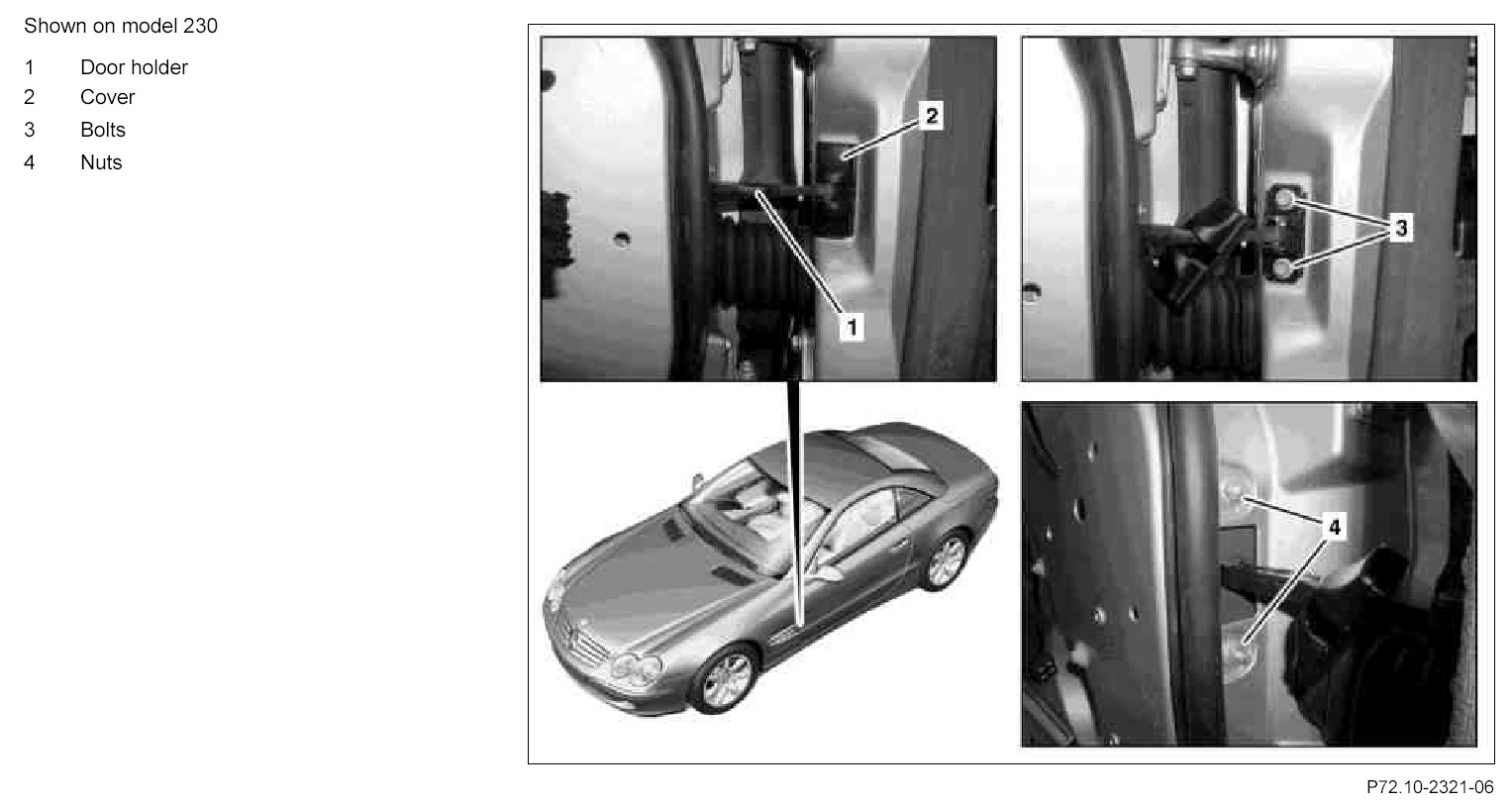

Component Identification:

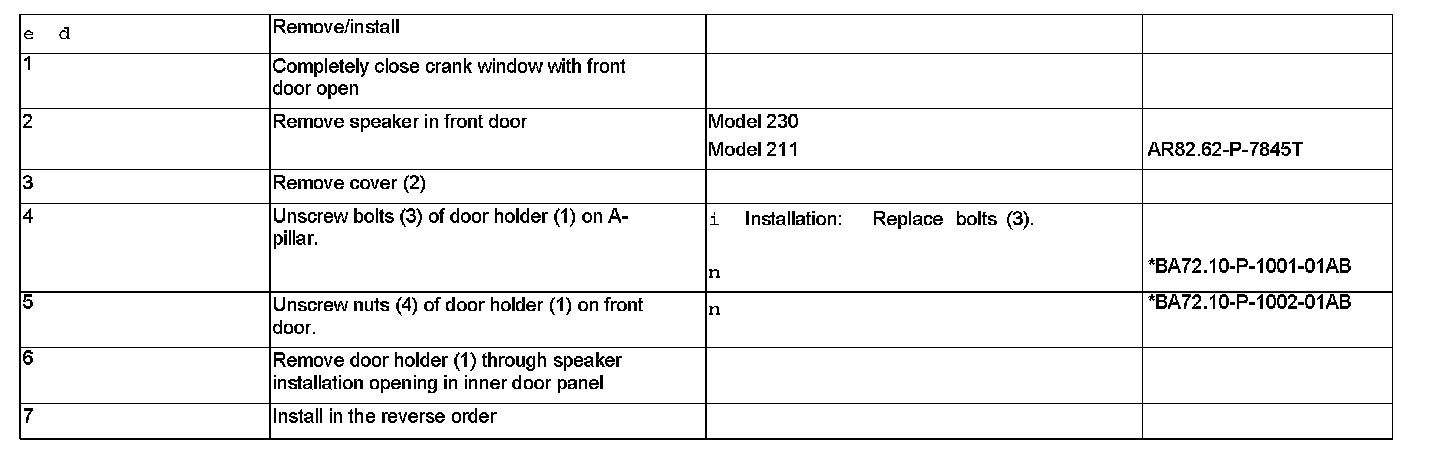

Steps 1 - 7:

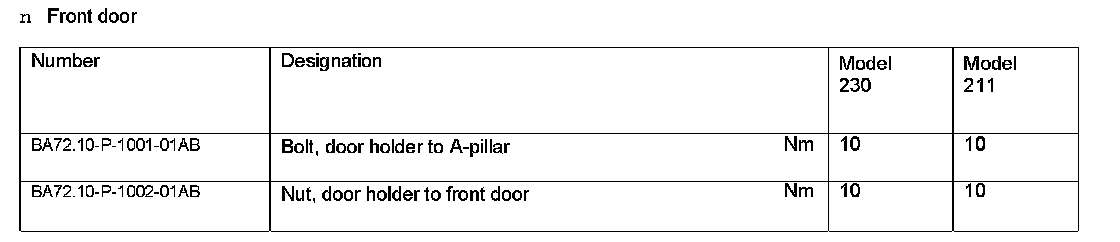

Front Door:
