Front Door: Adjustments
AR72.10-P-0550T Adjust Front Door

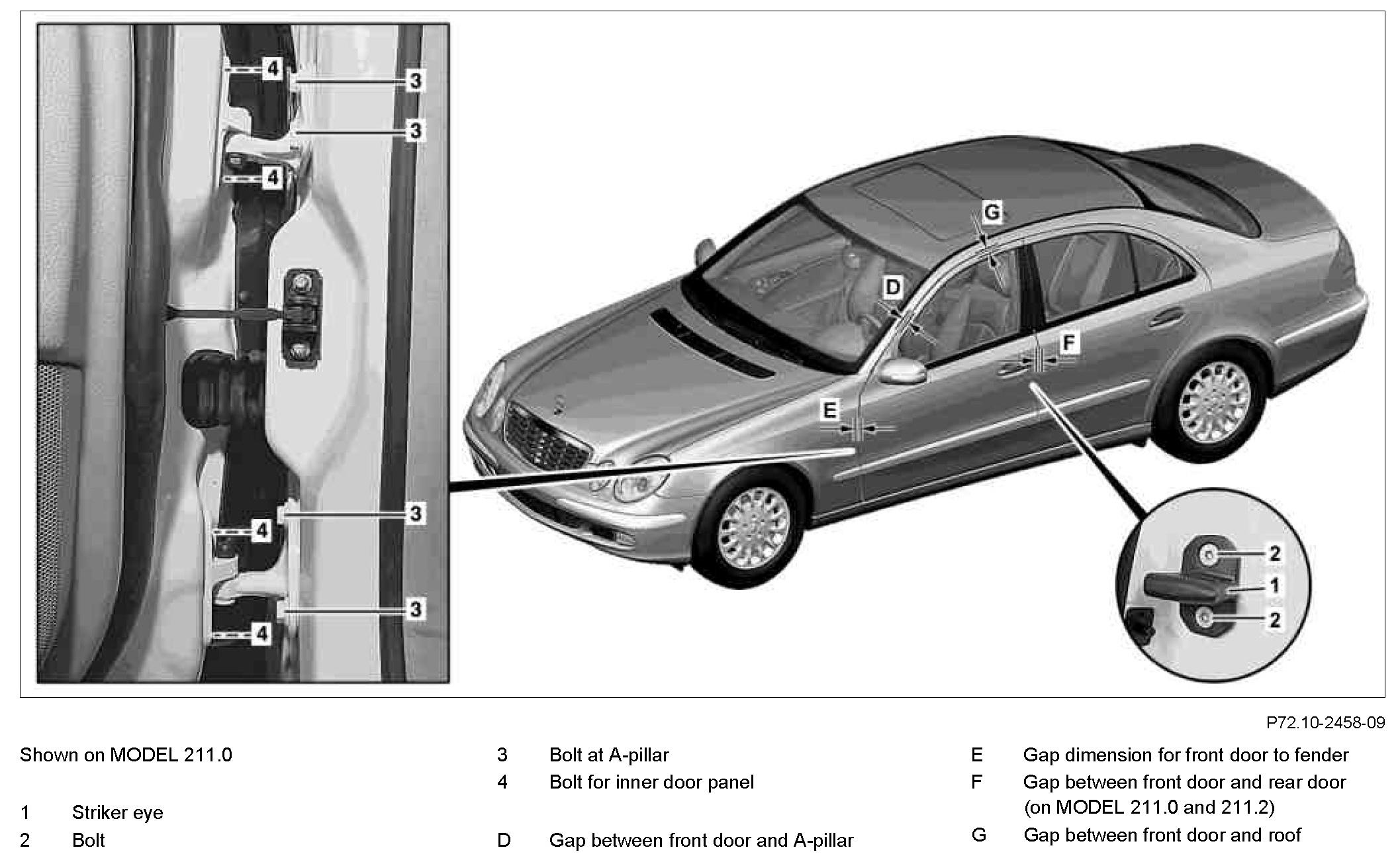

Component Identification:

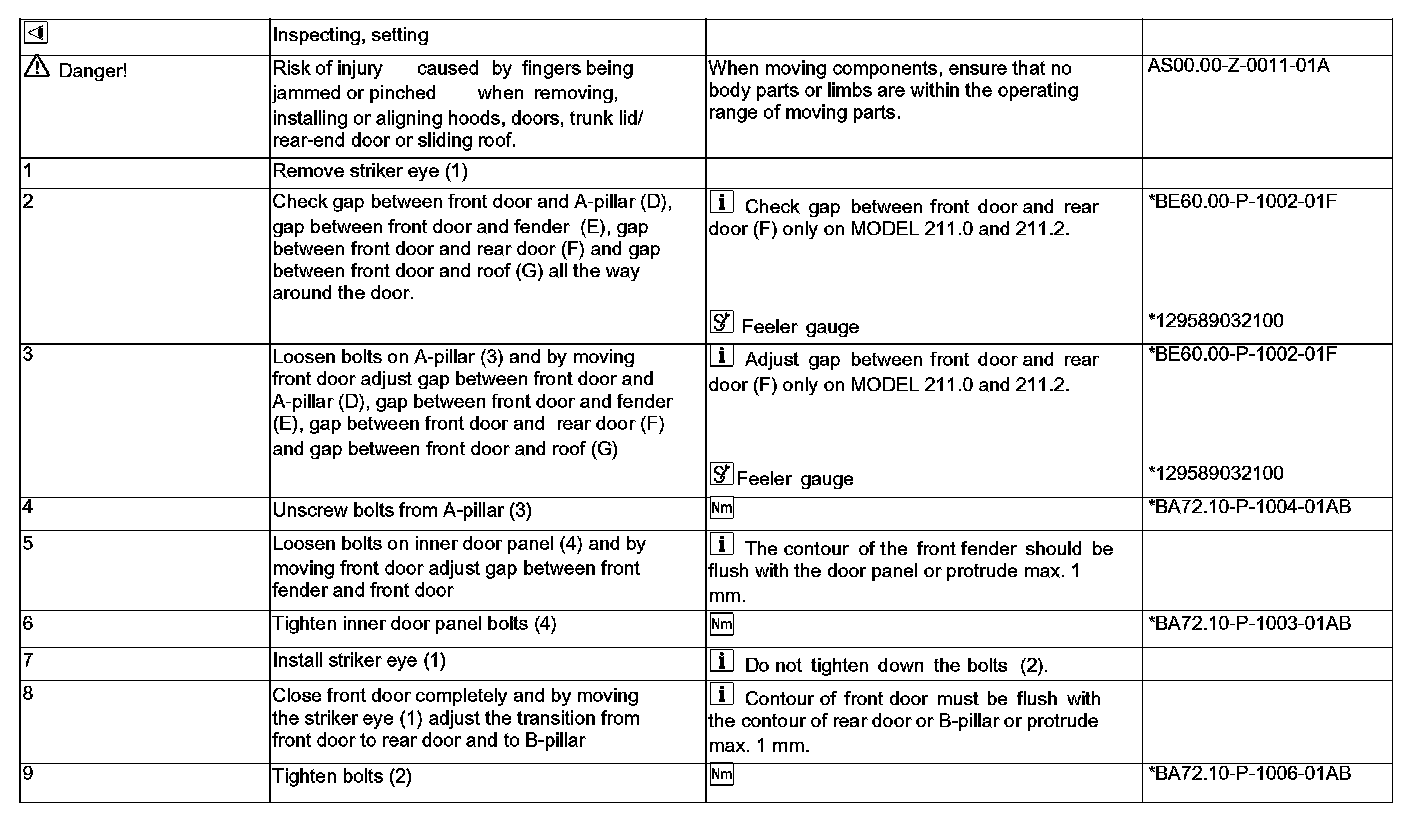

Steps 1 - 9:

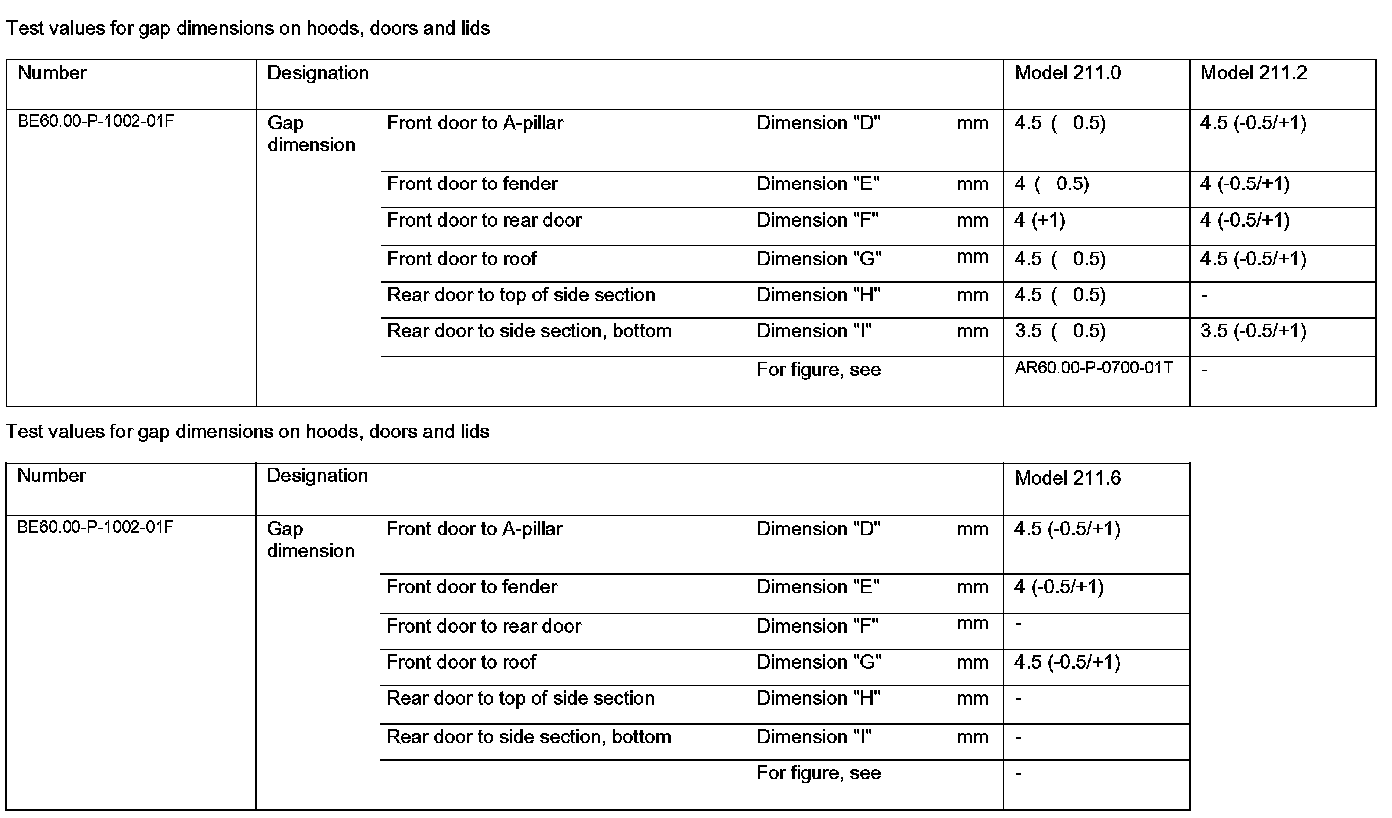

Test Values For Gap Dimensions On Hoods, Doors And Lids:

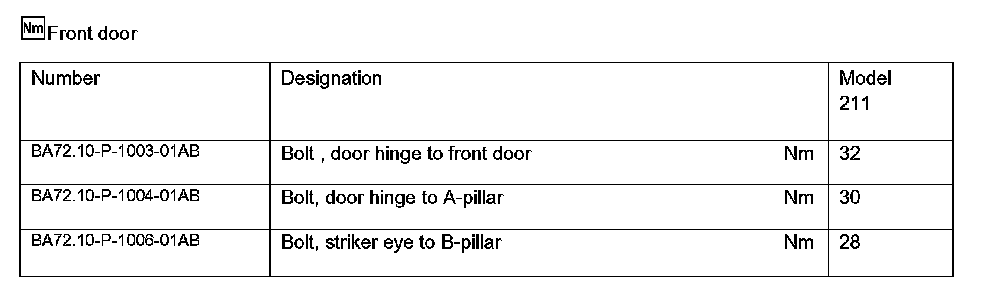

Front Door:

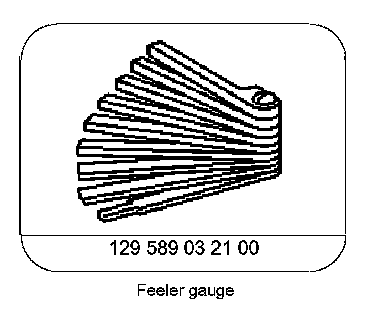

Special Tools:
