AR82.62-P-7845T Remove/Install Loudspeaker In Front Door

AR82.62-P-7845T Remove/Install Loudspeaker In Front Door

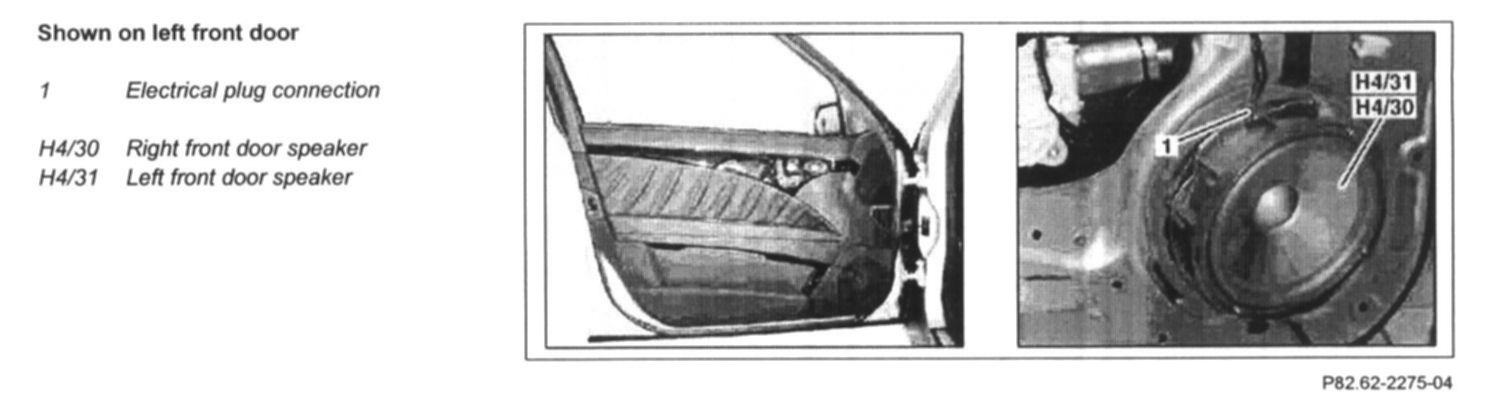

Shown On Left Front Door:

1 Remove door foil from front door

NOTE: Work loose door foil only until the right front door speaker (H4/30) or left front door speaker (H4/31) is exposed.

2 Disconnect electrical connector (1).
3 Rotate and remove right front door speaker (H4/30) or left front door speaker (H4/31)
4 Install in the reverse order
