AR82.62-P-7833T Remove/Install Loudspeaker In Instrument Panel

AR82.62-P-7833T Remove/Install Loudspeaker In Instrument Panel







1 Disconnect ground cable of battery
2 Remove cover for loudspeaker

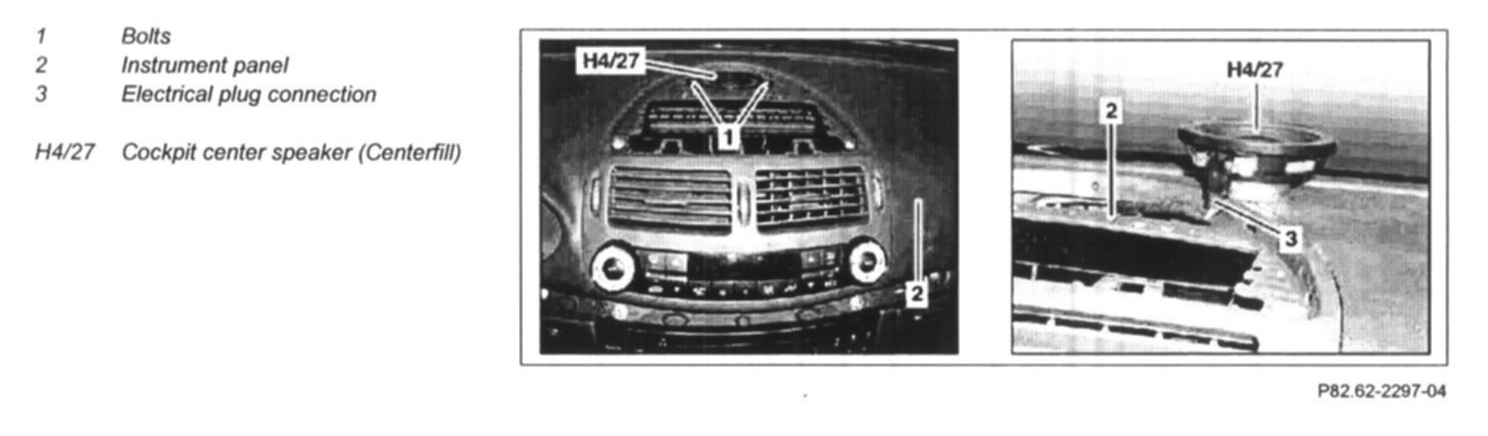

3 Remove bolts (1)
4 Remove center cockpit speaker (Centerfill) (H4/27) from instrument panel (2)

NOTE: Until the electrical connector (3) is accessible

5 Unplug electrical connector (3) and remove center cockpit speaker (Centerfill) (H4/27)
6 Install in the reverse order
