Home >> Mercedes Benz >> 2008 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Service and Repair >> Removal and Replacement >> AR82.60-P-7721T Remove/Install Covering For Radio Display

AR82.60-P-7721T Remove/Install Covering For Radio Display



AR82.60-P-7721T Remove/Install Covering For Radio Display
- Audio 20 CC only

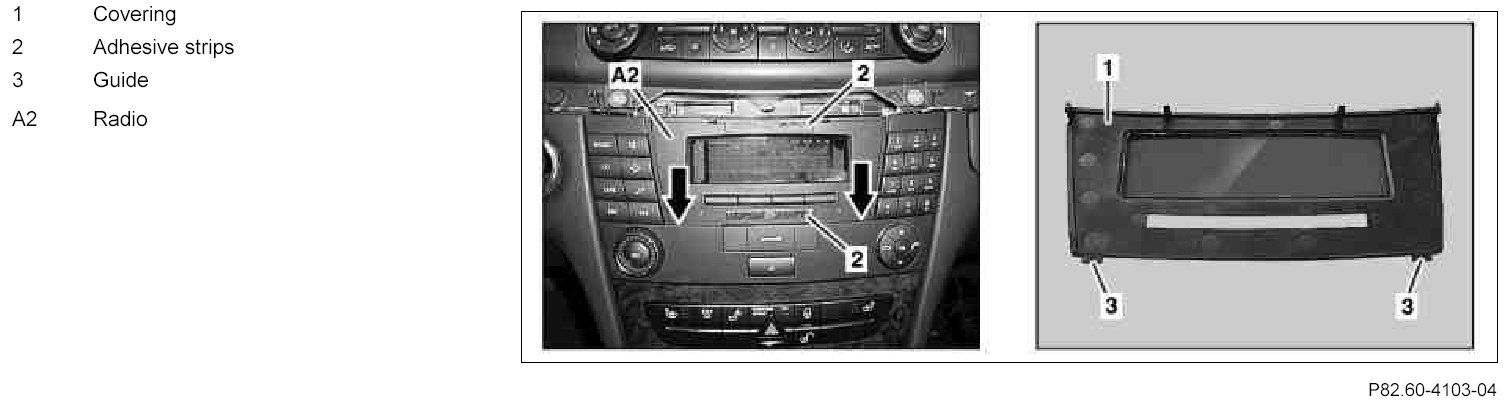

Component Identification:

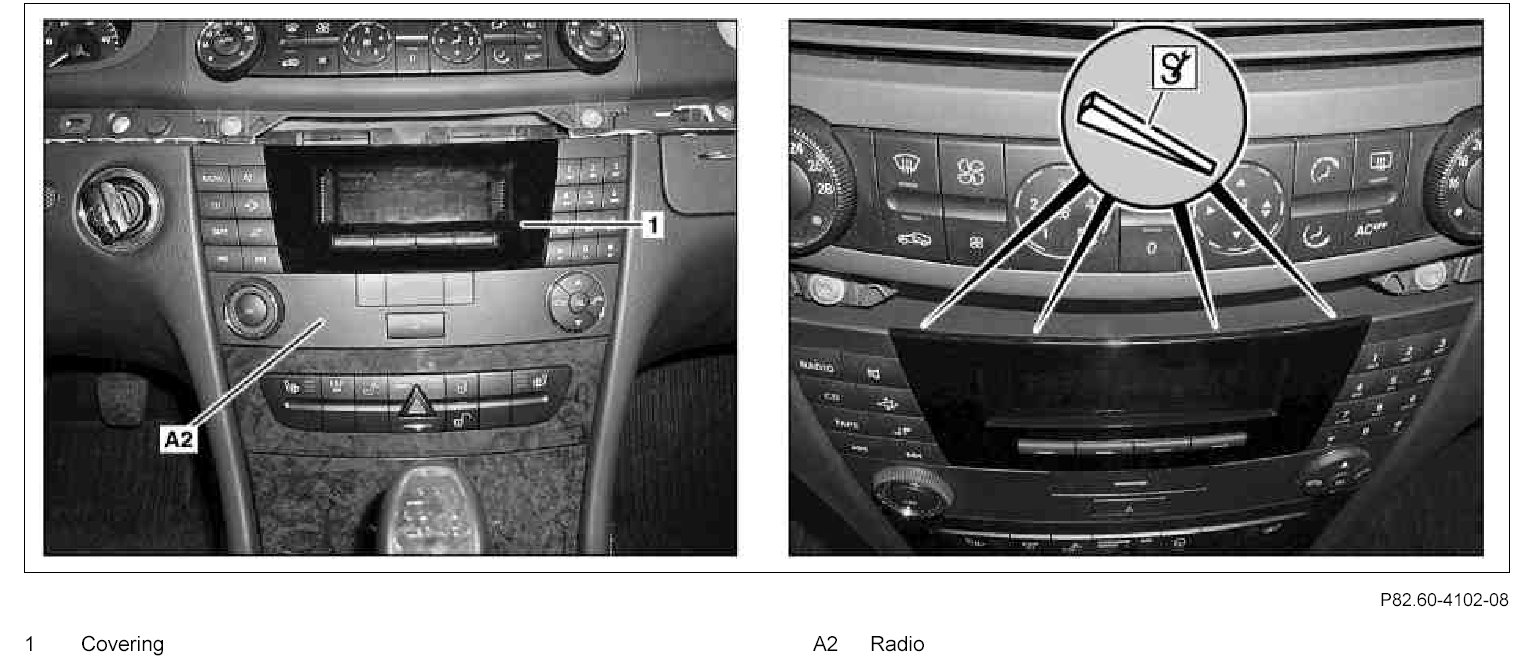

Component Identification:

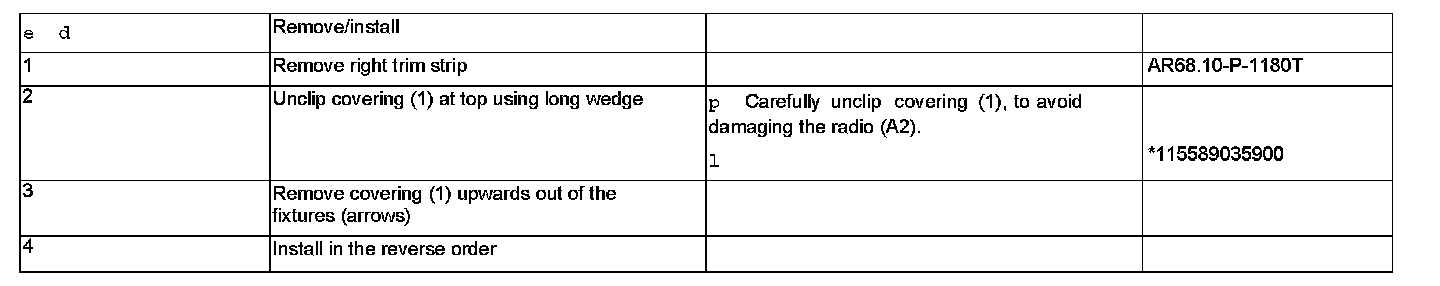

Steps 1 - 4:




Special Tools:
