AR82.60-P-7502T Remove/Install Radio

AR82.60-P-7502T Remove/Install Radio

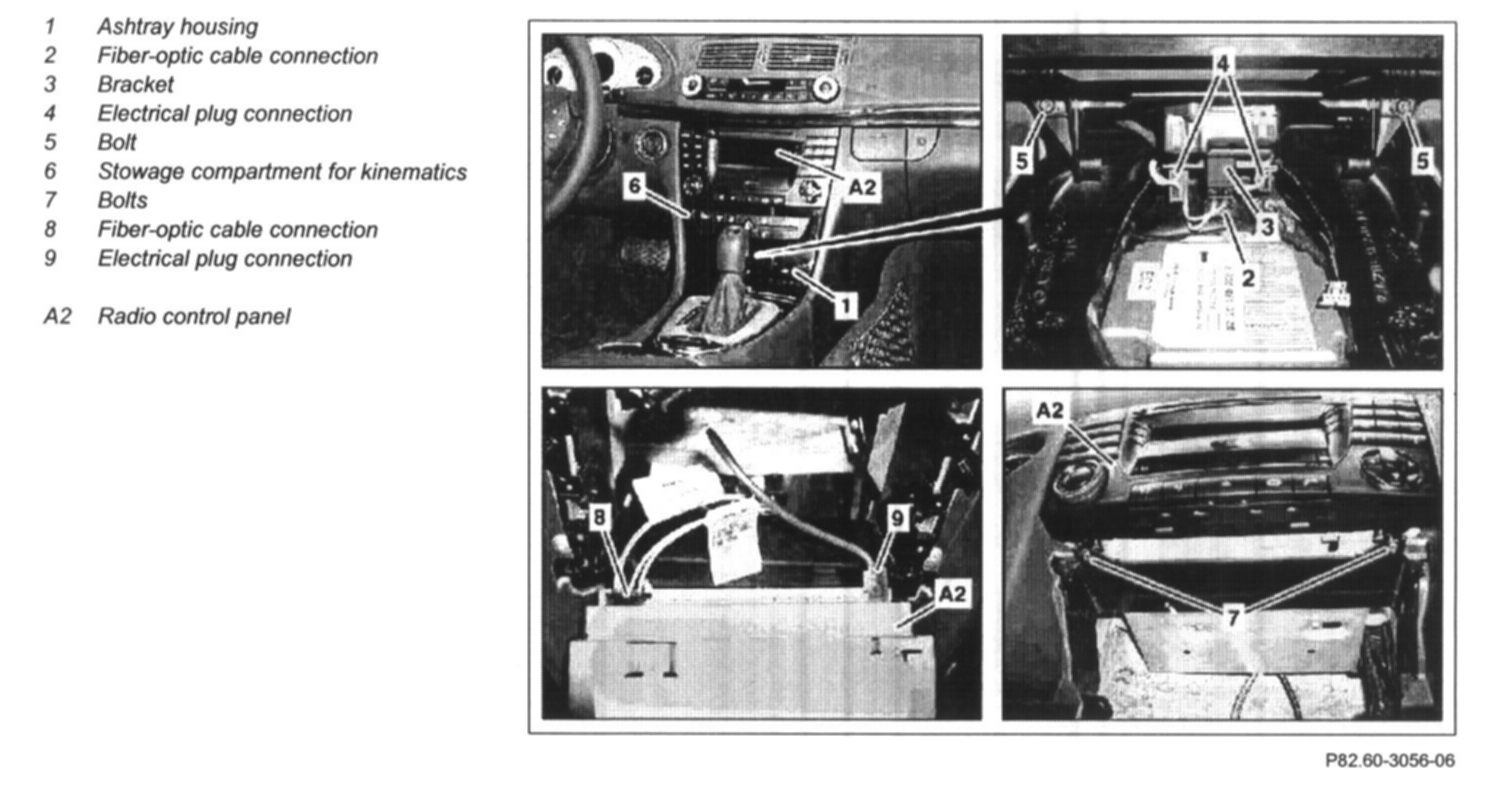

1. Remove ashtray housing (1) from front center console

2. Unclip fiber-optic cable (2) from bracket (3) towards the front
On vehicles with code (819a) CD changer

3. Unclip electrical connector (4) from bracket (3)

NOTE: Number of electrical connectors depend on equipment

4. Unscrew bolts (5)
5. Remove kinematics stowage compartment (6) or CD changer from center console until screws (7) are accessible and put to one side

NOTE: Depending on equipment

6. Undo screws (7) in anticlockwise direction up to stop
7. Pull out radio operating module (A2) from center console until the fiber optical cable coupling (8) and electrical connector (9) are accessible
8. Unplug fiber-optic cable connector (8)
9. Cover fiber optic cable
10. Unplug electrical connection (9) and remove radio operating module (A2)
11. Install in the reverse order
