SI82.64-P-0002A Service Information: Plug Housing For CD Changer



SI82.64-P-0002A Service Information: Plug Housing For CD Changer
- with CODE (819) 6-disk CD changer

When installing, do not connect the new CD changer.

CD changer A 211 820 24 89 with Q4 status (hardware status 47/01, software status 50/01) uses a different plug housing for the MOST connector than the CD changer with Q5 status (hardware status 34/02, software status 50/01).

Damage code: 59 565 **

Text in message field: "MOST plug housing"

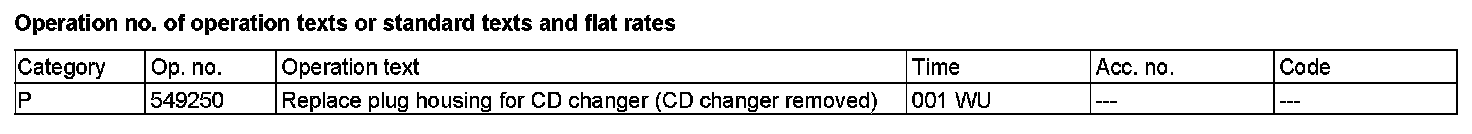

Operation No. Of Operation Texts Or Standard Texts And Flat Rates:

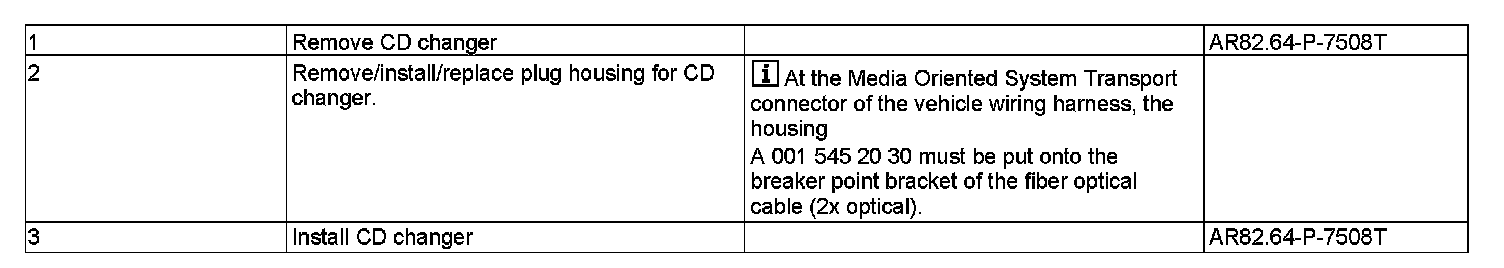

Steps 1 - 3:

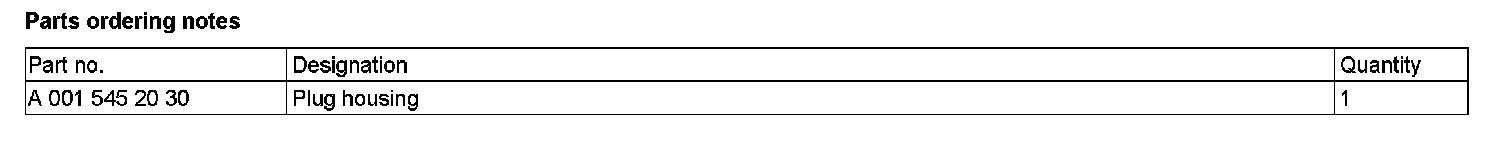

Parts Ordering Notes:
