AR82.62-P-7719T Remove/Install Bass Speaker Amplifier



AR82.62-P-7719T Remove/Install Bass Speaker Amplifier
- with CODE (810) Sound system
- with CODE (924) Bivalent natural gas drive


Component Identification:

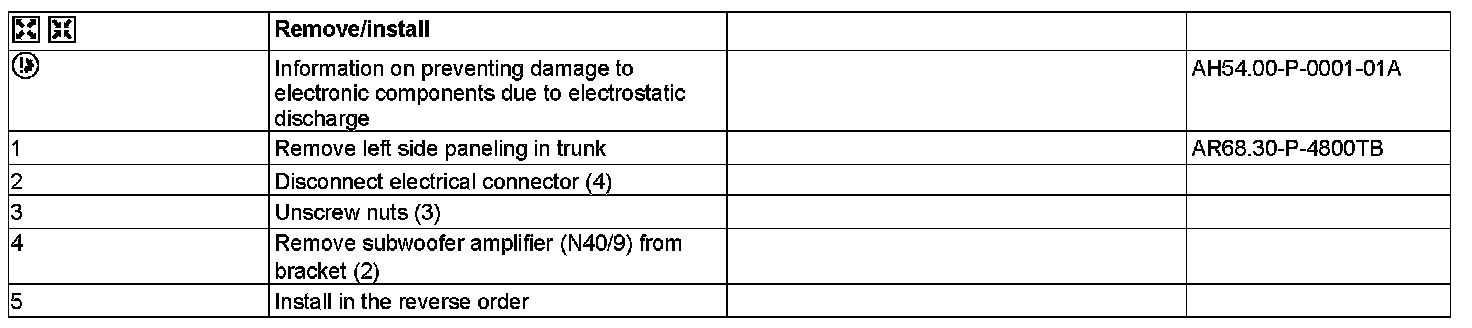

Steps 1 - 5:
