GF82.25-P-2101-02T Operating Unit For Special Signal System, Task

GF82.25-P-2101-02T Operating Unit For Special Signal System, Task
- with CODE (970) police emergency vehicles

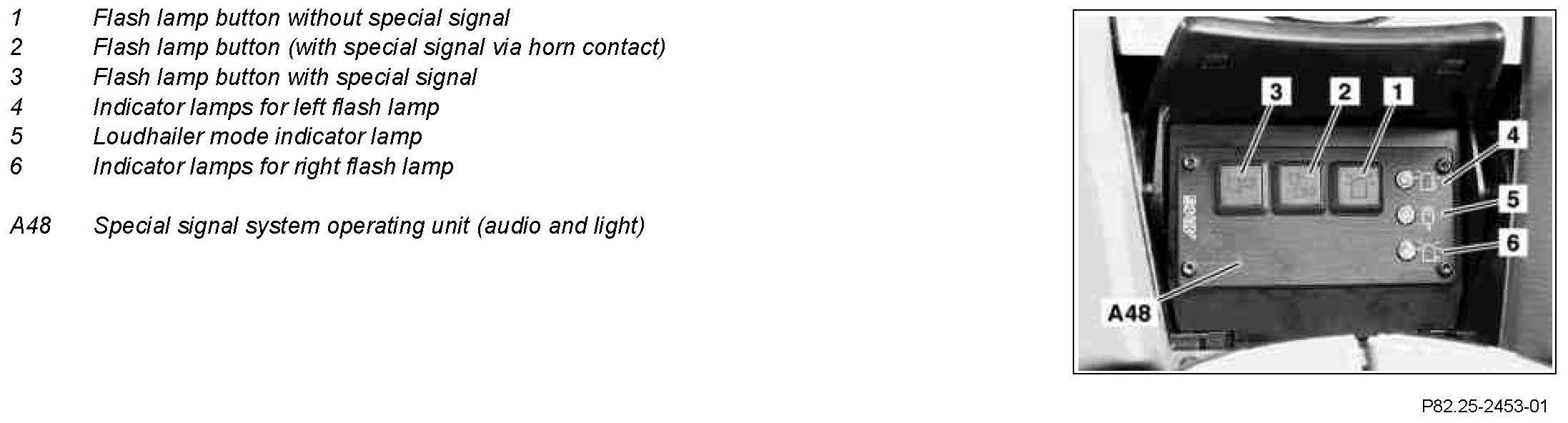

The operating unit with disguised version is shown

Component Identification:

The optical and acoustic signals of the special signal system are controlled via the buttons of the special signal system operating unit (audio and light) (A48).

Flash lamp button without special signal (1):
^ optical signal (priority vehicle warning light)

Flash lamp button (with special signal via horn contact) (2):
^ optical signal (priority vehicle warning light)
^ acoustic signal if the fanfare horns buttons (S110s5, S111s5) are actuated

Flash lamp button with special signal (3)
^ optical and acoustic signal is constantly running


The functions of the button are linked. When one button is actuated, the function of the button that is located to the right next to it is also switched on automatically.
