GF82.25-P-0010-02T Special Taxi System, Networking of Components



GF82.25-P-0010-02T Special Taxi System, Networking Of Components
- with CODE (450) Taxi version
- with CODE (934) Taxi emergency alarm unit








Networking

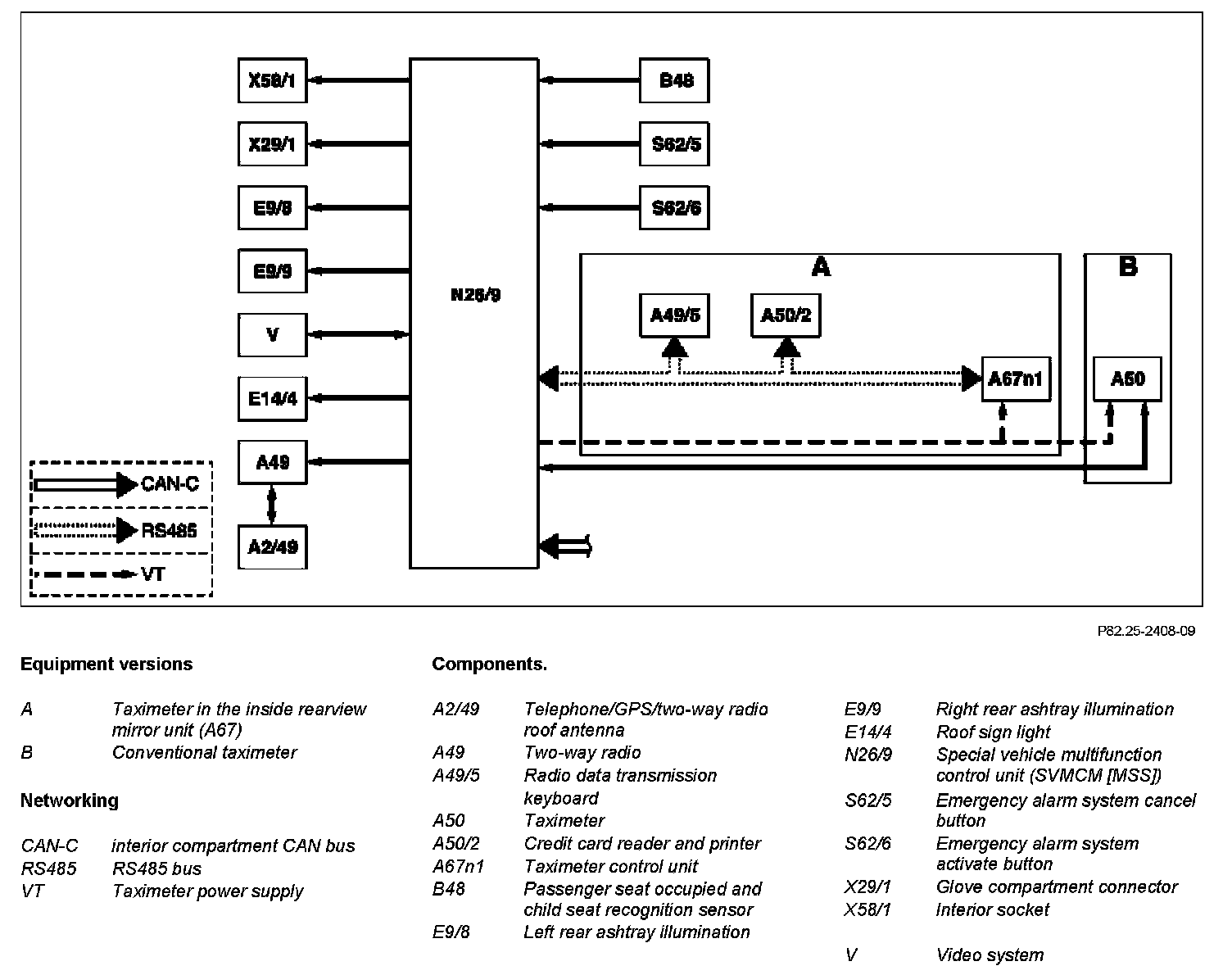

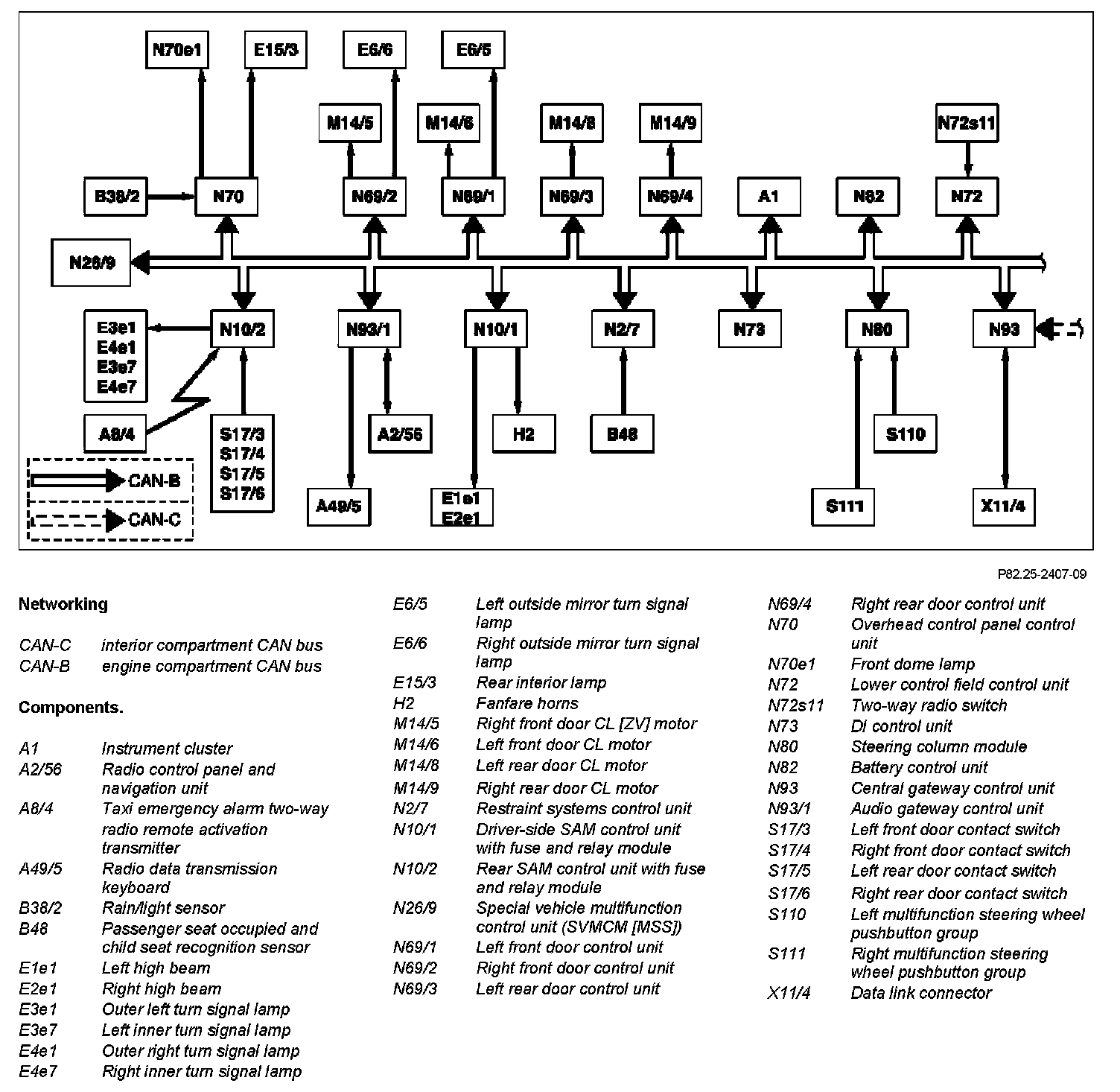

The two illustrations portray the network configurations employed to link the vital components in the special taxi system with taxi emergency alarm system.


Component Identification:




Component Identification:
