AZ82.60-P-0015T Retrofit Rear-Entertainment With Two Screens



AZ82.60-P-0015T Retrofit Rear-Entertainment With Two Screens
- except CODE (861) TV rear screen

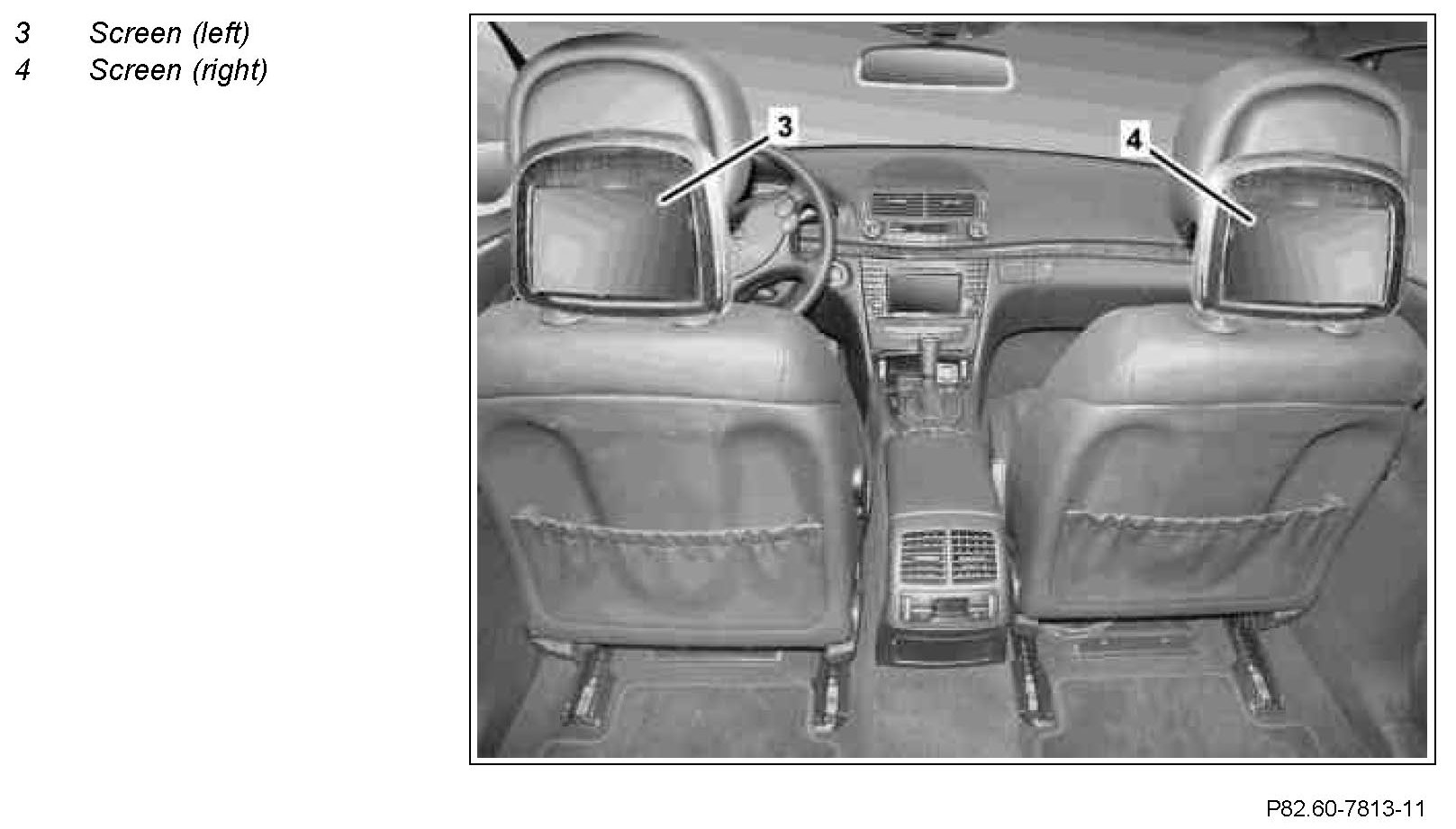

Component Identification:

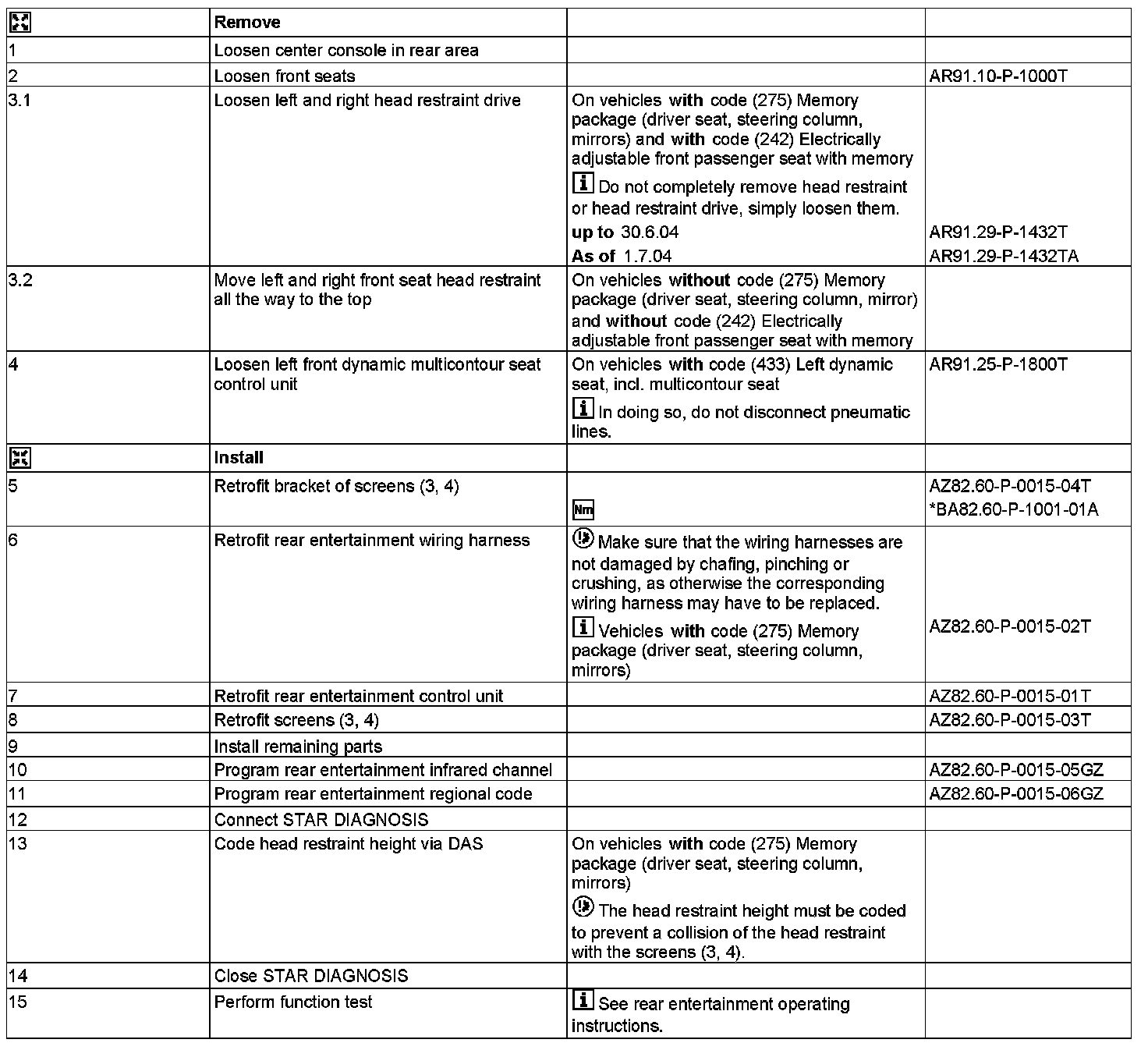

Steps 1 - 15:

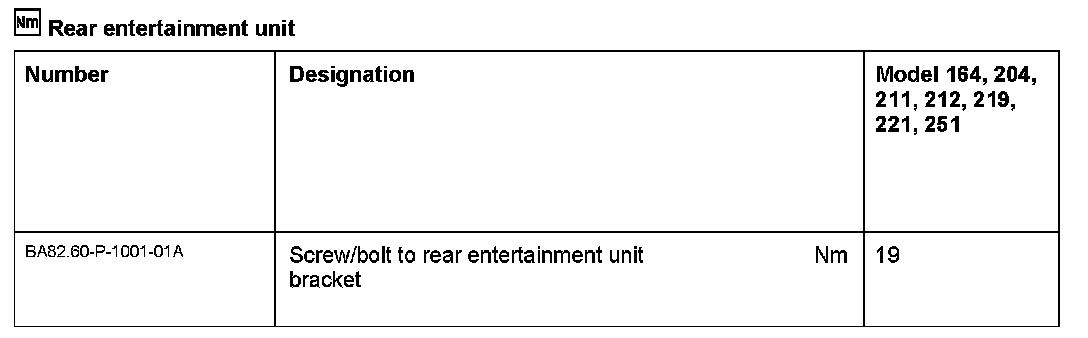

Rear Entertainment Unit:

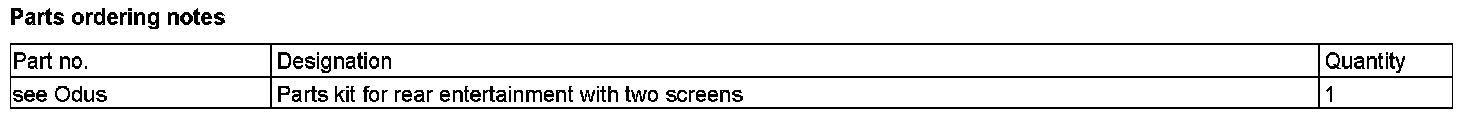

Parts Ordering Notes:
