AZ82.60-P-0007-01T Retrofit Digital TV Tuner Control Unit

AZ82.60-P-0007-01T Retrofit Digital TV Tuner Control Unit
- with CODE (860) TV tuner

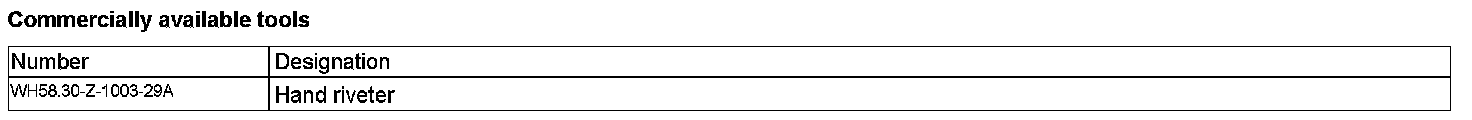

Commercially Available Tools:

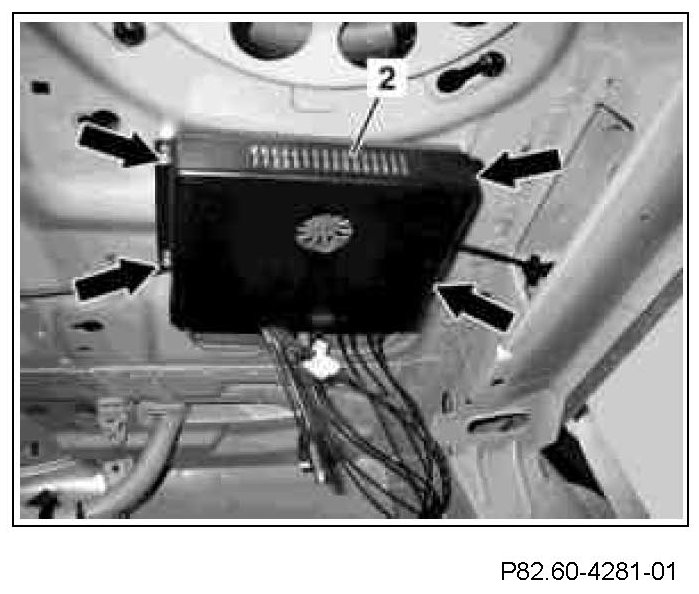

1 Place digital TV tuner (2) as shown under the left rear shelf and mark out the hole pattern (arrow).
2 Rivet the riveting nuts included in the set as specified by DaimlerChrysler below the rear shelf.

When boring the holes care must be taken to ensure that the rear shelf is not damaged.

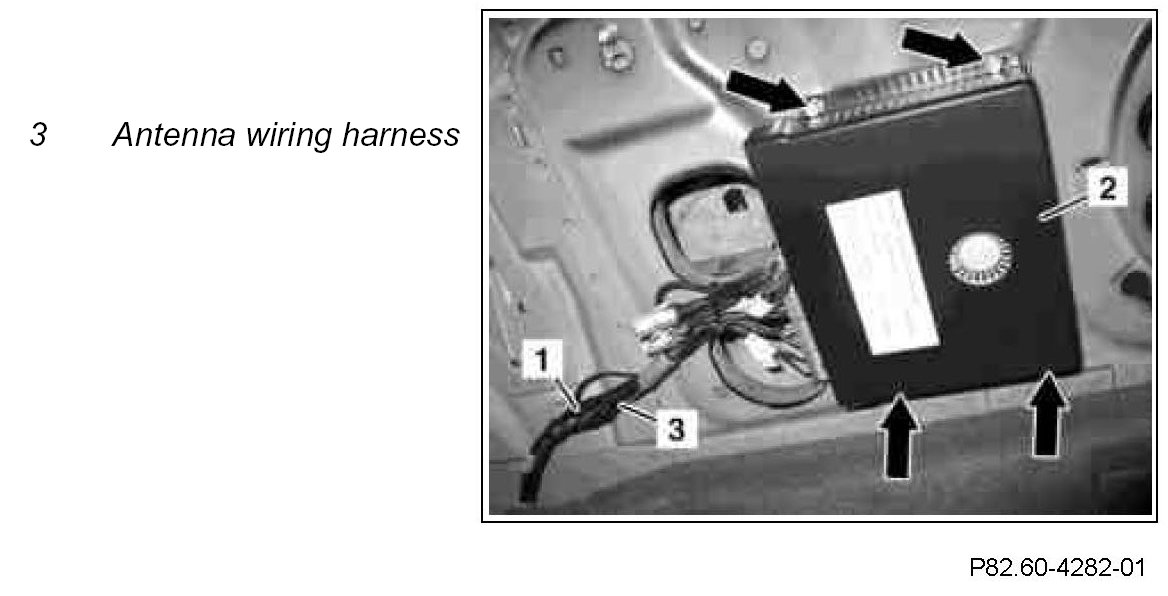

3 Connect the wiring harness to the digital TV tuner (2) and fasten to the TV tuner using the attached screws (arrows).

Component Identification:
