AZ82.60-P-0001-01T Retrofit Ipod Interface Wiring Harness

AZ82.60-P-0001-01T Retrofit IPod Interface Wiring Harness
- MODEL 211.0## 1#
- with CODE (526) COMAND (without navigation)
- except CODE (924) Bivalent natural gas drive
- with CODE (527) COMAND APS (with navigation)

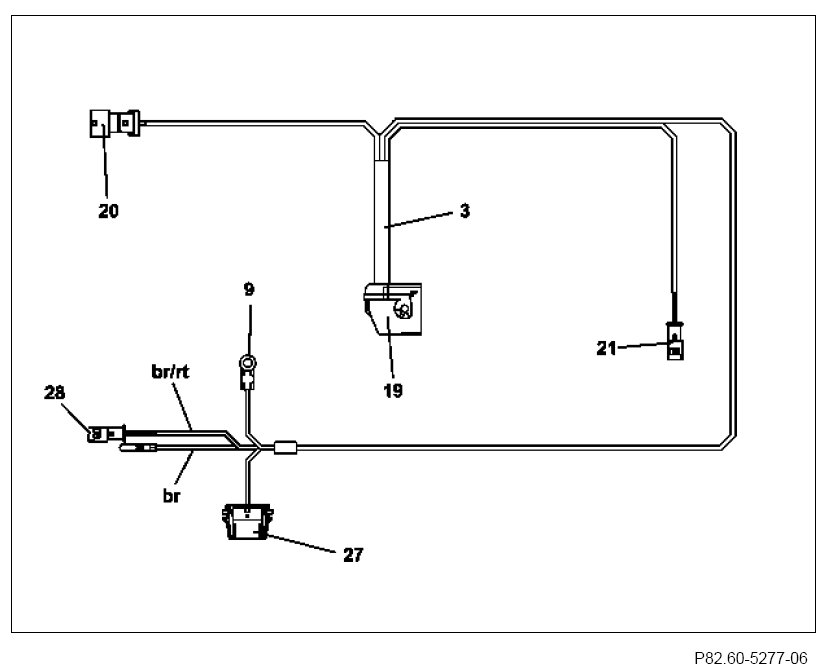

iPod interface wiring harness






3 iPod interface wiring harness
9 Ground connection
19 iPod interface wiring harness plug
20 COMAND operating, display and controller unit plug
21 CAN connector
27 Plug (iPod interface voltage supply)
28 Blue plug
br Brown line (CAN connection)
br/rt Brown/red line (CAN connection)

The iPod interface wiring harness (3) is routed starting at the left of the luggage compartment into the right front footwell. The iPod interface wiring harness (3) is to be routed under the floor covering only. It must be routed and fastened such that any damage and vibration noise is prevented.

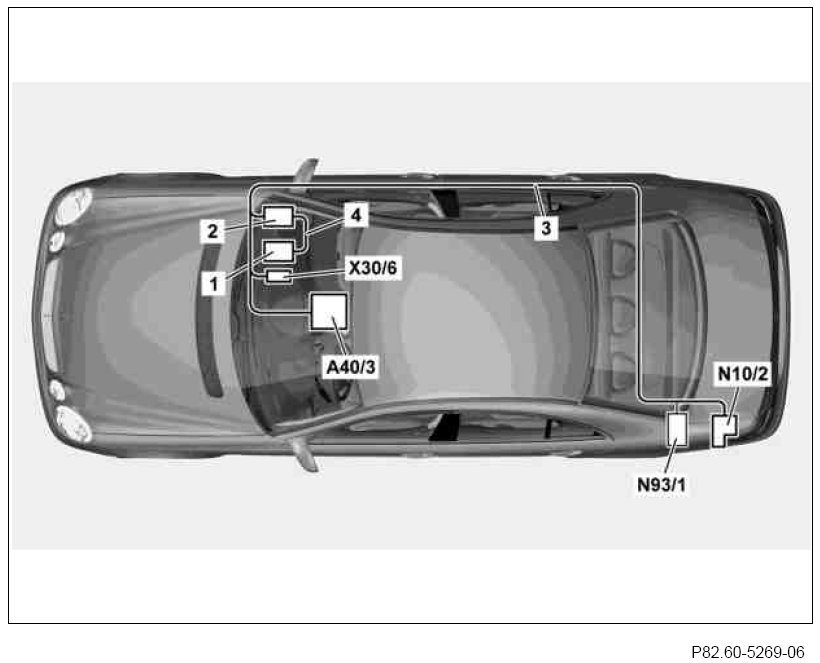

Routing diagram for iPod wiring harness






1 iPod
2 iPod interface
3 iPod interface wiring harness
4 iPod wiring harness
A40/3 COMAND operating, display and controller unit
N10/2 Rear SAM control unit with fuse and relay module
N93/1 Audio gateway control unit
X30/6 Cockpit voltage distributor (CAN) connector






1 Unpin the brown/red line from the blue connector (28) of the iPod interface wiring harness (3).
Blue plug (28) is still required.

2 Detach connector housing (6) from audio gateway control unit (N93/1).
3 Detach plug (7) from connector housing (6).
4 Unpin brown (br) line from plug (7) of vehicle's wiring harness and insert brown (br) line of iPod interface wiring harness (3) into same contact cavity of plug (7).
5 Unpin brown/red line from plug (7) of vehicle's wiring harness and insert brown/red line (br/rt) of iPod interface wiring harness (3) into same contact cavity of plug (7).
6 Join plug (7) and connector housing (6).
7 Insert brown (br) and brown/red (br/rt) line of vehicle's wiring harness into any contact cavity of the blue plug (28) and strap down to given wiring harness.
Insert brown (br) and brown/red (br/rt) line of vehicle's wiring harness into blue plug, to avoid any short circuiting.

8 Join connector housing (6) to audio gateway control unit (N93/1).
Do not connect the blue connector housing supplied but strap it down onto wiring harness.

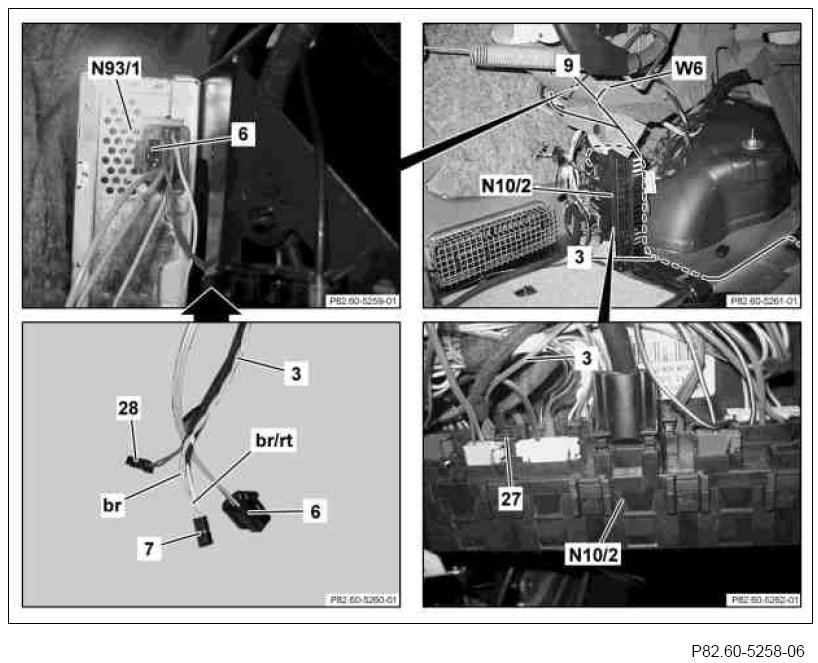

9 Insert plug (27) of iPod interface wiring harness (3) into contact cavity 27 of the rear SAM control unit with fuse and relay
Plug position 27 is mechanically coded for the plug (27) of the iPod interface wiring harness (3).
10 Connect ground connection (9) of iPod interface wiring harness (3) to ground (left wheelhouse in luggage compartment) (W6).






11 Connect relay (24) contained in parts kit to socket C of the rear SAM control unit with fuse and relay module (N10/2).
12 Insert the 7.5 A fuse (25) included in the parts kit into plug position 5 of the rear SAM control unit with fuse and relay module (N10/2).

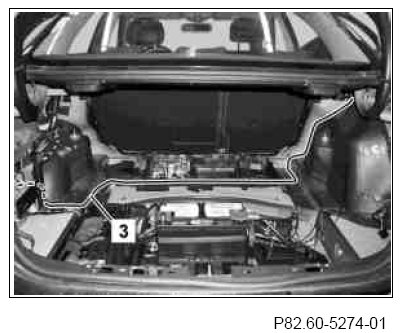

13 Route the iPod interface wiring harness (3) as shown from the luggage compartment into the interior and fasten in place using felt strap.






14 Route iPod interface wiring harness (3) into the interior onto the right wheel arch as shown.

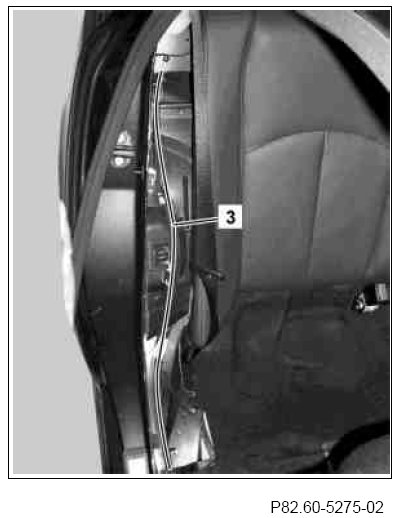

15 Route iPod interface wiring harness (3) under the floor covering and forwards into the right footwell.






16 Route iPod interface wiring harness (3) as shown into the footwell and attach to given wiring harness.
17 Detach cockpit voltage distributor (CAN) connector (X30/6).

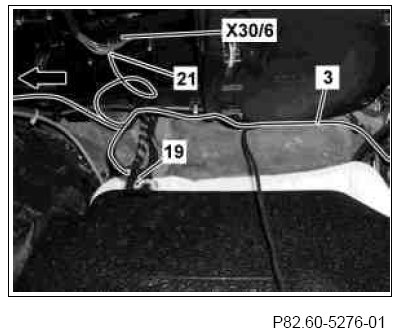

18 Join CAN plug (21) of iPod interface wiring harness (3) to free plug position of cockpit voltage distributor (CAN) connector (X30/6).
Connect CAN plug (21) to any free plug position.

19 Connect cockpit voltage distributor (CAN) connector (X30/6).

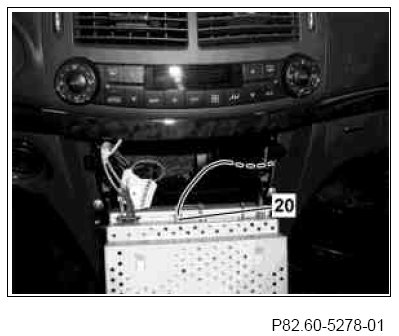

20 Route branch-off line of iPod interface wiring harness (3) as shown into the radio recess (see arrow).
The plug for the iPod interface wiring harness (19) will be connected at a later stage to the iPod (2) interface.






21 Disconnect connector of on-board AUX cable to COMAND operating, display and controller unit (A40/3) and strap down wiring harness.
22 Connect plug (20) of branch-off line to the COMAND operating, display and controller unit (A40/3).
