E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Collision Avoidance and Parking Assist Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics

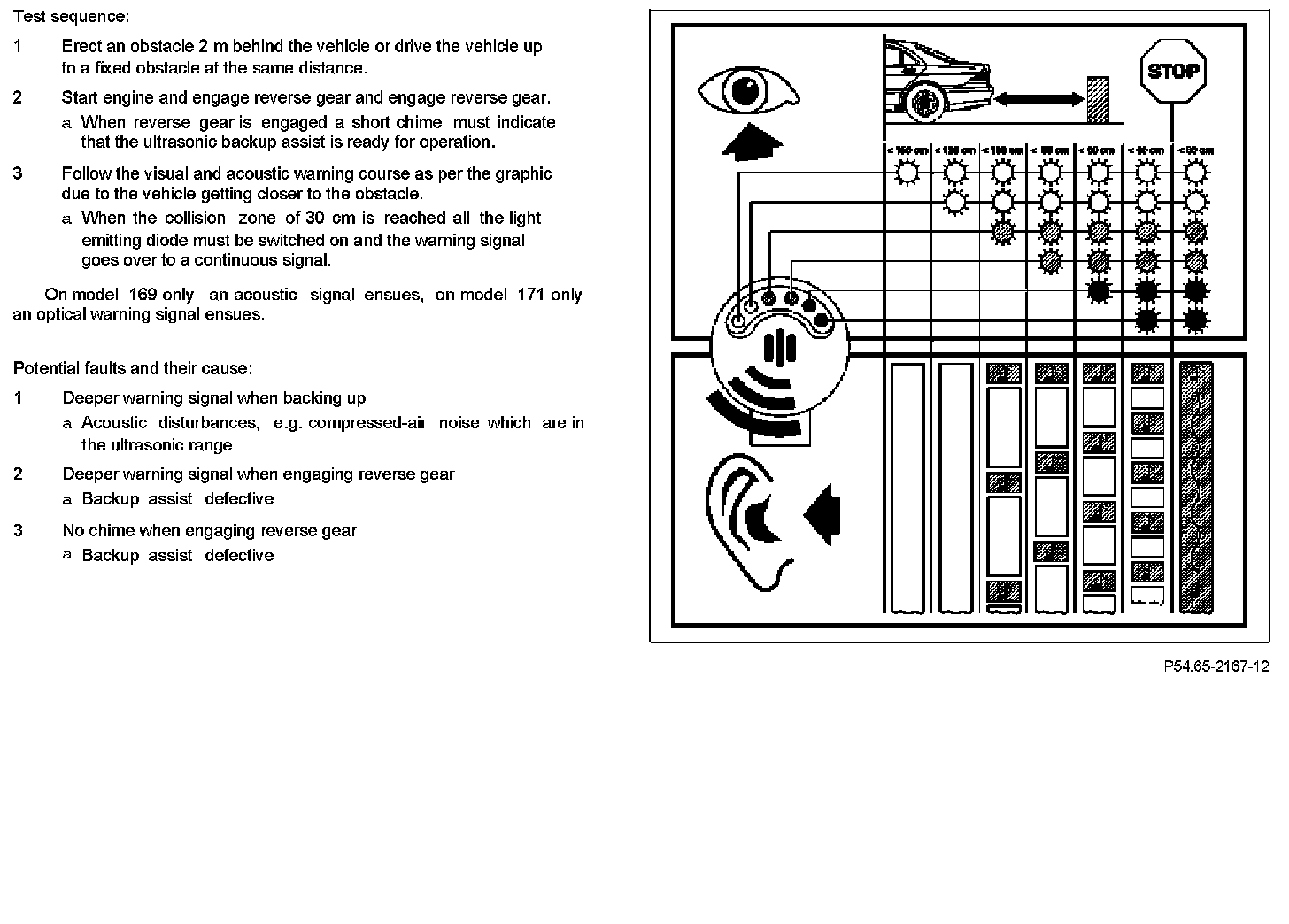

AZ54.65-P-0001-07A Check Ultrasonic Backup Assist
Component Identification:
