AR54.65-P-0001T Remove/Install Parktronic System (PTS) Sensors In Front Bumper

AR54.65-P-0001T Remove/Install Parktronic System (PTS) Sensors In Front Bumper
- with CODE (220) Parktronic system (PTS)

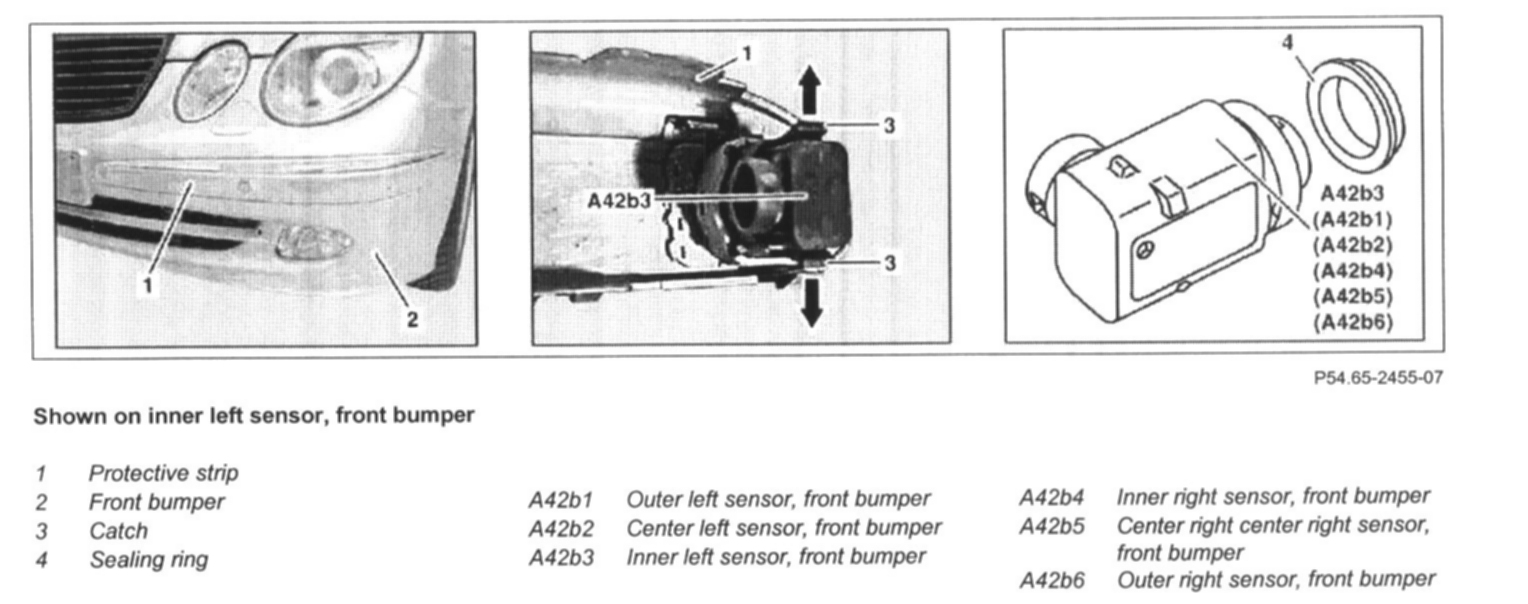

Shown 0n Inner Left Sensor, Front Bumper:

1 Disconnect ground cable of battery
2 Remove ram strip (1) from front bumper (2)
3 Unlock locks (3) in direction of arrow using unlocking tool.

See "Special Tools" given below.

4 Remove inner left sensor, front bumper (A42b3) from the protective strip (1)

NOTE: Installation: Check sealing ring (4) and replace if damaged.

5 Install in the reverse order

Special Tools

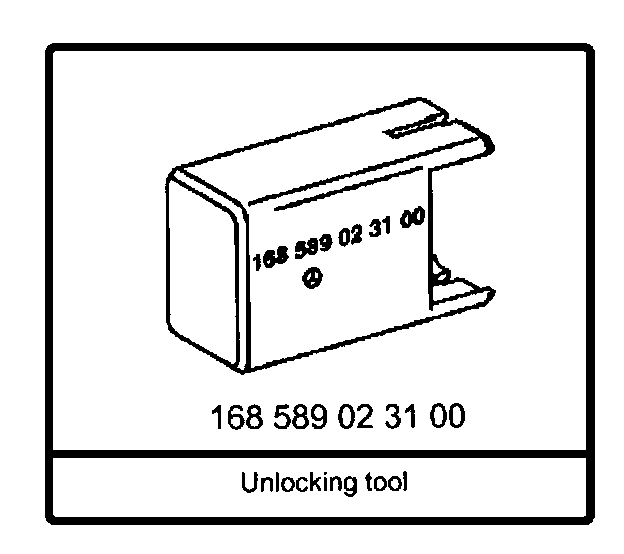

Unlocking Tool, P/N # 168 589 02 31 00:
