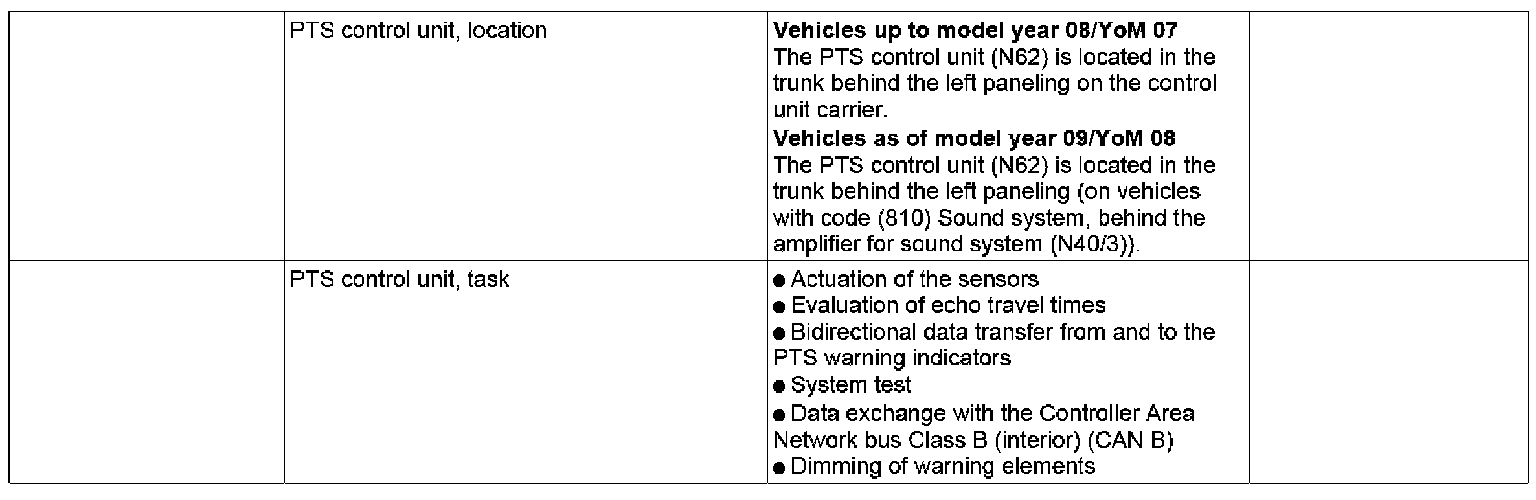

GF54.65-P-4100T PTS Control Unit, Location/Task



GF54.65-P-4100T PTS Control Unit, Location/task
- with CODE (220) Parktronic system (PTS)

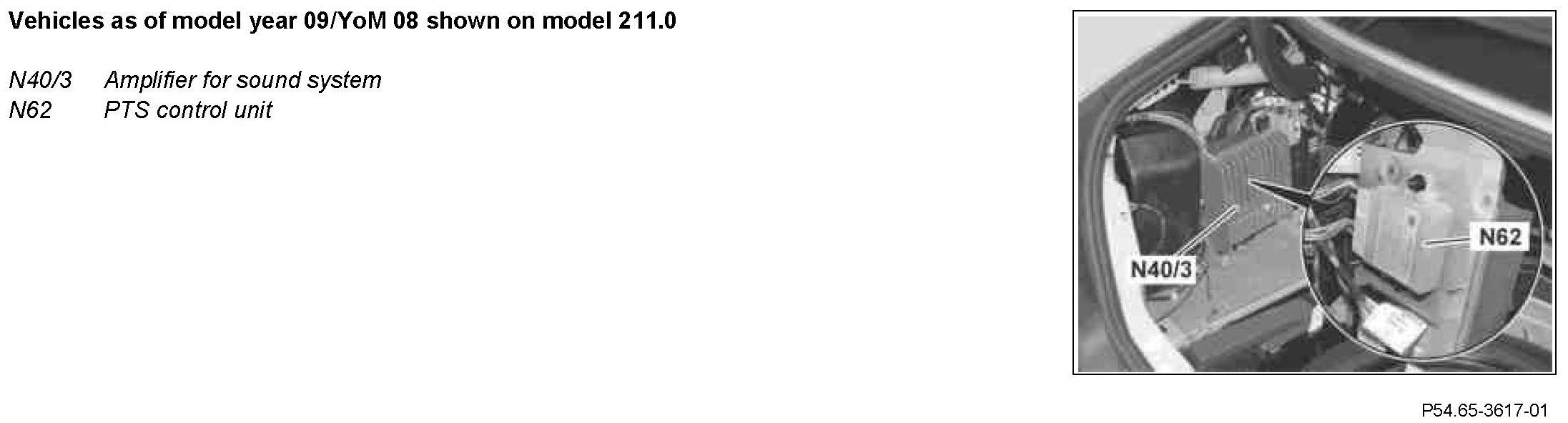

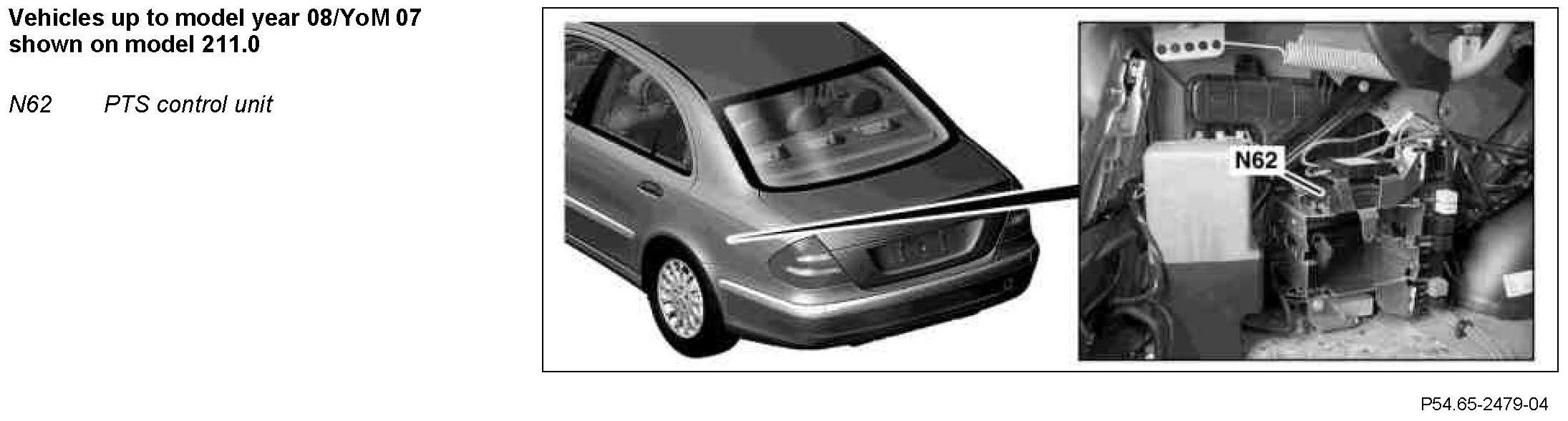

Component Identification:





Component Identification:
