AR82.70-P-8918T Remove/Install Bracket for Portable CTEL Telephone

AR82.70-P-8918T Remove/Install Bracket for Portable CTEL Telephone
- with CODE (380) Preinstallation for MB phone "CTEL", complete
- with CODE (381) CP-light telephone system
- with CODE (382) MB telephone "STEL" in armrest
- with CODE (383) CP-high telephone system
- with CODE (388) "Portable CTEL" UPCI telephone system

Shown On Equipment Specification With "Portable CTEL":

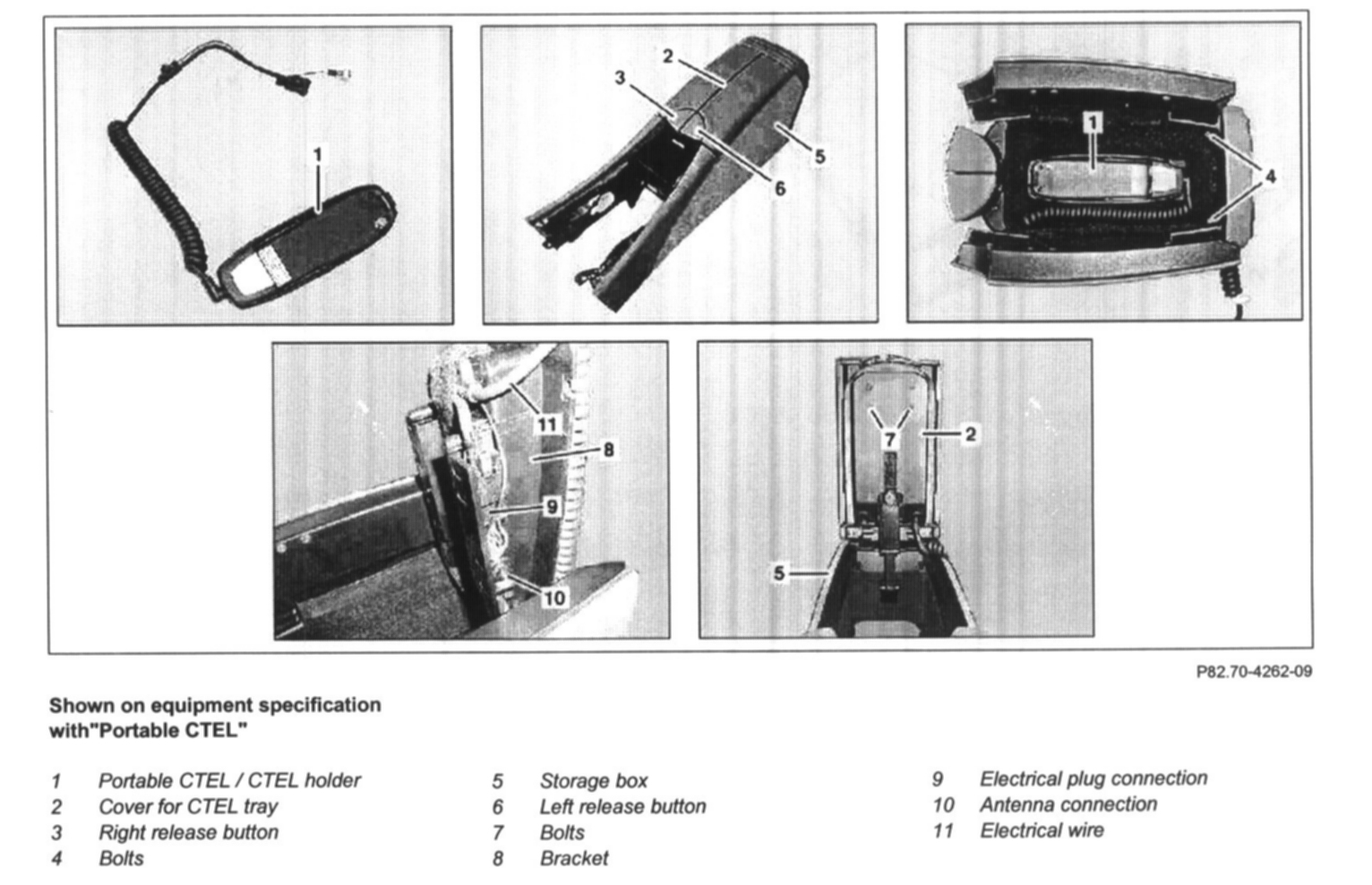

1 Remove telephone handset or portable CTEL from portable CTEL / CTEL holder (1)

NOTE: Depending on equipment

2 Disconnect ground cable of battery
3 Open cover for CTEL tray (2)

NOTE: Press right release button (3)

4 Unscrew bolts (4)
5 Open stowage box (5)

NOTE: Actuate left unlock button (6)

6 Remove bolts (7)
7 Close stowage box (5)

NOTE: Cover for CTEL tray (2) remains open.

8 Unclip console (8) upwards from CTEL tray and fold up to rear

NOTE: Until electrical connector (9) is accessible

See "Special Tools" given below.

9 Disconnect plug and socket connection (9)
10 Disconnect antenna connector (10)
11 Remove electrical cable (11) at console (8)
12 Remove portable CTEL/ CTEL Holder (1) from console (8)
13 Install in the reverse order

Special Tools

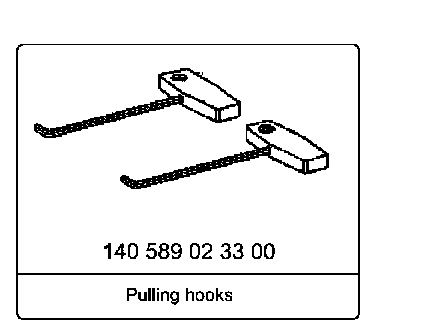

Pulling Hooks, P/N # 140 589 02 33 00:
