AN82.62-P-0001-04TXZ Retrofit Antenna Line

AN82.62-P-0001-04TXZ Retrofit Antenna Line

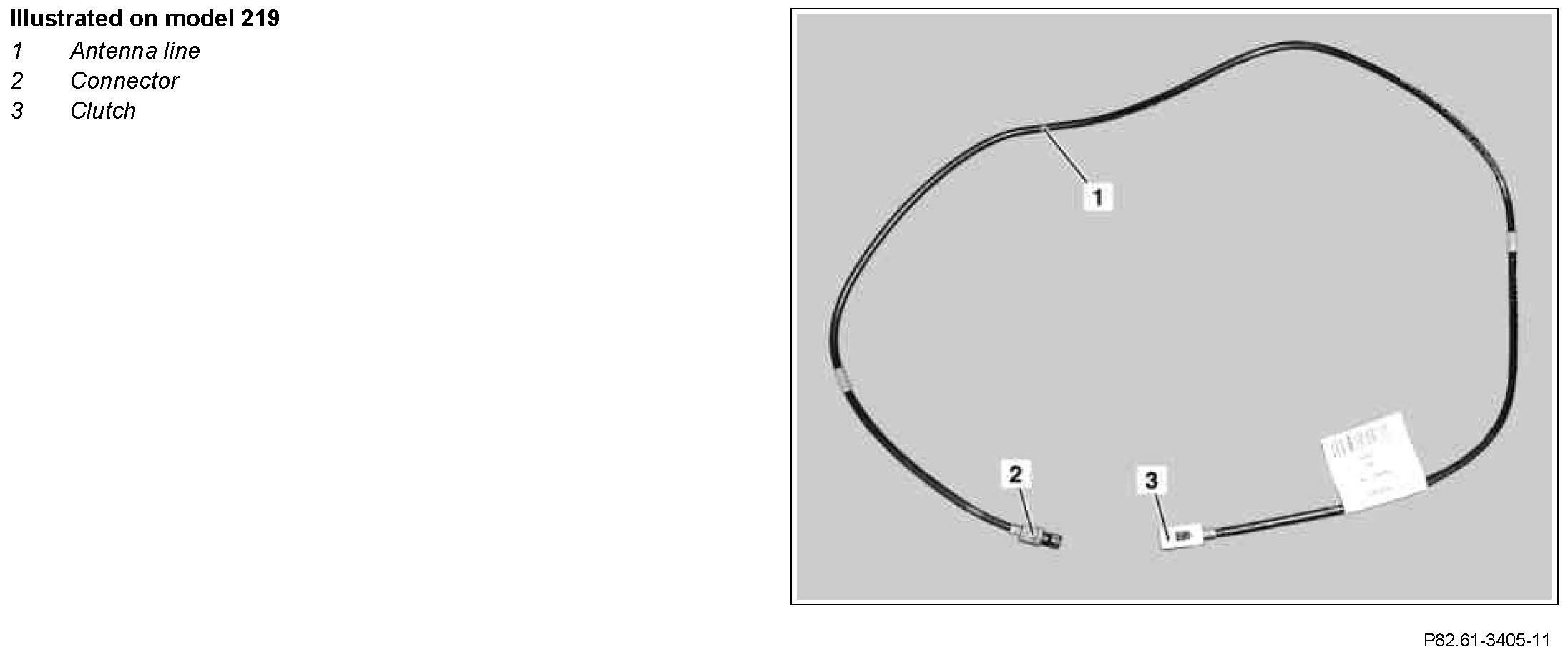

Component Identification:

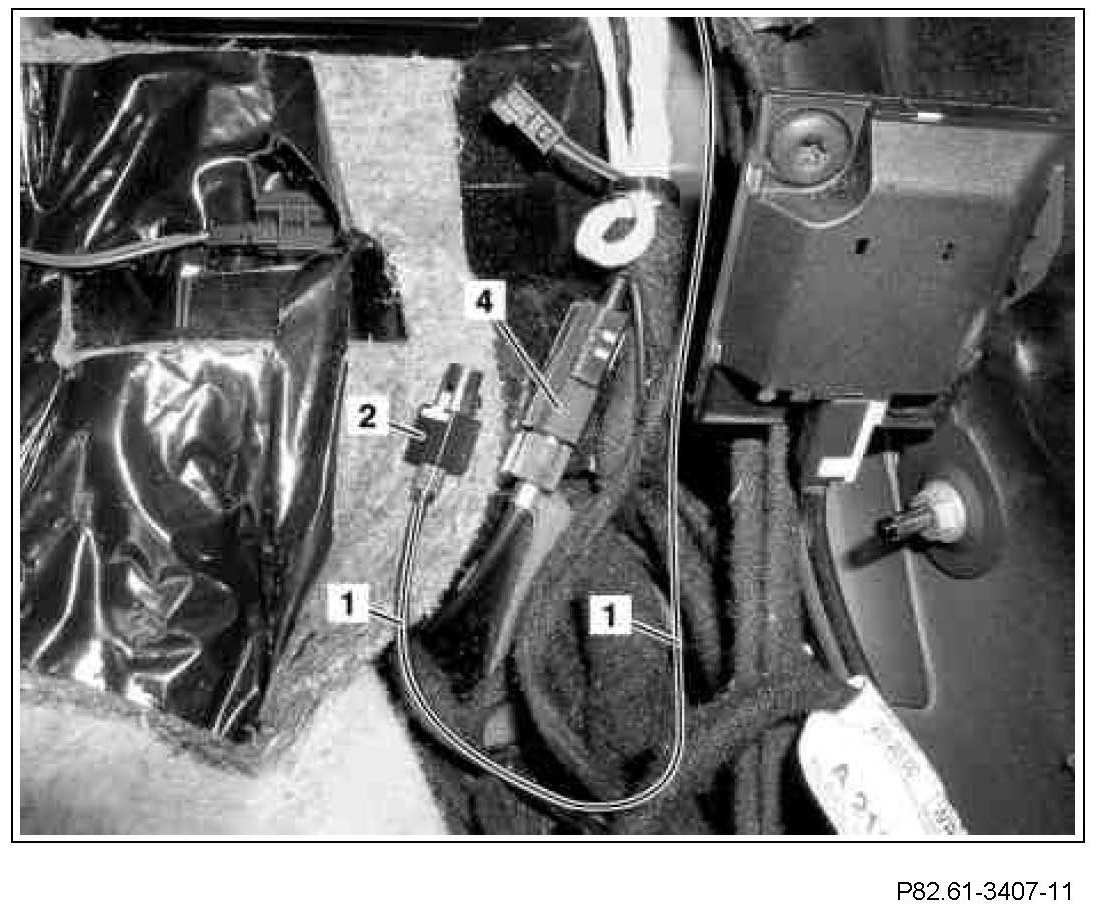

The separation point of the antenna line is located on the left wheelhouse, above the left rear entrance.

1 Detach standard antenna plug connector (4), insulate connector using felt tape and strap down (no longer required).
2 Connect new plug connector (2) of new antenna line (1) with standard coupling of antenna connector (4).
3 Route new antenna line (1) along existing lines into left of luggage compartment and fasten in place.

Shown on model 219

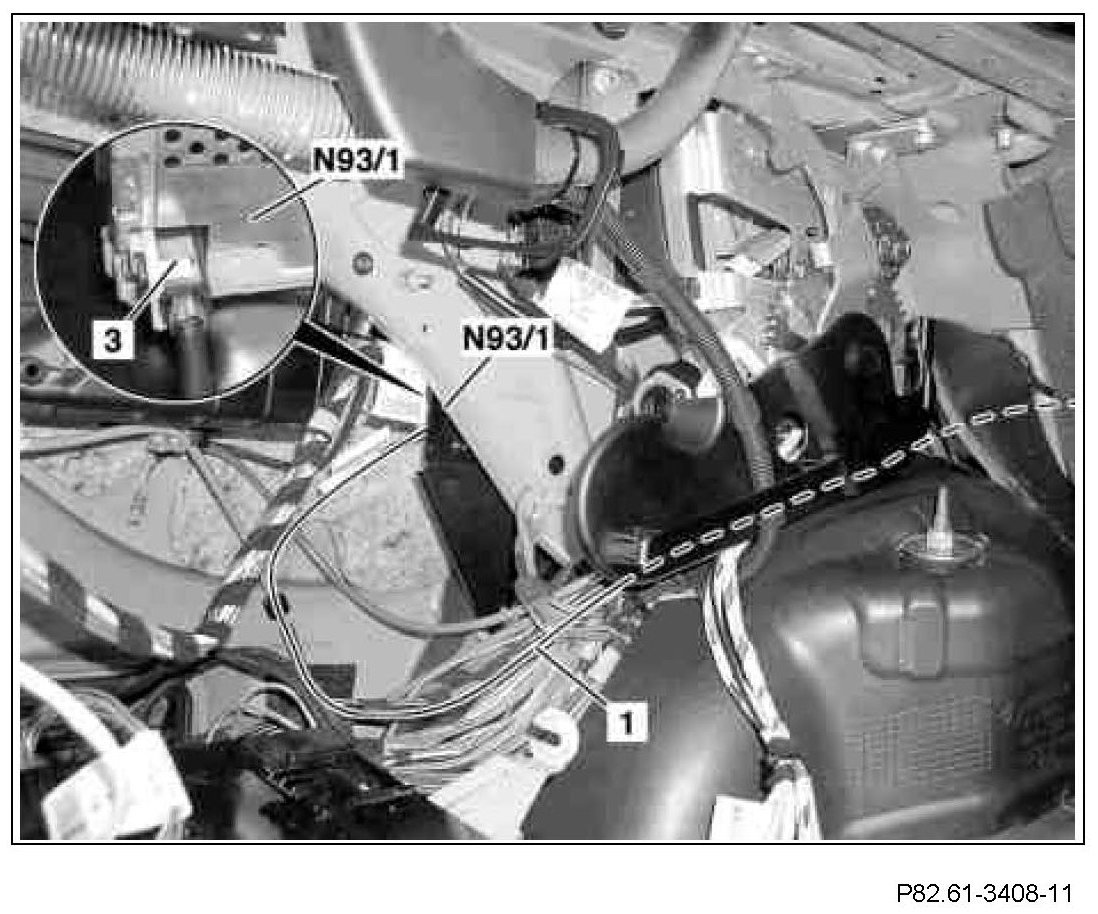

4 Route antenna line (1) further along existing lines to the audio gateway control unit (N93/1) and fasten in place.
5 Connect coupling (3) of new antenna line (1) to audio gateway control unit (N93/1).

The connection at the audio gateway control unit (N93/1) is coded.

Shown on model 219
