AR82.95-P-0004T Remove/Install Tele-Aid Emergency Call System Backup Antenna

AR82.95-P-0004T Remove/Install Tele-Aid Emergency Call System Backup Antenna
- with CODE (383b) CP-high telephone system

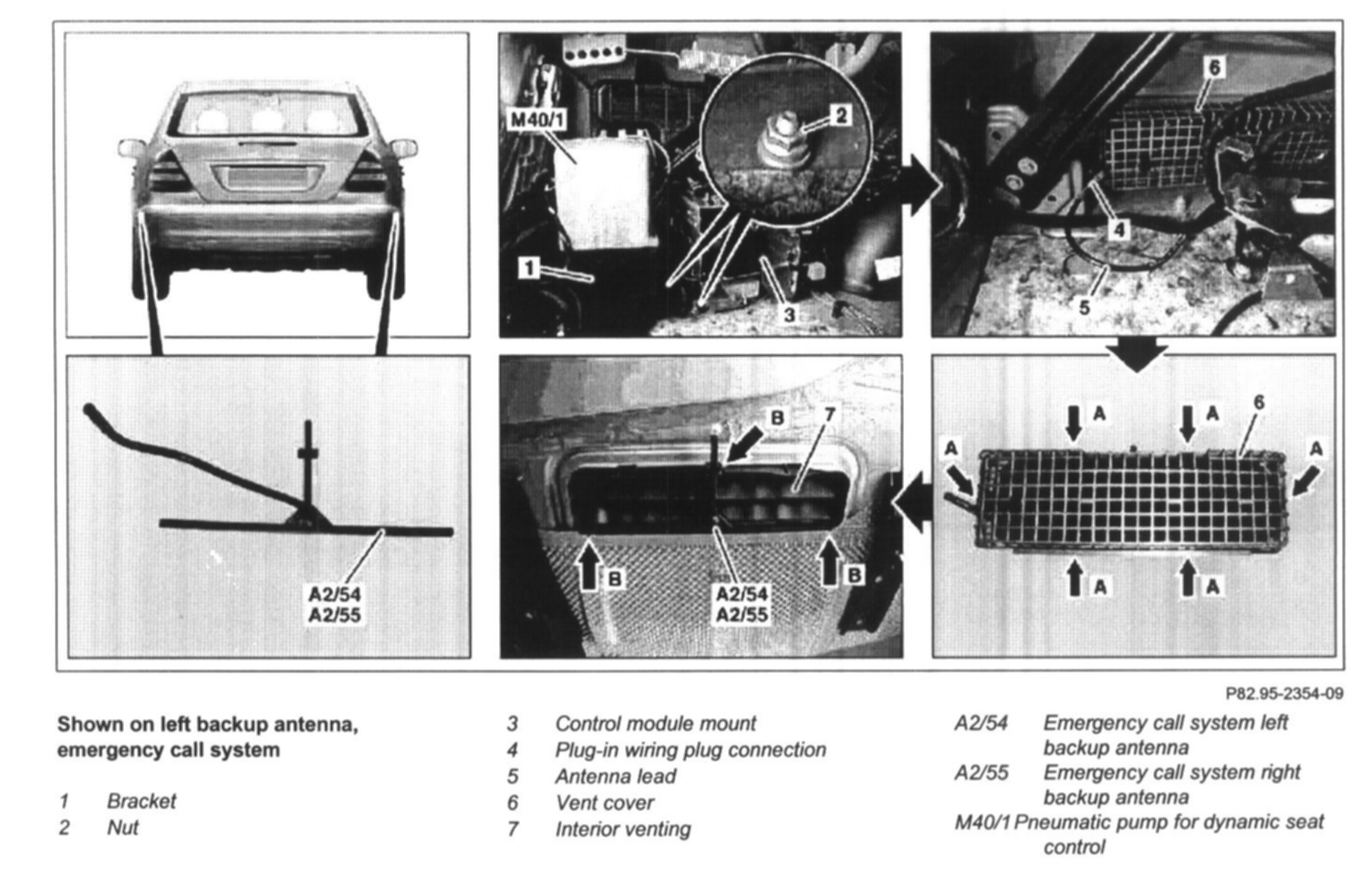

Shown On Left Backup Antenna, Emergency Call System:

1 Disconnect ground cable of battery
2 Remove rear bumper
3 Remove pneumatic pump for dynamic seat control (M40/1) with bracket (1) from above and put to one side
- Only when removing left backup antenna, emergency call system (A2/54)
4 Unscrew nut (2) and put control module holder (3) to one side
- Only when removing left backup antenna, emergency call system (A2/54)
5 Disconnect electrical connector (4) from antenna line (5)
6 Unclip ventilation grille (6) from quarter panel at catches (arrows A) using suitable screwdriver
7 Remove antenna line (5) from ventilation grille (6)
8 Unclip latching hooks (arrows B) of left backup antenna, emergency call system (A2/54) or right backup antenna, emergency call system (A2/55) and remove from interior vent (7)
9 Install in the reverse order
