Home >> Mercedes Benz >> 2008 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antenna >> Antenna, Phone >> Service and Repair >> AR82.70-P-8953T Remove/Install Antenna Splitter

AR82.70-P-8953T Remove/Install Antenna Splitter



AR82.70-P-8953T Remove/Install Antenna Splitter
- with CODE (383) CP-High telephone system
- with CODE (498) Japan version
- except CODE (494) USA version
- Emergency call system antenna splitter

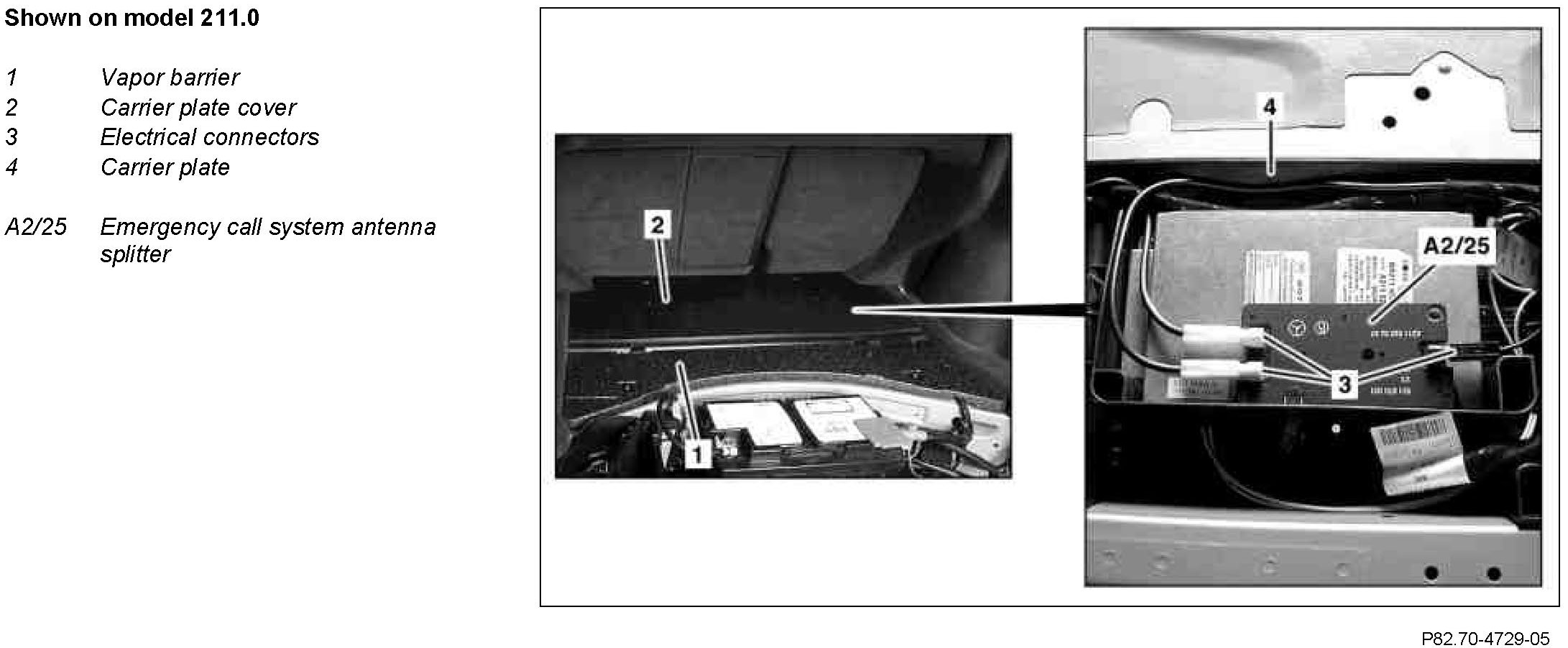

Component Identification:

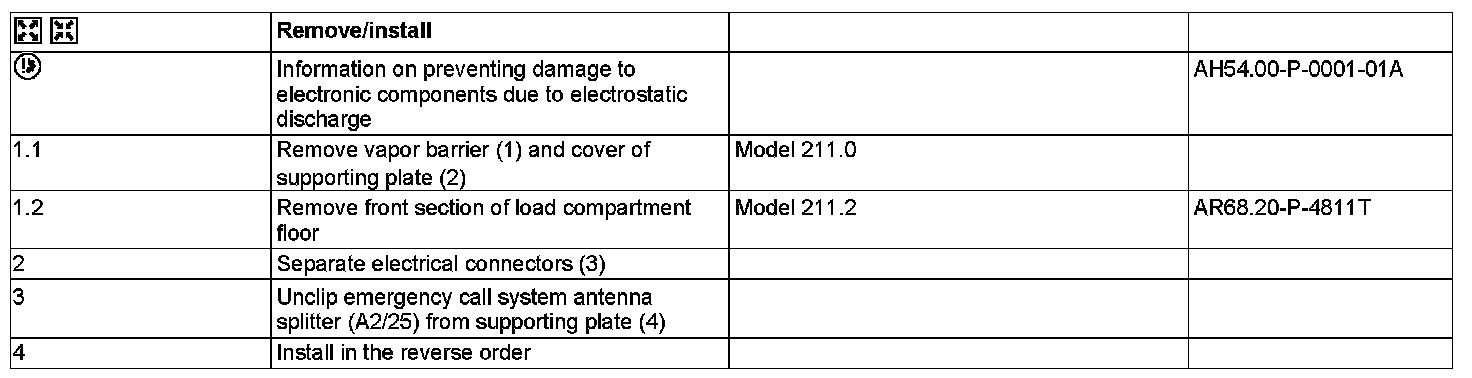

Steps 1.1 - 4:
