722.9 (7-gear) ETC2 as of 2008

Component Y3/8s1 (Selection range sensor (VGS)) is not learned.


Possible cause:

- Y3/8s1 (Selection range sensor (VGS))
Affected functions:

- Automatic transmission Function

-------------------------------------------------

Test 1: Remedial action if component Y3/8s1 (Selection range sensor (VGS)) is not taught in

1. Remedial action if component Y3/8s1 (Selection range sensor (VGS)) is not taught in
Customer complaint

- It is not possible to teach in the selection range sensor after removing/installing component Y3/8 (Electric control unit (VGS)).An error message occurs during initial startup with STAR DIAGNOSIS, although the shift rod is adjusted correctly.
- The error message reads: the prerequisites are not fulfilled or the peripherals are not operational.
Cause

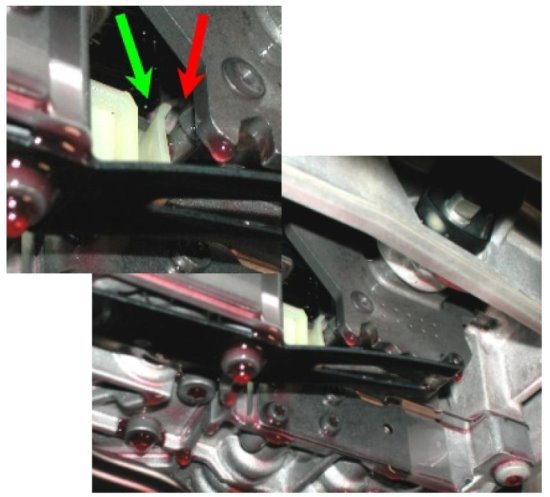

- When installing component Y3/8 (Electric control unit (VGS)), the retaining bolt of the detent plate was not inserted into the plastic bracket of the selector range valve.
Remedy

- Remove component Y3/8 (Electric control unit (VGS)).
- Install component Y3/8 (Electric control unit (VGS)), ensuring that the retaining bolt is inserted into the plastic bracket of the selector range valve.
- Teach in component Y3/8s1 (Selection range sensor (VGS)).
End of information
