[4] Check system 'Starter control'.: Signal line is interrupted.

[4] Check system 'Starter control'.: Signal line is interrupted.

Test 1: Test starter control.

1. Test starter control.

Test 1.1: Arrangement of fuses N10/1 (Driver-side SAM control unit with fuse and relay module)

Test 1.2: Arrangement of relays N10/1 (Driver-side SAM control unit with fuse and relay module)

Test 1.3: Guided test

Test 1.4: Test relay N10/1kL (Starter relay).

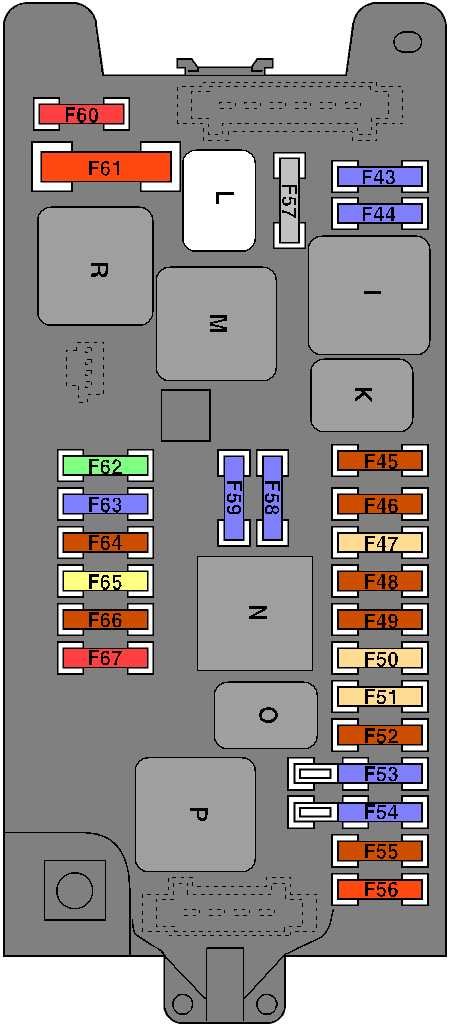

1.1. Arrangement of fuses N10/1 (Driver-side SAM control unit with fuse and relay module)
Note

- WIS is not available on this system.
- It is not possible to display the requested WIS document [ gf5415p125603tm ].
- You can start WIS on another system and display the WIS document by entering the document number [ gf5415p125603tm ] in the 'Contents' field.


1.1. No further information available.


1.2. Arrangement of relays N10/1 (Driver-side SAM control unit with fuse and relay module)
Note

- WIS is not available on this system.
- It is not possible to display the requested WIS document [ gf5415p125703tm ].
- You can start WIS on another system and display the WIS document by entering the document number [ gf5415p125703tm ] in the 'Contents' field.


1.2. No further information available.


1.3. Guided test
Signal wire Open circuit
Figure legend

- N10/1 (Driver-side SAM control unit with fuse and relay module)
- N10/1kL (Starter relay)
Special tools

- Test cable 266 589 01 63 00
- Socket box 129 589 00 21 00
Test sequence

- Switch off ignition.
- Connect 35-pole socket box at engine wiring harness.
- Remove relay N10/1kL (Starter relay).
- Measurement is performed at the contact slot of component N10/1kL (Starter relay).
- Measure resistance with multimeter between socket (F.44) 14 of the 35-pole socket box tester and socket (N10/1kL) 2
Specified value

- Resistor< 1,5ohms
Question

- Is the measurement value OK?







YES
The measurement value is OK.Possible cause and remedy

- In the event of stored faults with a high fault frequency count or in the event of customer complaints, check lines and connectors for loose contact and corrosion..
- Test relay N10/1kL (Starter relay), replace if necessary.
End of test

NO
The measurement value is not OK.Possible cause and remedy

- Test wiring/ plug connection.
End of test

1.4. Test relay N10/1kL (Starter relay).
Test sequence

- Remove relay N10/1kL (Starter relay).
- Measure resistance with multimeter between pins (87)88a and (30) 88
Specified value

- Resistor:>30 kohms
Note

- The terminal diagram can be opened using button F7.
Question

- Is the measurement value OK?












1.4. No further information available.
