CL 65 AMG (216.379) V12-6.0L Turbo (275.982)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Description and Operation
>>

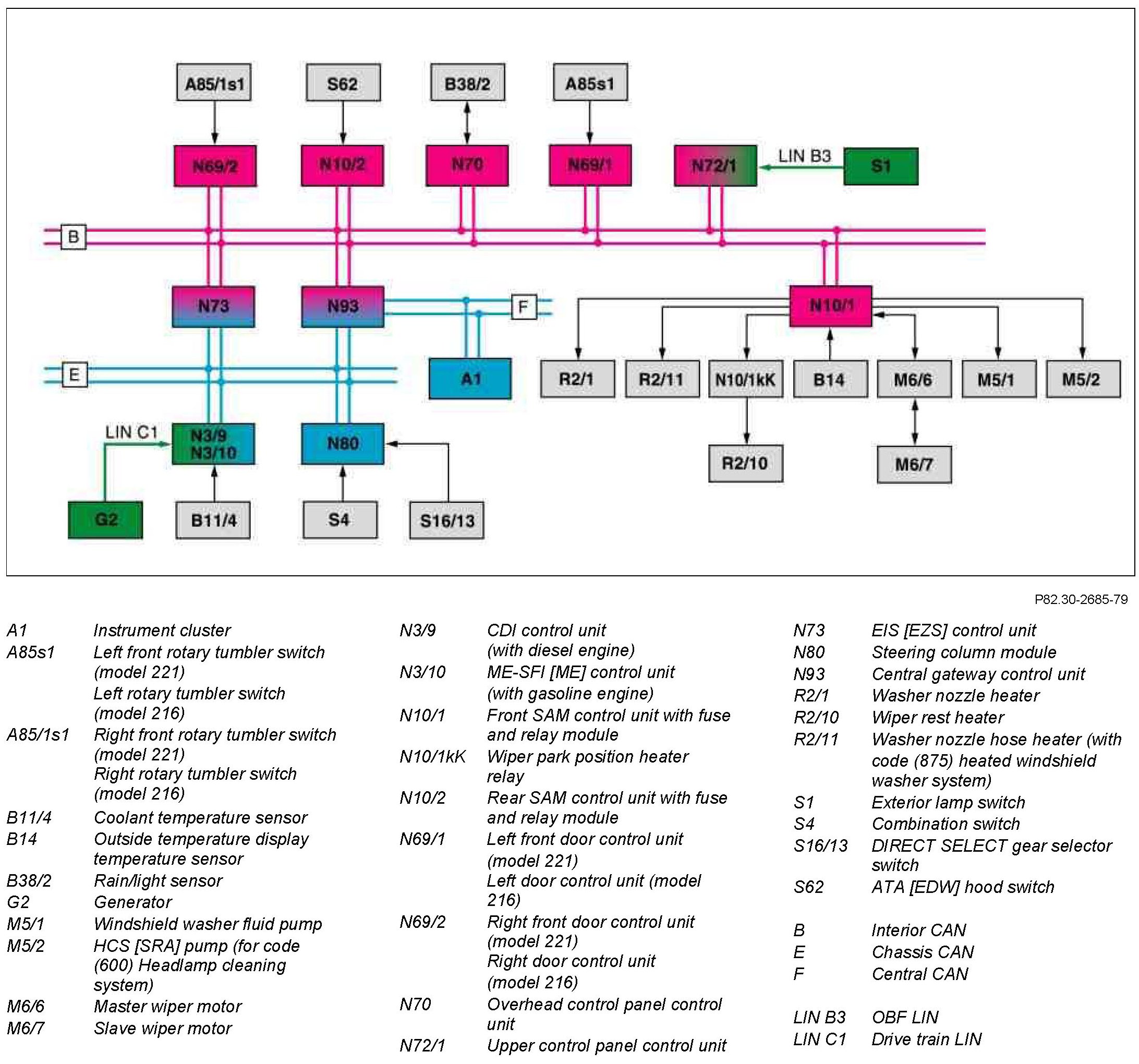

GF82.30-P-0003-02SX Wiper System (WSA), Networking of Components
GF82.30-P-0003-02SX Wiper System (WSA), Networking of Components
GF82.30-P-0003-02SX Wiper System (WSA), Networking Of Components
Component Identification:
