Mercedes Benz
>>
2008
>>
CL 65 AMG (216.379) V12-6.0L Turbo (275.982)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Sensors and Switches - Steering and Suspension
>>
Sensors and Switches - Suspension
>>
Suspension Control Pressure Sensor/Switch
>>
Locations
>>
ABC Pressure Sensor, Left, Front
ABC Pressure Sensor, Left, Front

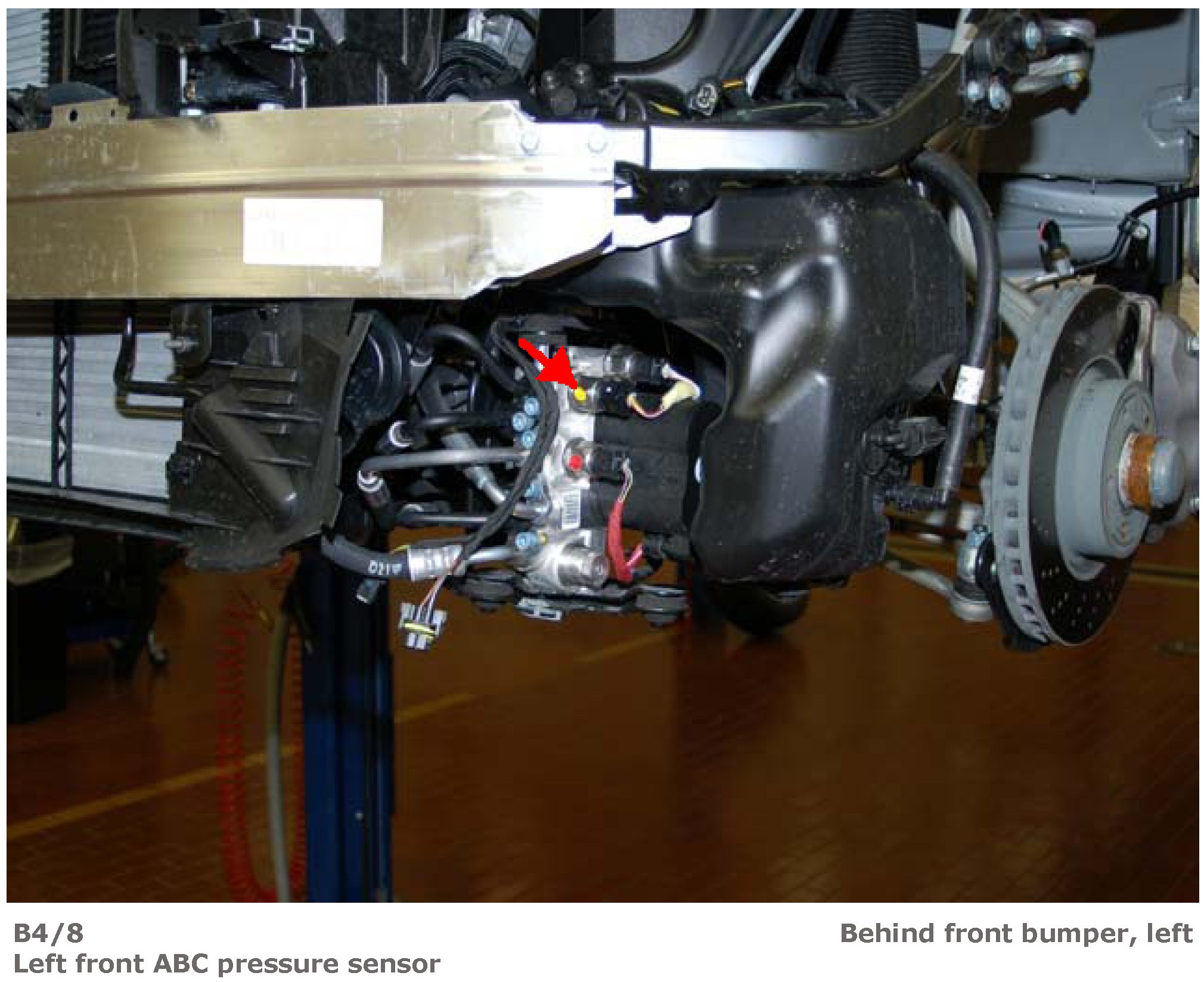

Left Front ABC Pressure Sensor (View 1):

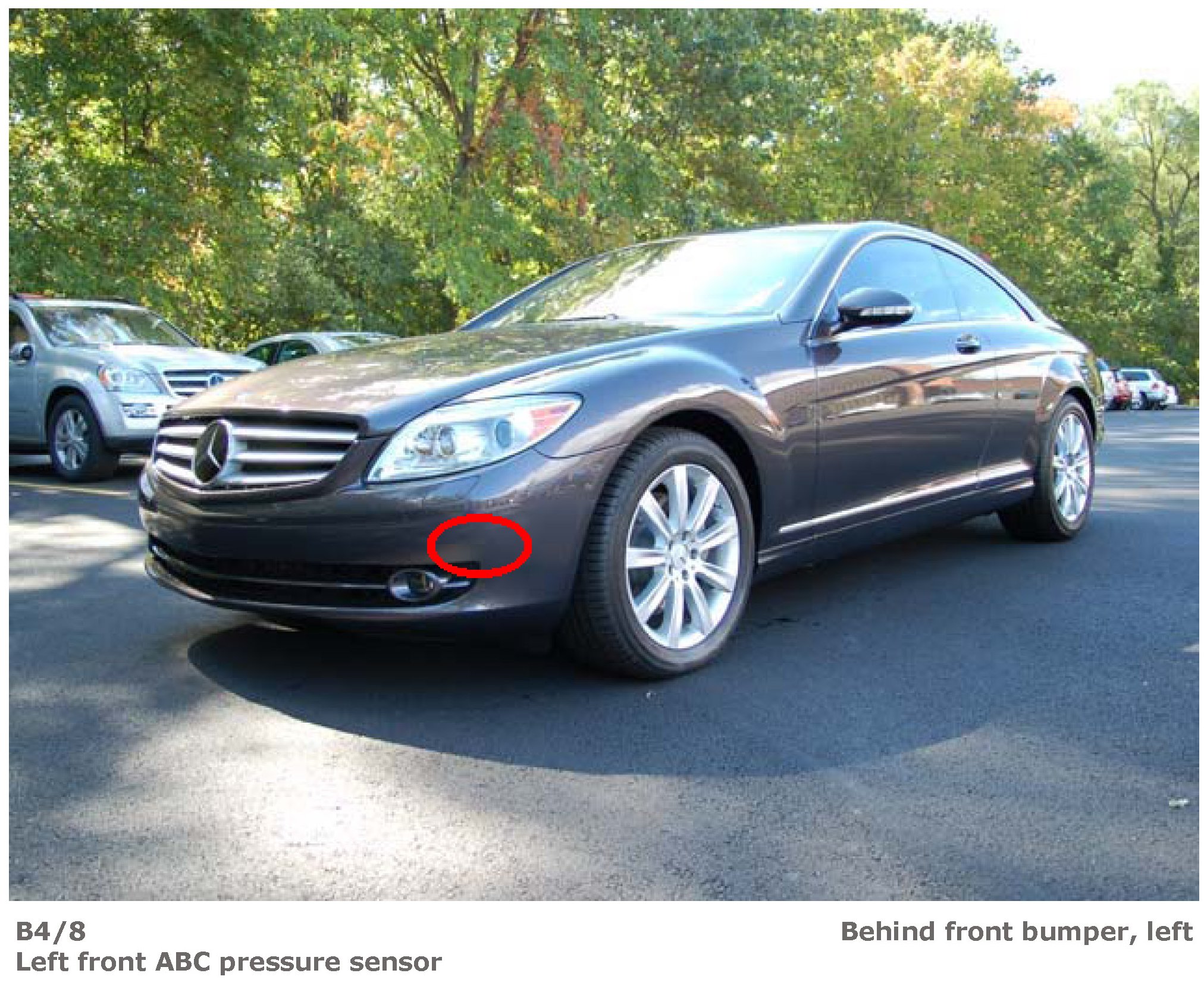

Left Front ABC Pressure Sensor (View 2):

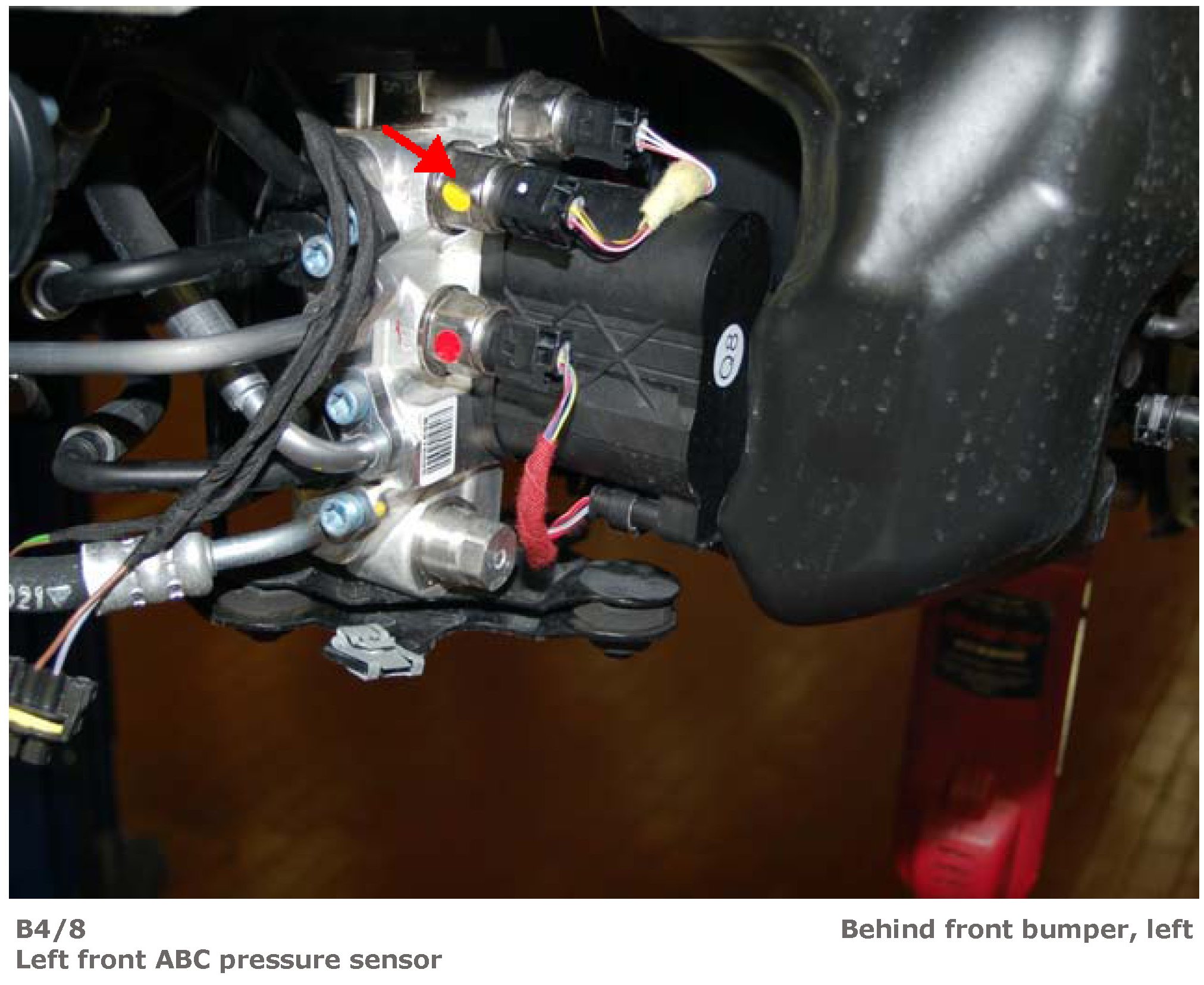

Left Front ABC Pressure Sensor (View 3):
