AR54.15-P-1330SX Remove/Install Front Prefuse Box
AR54.15-P-1330SX Remove/Install Front Prefuse Box
AR54.15-P-1330SX Remove/install Front Prefuse Box

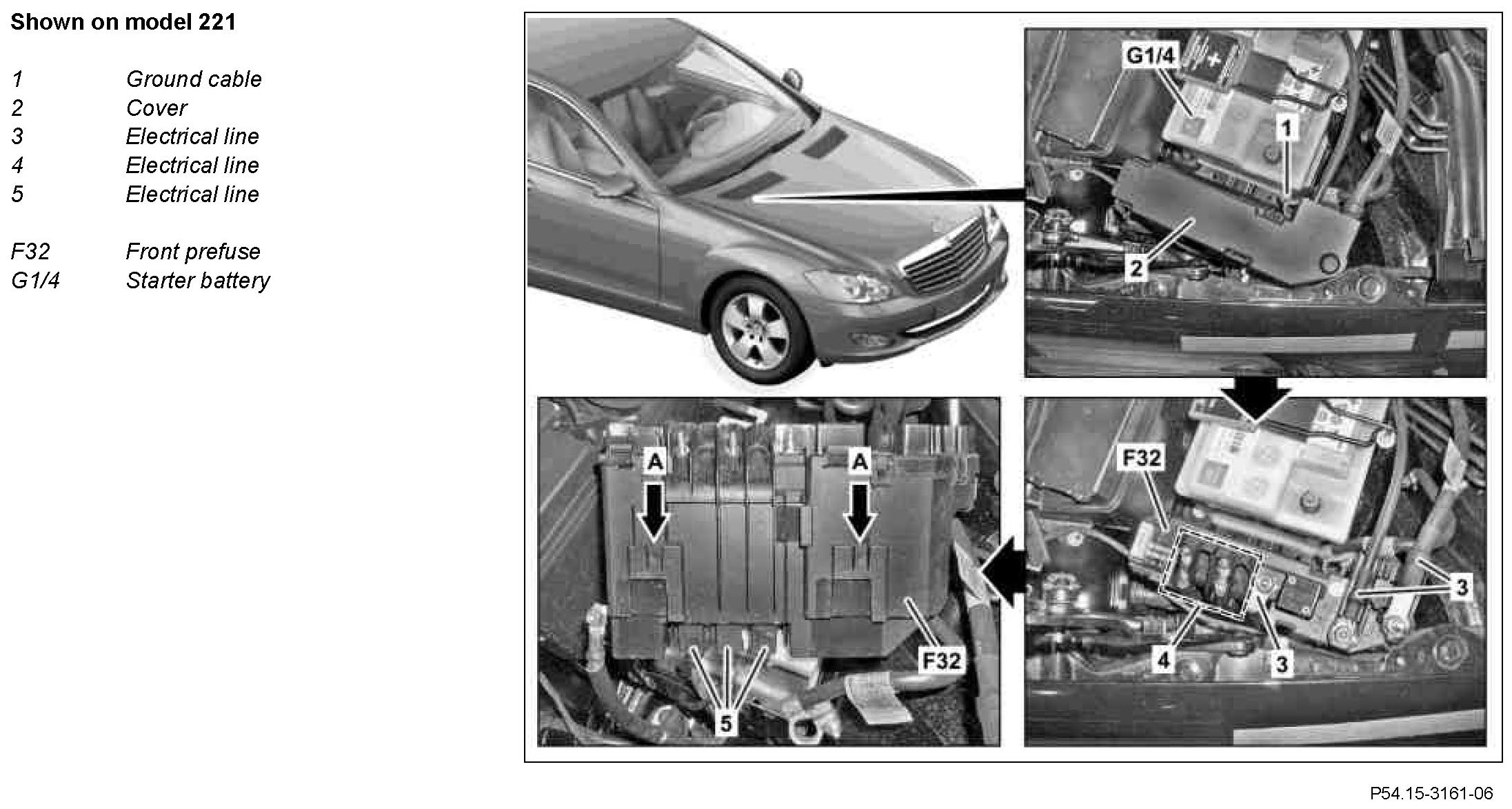

Component Identification:

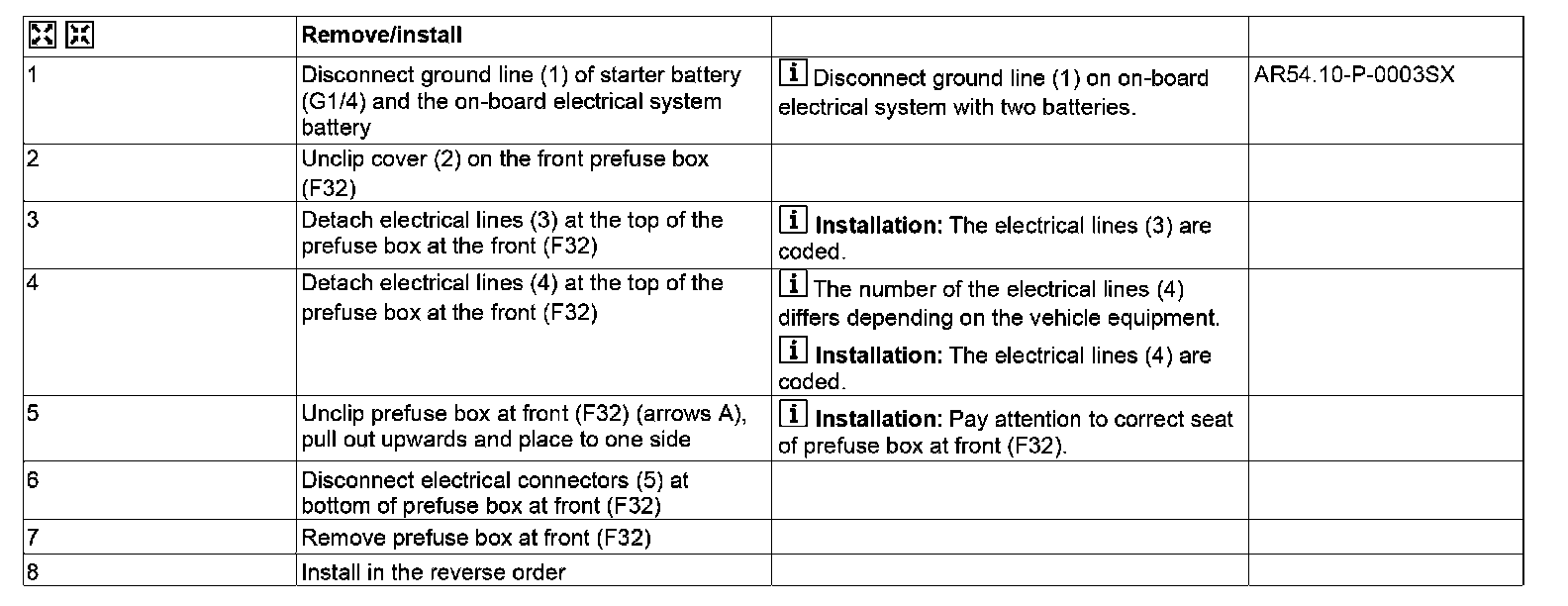

Steps 1-8:
