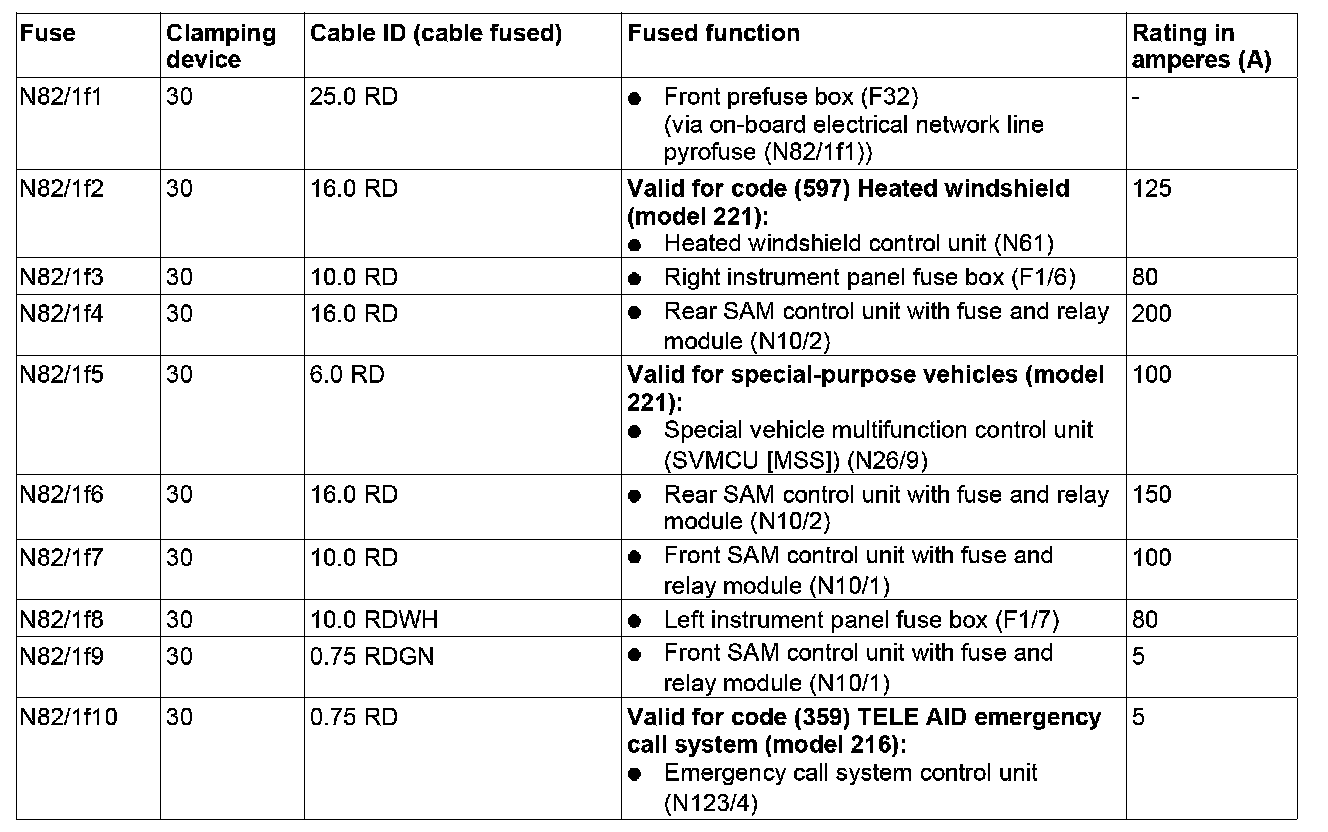

GF54.15-P-1256-17SX Fuse Assignment of the Vehicle Power Supply Control Unit



GF54.15-P-1256-17SX Fuse Assignment Of The Vehicle Power Supply Control Unit
- up to model year 08

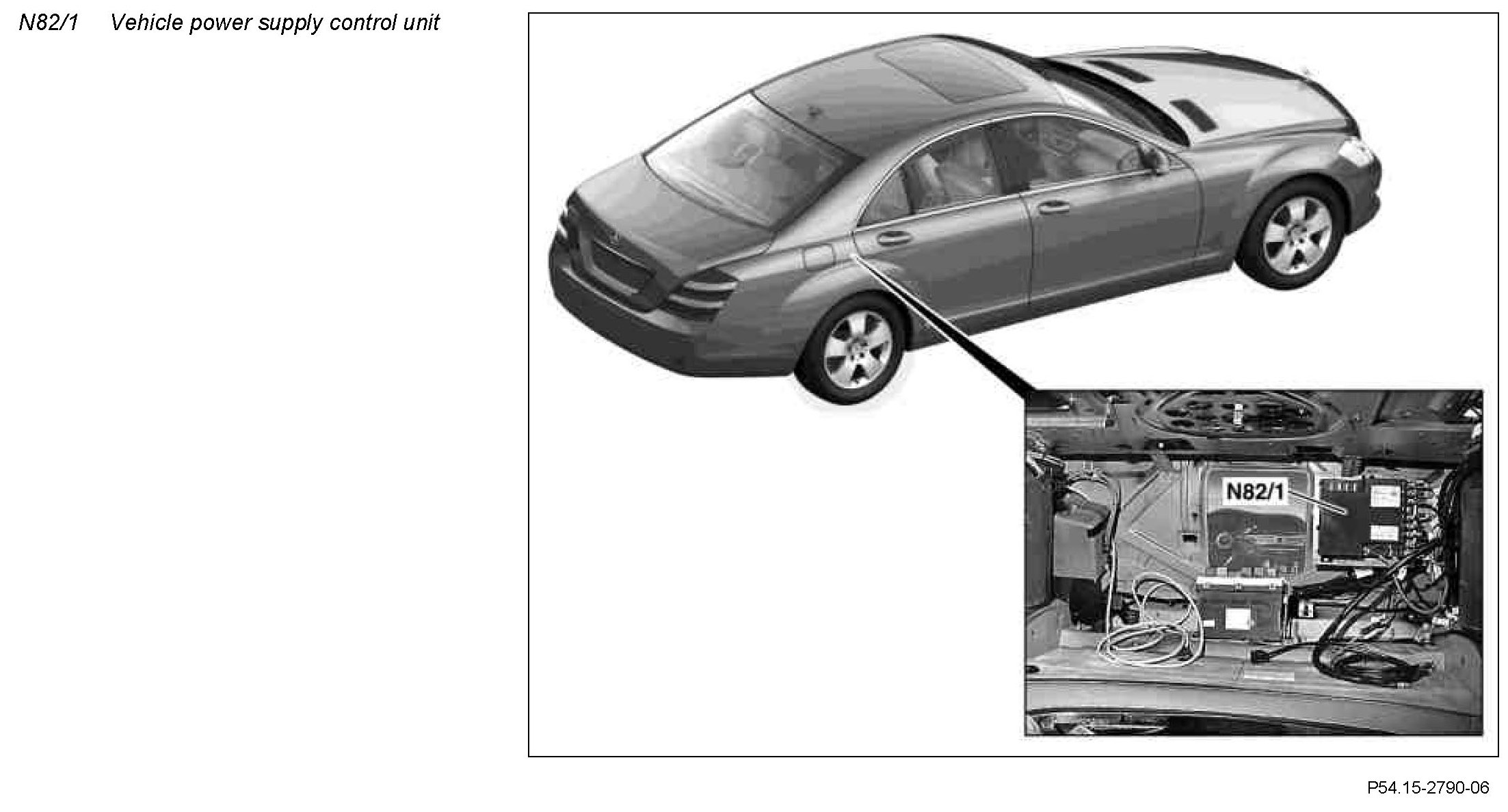

Component Identification:
