GF54.15-P-1256-13SX Fuse Assignment of Fuse Box In Left of Cockpit

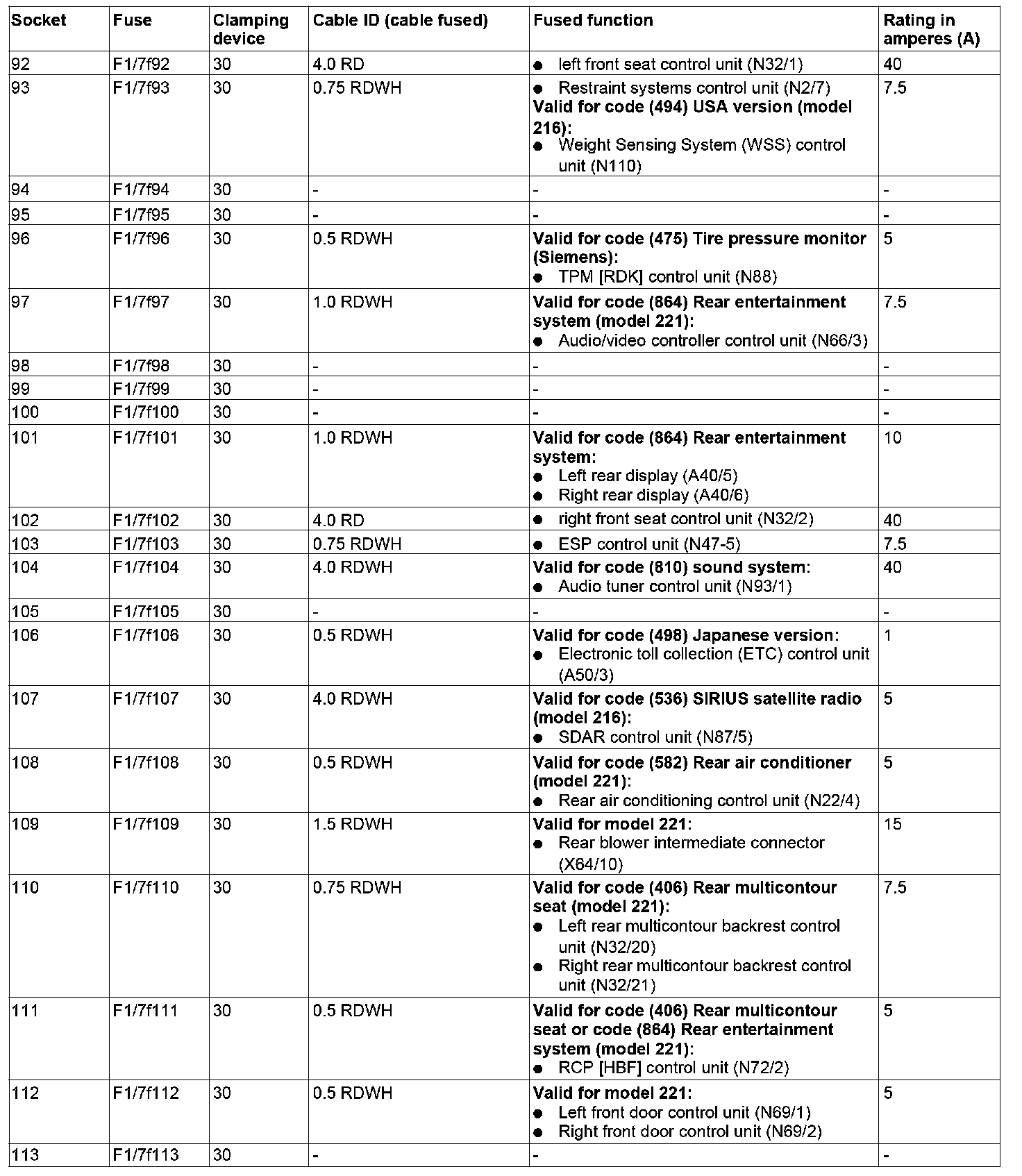

GF54.15-P-1256-13SX Fuse assignment of fuse box in left of cockpit
- up to model year 08

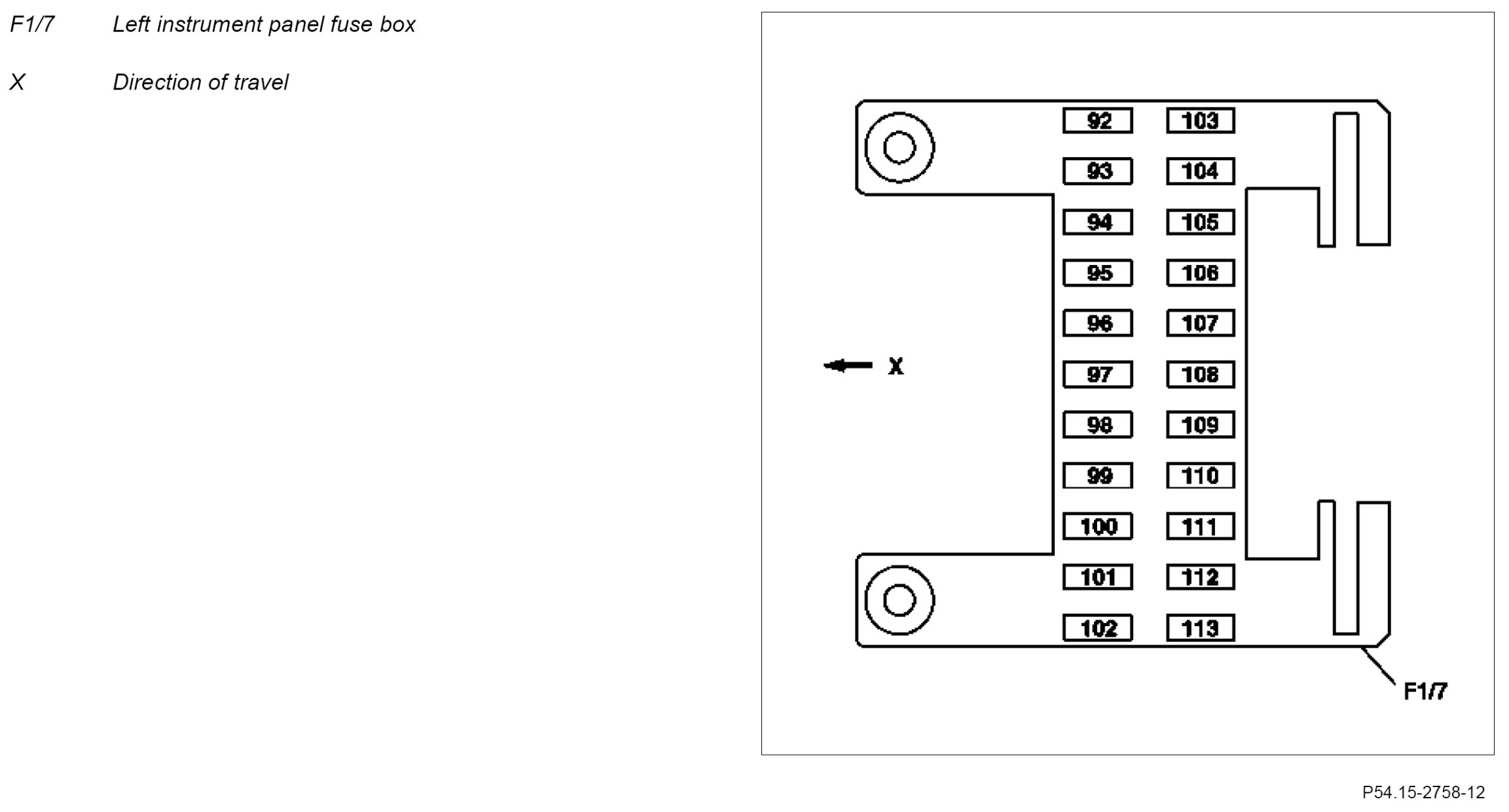

Component Identification:
