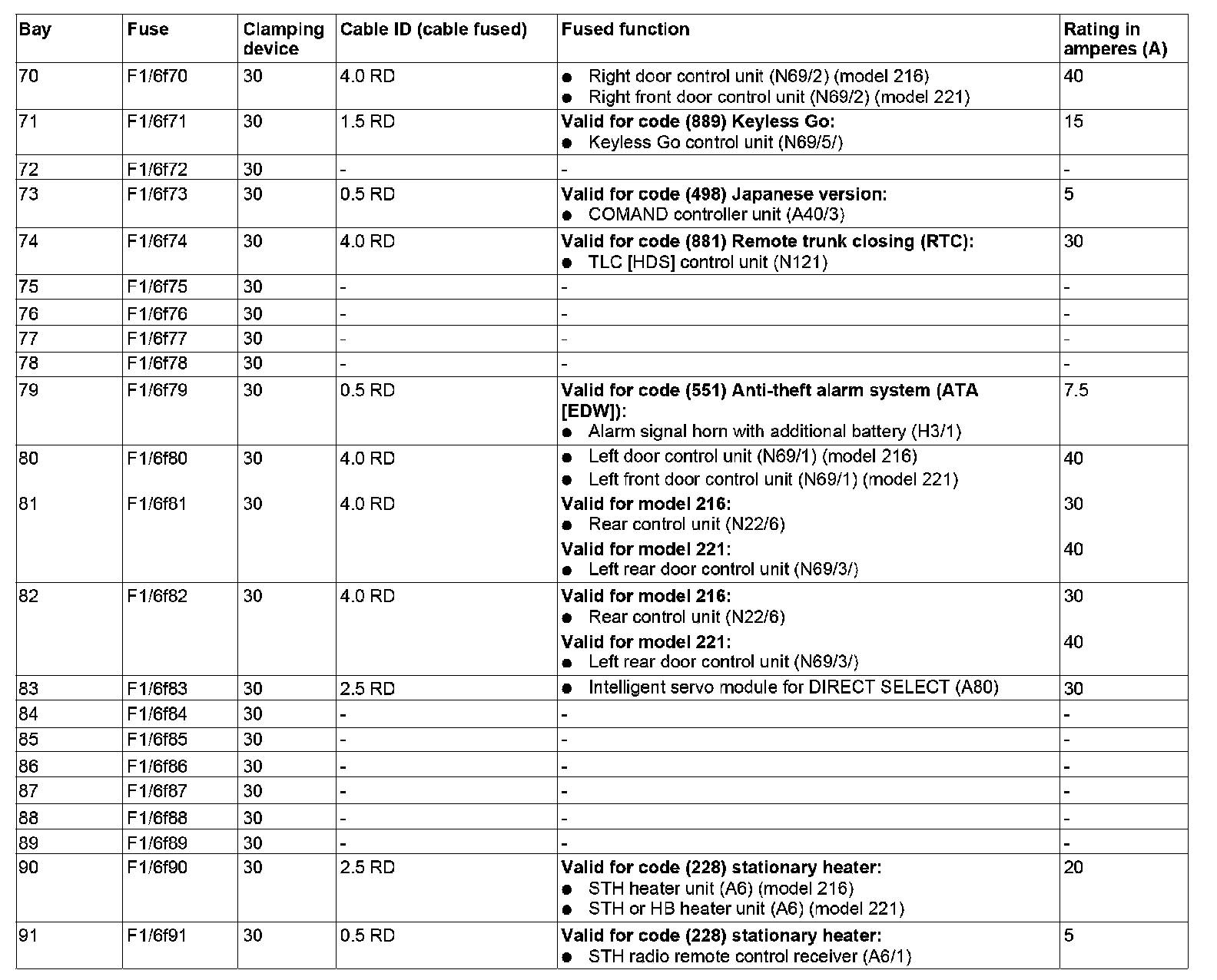

GF54.15-P-1256-12SX Fuse Assignment of Fuse Box In Right of Cockpit



GF54.15-P-1256-12SX Fuse Assignment Of Fuse Box In Right Of Cockpit
- up to model year 08

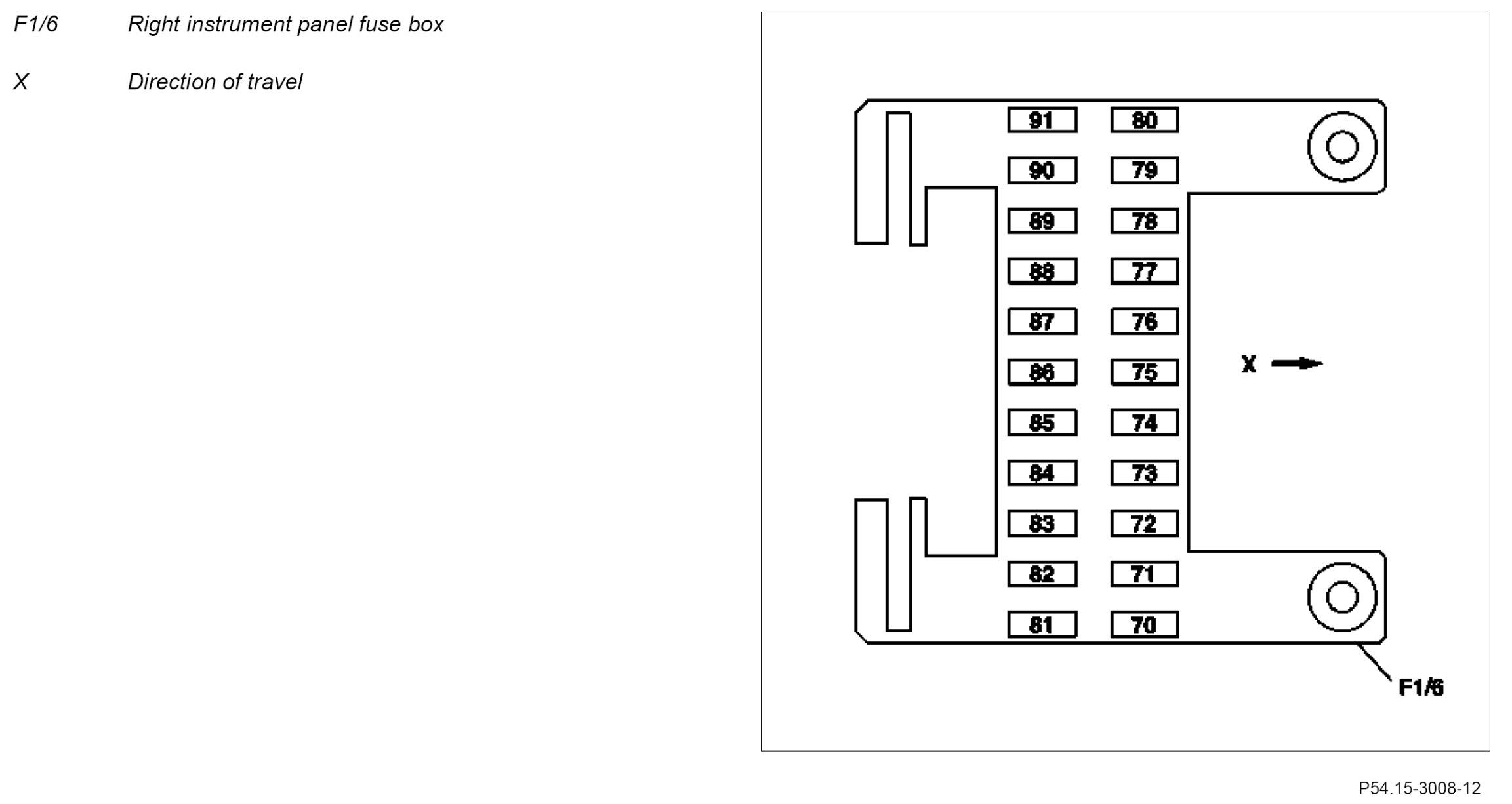

Component Identification:
