AR54.10-P-0009SX Remove/Install On-Board Electrical System Battery
AR54.10-P-0009SX Remove/Install On-Board Electrical System Battery
AR54.10-P-0009SX Remove/Install On-Board Electrical System Battery
Component Identification:

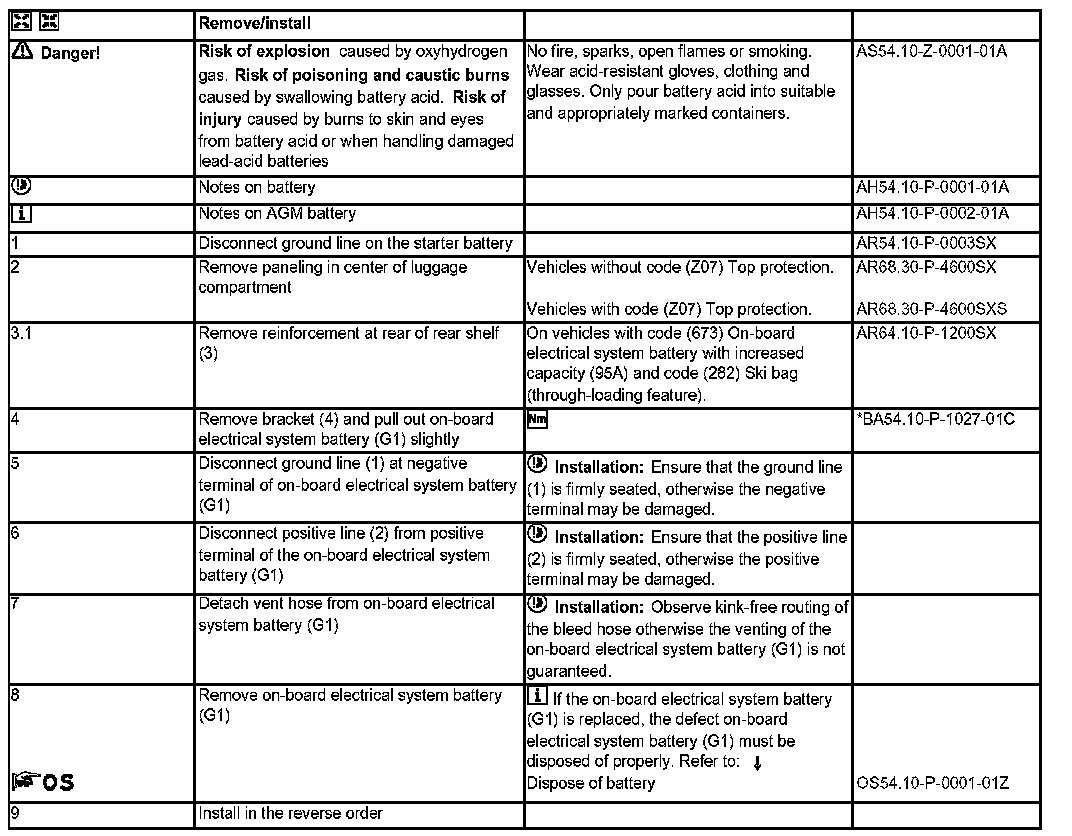

Steps 1 - 9:

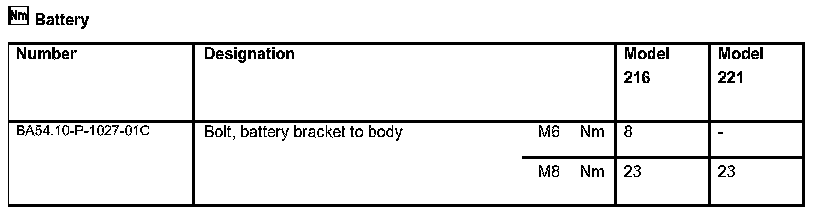

Battery:
