GF91.60-P-4060SCU Front Passenger Seat Pressure Sensor, Component Description

GF91.60-P-4060SCU Front Passenger Seat Pressure Sensor, Component Description
- with CODE (494) USA version

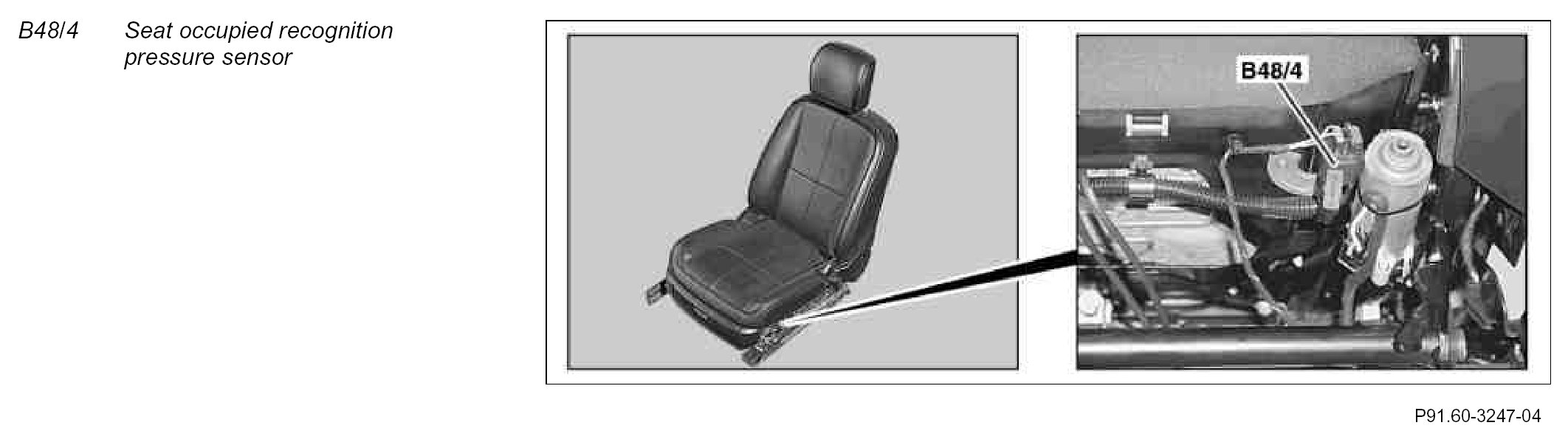

Component Identification:

Location
The seat occupied recognition pressure sensor is located beneath the seat cushion at the front passenger seat cushion frame.

Task
The seat occupied recognition pressure sensor determines the weight on the front passenger seat by means of a pressure measurement from a seat mat filled with silicone.

The value is used by the Weight Sensing System (WSS) control unit (N110) for determining the occupancy status of the front passenger seat.
