GF91.60-P-4033SX Driver-Side/Front Passenger Frontal Acceleration Sensor Component Description

GF91.60-P-4033SX Driver-side/Front Passenger Frontal Acceleration Sensor Component Description

Component Identification:

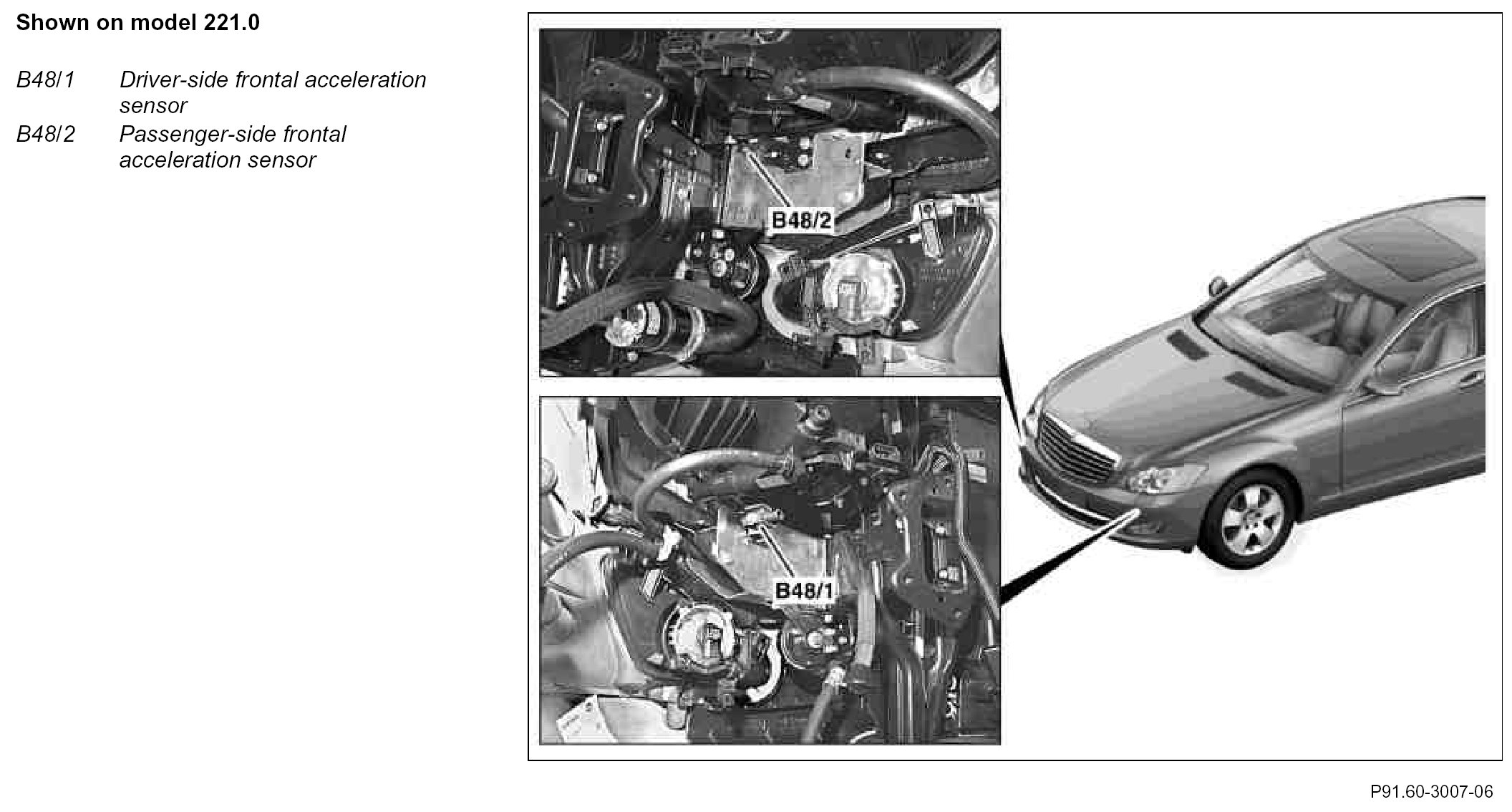

Location
The frontal acceleration sensors can be found to the right and left of the front module.

Task
The frontal acceleration sensors determine the acceleration value of the vehicle front for the left and right sides of the vehicle. The restraint systems control unit (N2/7) uses these values to decide whether or not the emergency tensioning retractor or airbag unit are deployed.

The frontal acceleration sensors perform a self-test. If the self-test fails 4 times, the relevant frontal acceleration sensor is reported as defective.

Upon request of the restraint systems control unit, the measuring range and the sensitivity of the frontal acceleration sensors are transmitted, and it is checked whether they match the programmed equipment. The production data can be output via STAR DIAGNOSIS.
