Refrigerant Pressure Sensor / Switch: Description and Operation

GF83.40-P-2193SX Refrigerant Pressure Sensor, Component Description

Component Identification:

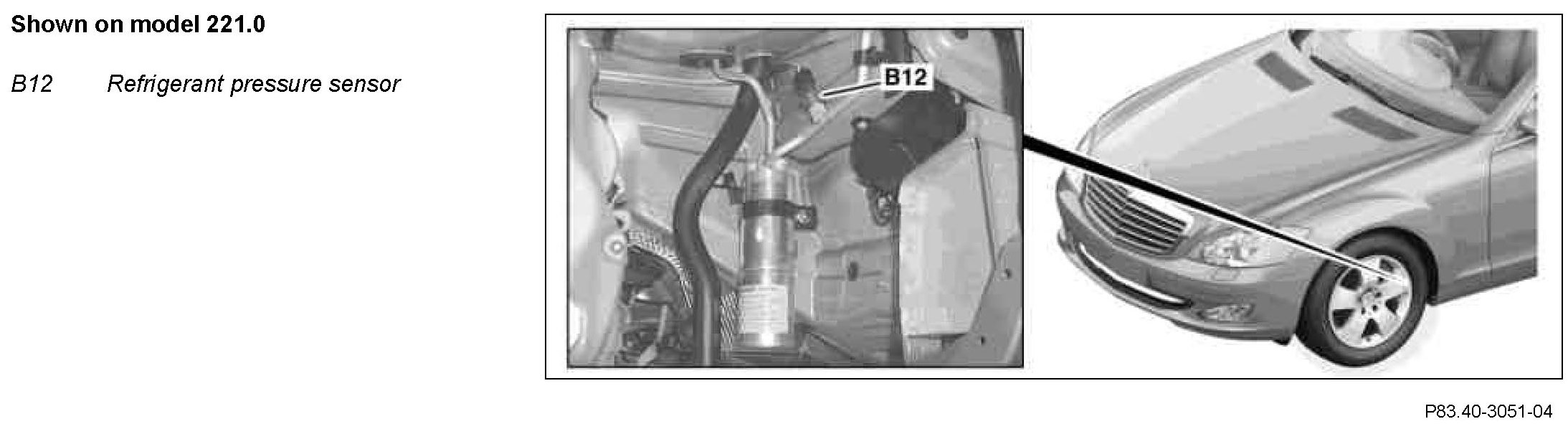

Location
The refrigerant pressure sensor is located in the rear in the left front wheelhouse.

Task
The refrigerant pressure sensor is used for measuring the refrigerant pressure.

The value determined by the refrigerant pressure sensor is directly read in by the AAC [KLA] control unit (N22/1).
